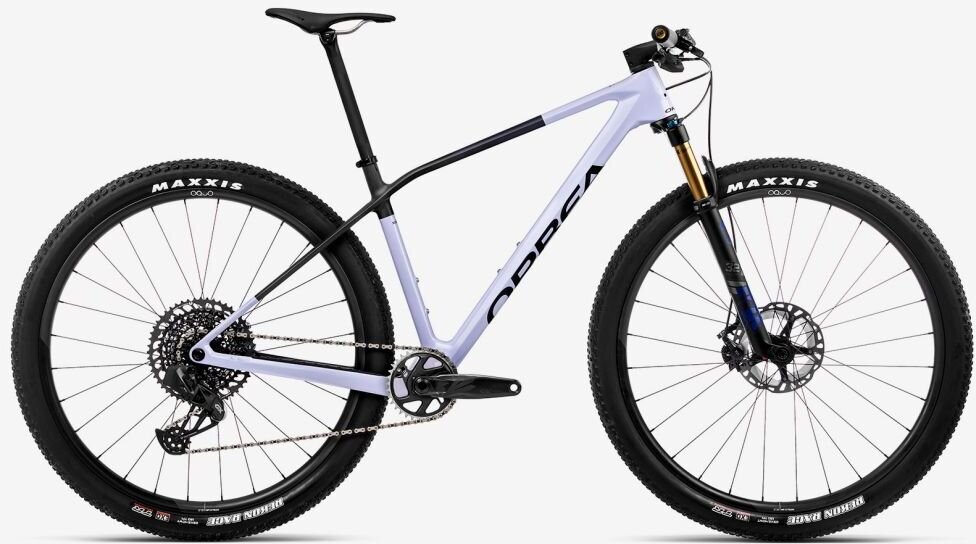

Orbea Alma M Pro

Orbea Alma M Pro
  • Color: Digital Lavender (Gloss)/Carbon Raw (Matt)
  • Color: Wine Red Carbon View (Gloss)/Carbon Raw (Matt)
$5,999.00
Color: Digital Lavender (Gloss)/Carbon Raw (Matt)
Size: Select size
Please select options Unavailable

Details

Performance gains can be found everywhere and obsession is part of the game. How far is too far? For as long as we have had goals, competition and a creative spirit, we have pushed ourselves to win. Once victory is tasted, it becomes an obsession to be the best. You feel it in your heart, lungs and legs – you can sense it in our bikes. Only by sweating the smallest details and pushing past what seems possible can we achieve our ultimate goals.

Spirit Fork
A rigid fork isn't for everyone, but it might be perfect for you and that's enough for us – in these cases a carbon fork tuned specifically for your Alma isn't just "nice," it becomes essential. The Spirit fork is compatible with just about any tapered headtube hardtail and is available through the MyO program… so pick any of a dozen colors in hundreds of color combinations to match your trusty rig.

ICR
Internal Cable Routing is carefully guided along the best path with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

Dynamic Structure
The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it, resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.

OC Cockpit
The Orbea XC Family sports an all-new integrated look with a completely unique OC headset/spacer/stem design. The system includes an optional computer mount that is compatible with all major brands using standard adapters. OC component collaboration is a detail that completes the high-end feel of our modern XC bikes.

Geometry

Sizes:
SIZESMLXL
1 - SEAT TUBE (C-T) 400 445 483 533
2 - TOP TUBE (EFF) 559 593 618 647
3 - HEAD TUBE 90 100 110 125
4 - CHAINSTAY 430 430 430 430
5 - BB HEIGHT 309 309 309 309
6 - BB DROP 61 61 61 61
7 - WHEELBASE 1083 1118 1144 1175
8 - HEAD ANGLE 68 68 68 68
9 - SEAT ANGLE 74.5 74.5 74.5 74.5
10 - STANDOVER 693 729 749 819
11 - REACH 395 426 448 474
12 - STACK 593 602 612 625
13 - FORK LENGTH 500.8 500.8 500.8 500.8
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" S
165-180 65.0"-70.9" M
178-190 70.1"-74.8" L
185-198 72.8"-78.0" XL

Sizes:
SIZECRANKSTEMHANDLEBAR
S 170 60 740
M 175 75 740
L 175 75 740
XL 175 90 740

Specs

Frame Orbea Alma Carbon OMX, Boost 12x148, PF BB, Internal cable routing
Fork Fox 32 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Wheels OQUO Mountain Performance MP30TEAM Carbon
Tires Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Crankset SRAM GX Eagle Dub Lunar Boost 34t
Shifters SRAM GX Eagle AXS
Rear Derailleur SRAM GX1 Eagle AXS Lunar
Cassette/Freewheel SRAM XG-1275 Eagle 10-52t 12-Speed
Chain SRAM GX Eagle 12-Speed
Chainguide: Orbea Alma Carbon OMR & OMX. Compatible up to 36T
Brakes Shimano XT M8100 Hydraulic Disc
Handlebars OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Stem OC Mountain Performance MP20, -8º
Headset Acros 1-1/8 - 1-1/2" Semi-intergated Block Lock
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm
Pedals Sold separately
Accessories & Extras Remote Lockout: Fox Lockout, 2 Position, Single I-Spec EV
Battery: SRAM Powerpack

* Subject to change without notice.

Part Numbers

Option UPC MPN
Digital Lavender (Gloss)/Carbon Raw (Matt) / Small 08434446244551 N22716LY
Digital Lavender (Gloss)/Carbon Raw (Matt) / Medium 08434446244582 N22718LY
Digital Lavender (Gloss)/Carbon Raw (Matt) / Large 08434446244612 N22719LY
Digital Lavender (Gloss)/Carbon Raw (Matt) / X-Large 08434446244643 N22721LY
Wine Red Carbon View (Gloss)/Carbon Raw (Matt) / Small 08434446244568 N22716LZ
Wine Red Carbon View (Gloss)/Carbon Raw (Matt) / Medium 08434446244599 N22718LZ
Wine Red Carbon View (Gloss)/Carbon Raw (Matt) / Large 08434446244629 N22719LZ
Wine Red Carbon View (Gloss)/Carbon Raw (Matt) / X-Large 08434446244650 N22721LZ
