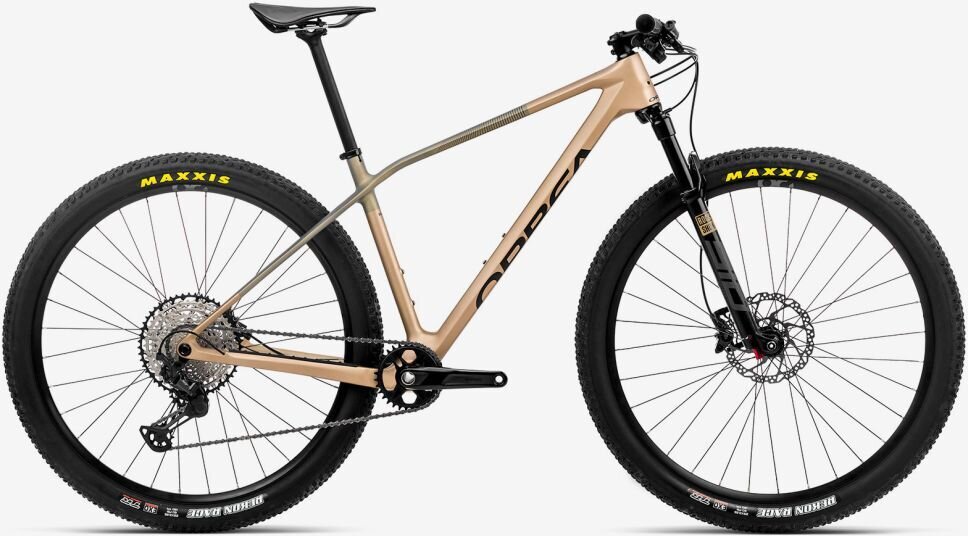

Orbea Alma M30

Orbea Alma M30
  • Color: Baobab Brown/Green Gold (Matt)
  • Color: Halo Silver (Gloss)/Shark Grey (Matt)
  • Color: Powder Black/Black (Matt)
$3,099.00
Color: Baobab Brown/Green Gold (Matt)
Size: Select size
Please select options Unavailable

Details

Performance gains can be found everywhere and obsession is part of the game. How far is too far? For as long as we have had goals, competition and a creative spirit, we have pushed ourselves to win. Once victory is tasted, it becomes an obsession to be the best. You feel it in your heart, lungs and legs – you can sense it in our bikes. Only by sweating the smallest details and pushing past what seems possible can we achieve our ultimate goals.

Spirit Fork
A rigid fork isn't for everyone, but it might be perfect for you and that's enough for us – in these cases a carbon fork tuned specifically for your Alma isn't just "nice," it becomes essential. The Spirit fork is compatible with just about any tapered headtube hardtail and is available through the MyO program… so pick any of a dozen colors in hundreds of color combinations to match your trusty rig.

ICR
Internal Cable Routing is carefully guided along the best path with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

Dynamic Structure
The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it, resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.

OC Cockpit
The Orbea XC Family sports an all-new integrated look with a completely unique OC headset/spacer/stem design. The system includes an optional computer mount that is compatible with all major brands using standard adapters. OC component collaboration is a detail that completes the high-end feel of our modern XC bikes.

Geometry

Sizes:
SIZESMLXL
1 - SEAT TUBE (C-T) 400 445 483 533
2 - TOP TUBE (EFF) 559 593 618 647
3 - HEAD TUBE 90 100 110 125
4 - CHAINSTAY 430 430 430 430
5 - BB HEIGHT 309 309 309 309
6 - BB DROP 61 61 61 61
7 - WHEELBASE 1083 1118 1144 1175
8 - HEAD ANGLE 68 68 68 68
9 - SEAT ANGLE 74.5 74.5 74.5 74.5
10 - STANDOVER 693 729 749 819
11 - REACH 395 426 448 474
12 - STACK 593 602 612 625
13 - FORK LENGTH 500.8 500.8 500.8 500.8
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" S
165-180 65.0"-70.9" M
178-190 70.1"-74.8" L
185-198 72.8"-78.0" XL

Sizes:
SIZECRANKSTEMHANDLEBAR
S 170 60 740
M 175 75 740
L 175 75 740
XL 175 90 740

Specs

Frame Orbea Alma Carbon OMR, Boost 12x148, PF BB, Internal cable routing.
Fork RockShox SID SL RL remote Q15X110 Boost DebonAir 100mm
Wheels Alloy, Tubeless, 25c, 32H
Tires Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Crankset Shimano MT611 32t
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars Alloy, 31.8mm, Flat, 740mm, Sweep 9
Stem Alloy forged, -7º
Headset FSA 1-1/8 - 1-1/2" Integrated
Seatpost Alloy, forged head, 27.2mm, Setback 0
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Pedals Sold separately
Accessories & Extras Remote Lockout: Rock Shox OneLoc

* Subject to change without notice.

Part Numbers

Option UPC MPN
Baobab Brown/Green Gold (Matt) / Small 08434446245602 N22116MB
Baobab Brown/Green Gold (Matt) / Medium 08434446245633 N22118MB
Baobab Brown/Green Gold (Matt) / Large 08434446245664 N22119MB
Baobab Brown/Green Gold (Matt) / X-Large 08434446245695 N22121MB
Halo Silver (Gloss)/Shark Grey (Matt) / Small 08434446245619 N22116MD
Halo Silver (Gloss)/Shark Grey (Matt) / Medium 08434446245640 N22118MD
Halo Silver (Gloss)/Shark Grey (Matt) / Large 08434446245671 N22119MD
Halo Silver (Gloss)/Shark Grey (Matt) / X-Large 08434446245701 N22121MD
Powder Black/Black (Matt) / Small 08434446245596 N22116MA
Powder Black/Black (Matt) / Medium 08434446245626 N22118MA
Powder Black/Black (Matt) / Large 08434446245657 N22119MA
Powder Black/Black (Matt) / X-Large 08434446245688 N22121MA
