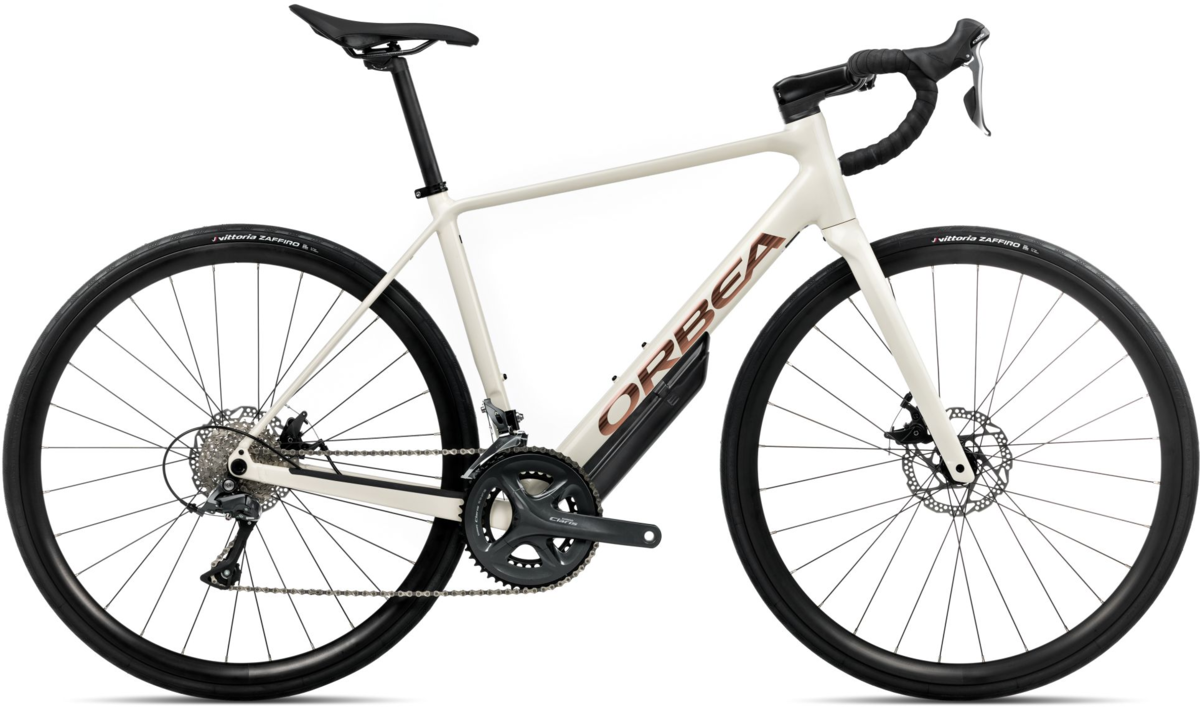

Orbea Avant H60

Orbea Avant H60
  • Color: Ivory White - Titan Bronze (Gloss)
  • Color: Slate Blue (Matt) - Halo Silver (Gloss)
  • Color: Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
$1,699.00
Color:
Size: Select size
Wheel Size: 700c

Details

A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

Geometry Chart:
474951535557601
Seat Tube (C-T) 420 445 470 495 520 545 575 2
Top Tube (EFF) 515 531 544 558 570 587 599 3
Head Tube 111 130 149 169 191 211 231 4
Chainstay 420 420 420 420 420 420 420 5
BB Drop 78 78 78 78 76 76 76 6
BB Height 263 263 263 263 265 265 265 7
Wheelbase 996 1003 1010 1019 1030 1042 1051 8
Head Angle 70,5 71 71,5 71,8 72 72,2 72,5 9
Seat Angle 74,5 74 73,75 73,75 73,75 73,2 73,2 10
Rake - - - - - - - 11
Standover 673 699 723 749 777 802 831 12
Reach 370 375 380 385 391 398 404 13
Stack 525 545 565 585 605 625 645
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Fork Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 19c, 28H
Axles Front : Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Zafiro V Rigid bead 700x28c
Crankset Shimano Claris R2000 34x50t
Shifters Shimano Claris ST-R2000
Front Derailleur Shimano Claris FD-R2000-F
Rear Derailleur Shimano Claris RD-R2000-GS
Cassette/Freewheel Shimano HG50 11-32t 8-Speed
Chain KMC X8
Brakes Jagwire RideRever Mechanical Disc
Handlebars OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Tape/Grips Orbea Eva
Stem OC Road Performance RP22, -5º
Seatpost SP 0.6, Alloy, 27.2mm, Setback 20
Saddle Fizik Aliante R5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ivory White - Titan Bronze (Gloss) / 47cm / 700c 08434446814075 S10147BN
Ivory White - Titan Bronze (Gloss) / 49cm / 700c 08434446814105 S10149BN
Ivory White - Titan Bronze (Gloss) / 51cm / 700c 08434446814136 S10151BN
Ivory White - Titan Bronze (Gloss) / 53cm / 700c 08434446814167 S10153BN
Ivory White - Titan Bronze (Gloss) / 55cm / 700c 08434446814198 S10155BN
Ivory White - Titan Bronze (Gloss) / 57cm / 700c 08434446814228 S10157BN
Ivory White - Titan Bronze (Gloss) / 60cm / 700c 08434446814259 S10160BN
Slate Blue (Matt) - Halo Silver (Gloss) / 47cm / 700c 08434446814051 S10147BB
Slate Blue (Matt) - Halo Silver (Gloss) / 49cm / 700c 08434446814082 S10149BB
Slate Blue (Matt) - Halo Silver (Gloss) / 51cm / 700c 08434446814112 S10151BB
Slate Blue (Matt) - Halo Silver (Gloss) / 53cm / 700c 08434446814143 S10153BB
Slate Blue (Matt) - Halo Silver (Gloss) / 55cm / 700c 08434446814174 S10155BB
Slate Blue (Matt) - Halo Silver (Gloss) / 57cm / 700c 08434446814204 S10157BB
Slate Blue (Matt) - Halo Silver (Gloss) / 60cm / 700c 08434446814235 S10160BB
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 47cm / 700c 08434446814068 S10147BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 49cm / 700c 08434446814099 S10149BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 51cm / 700c 08434446814129 S10151BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 53cm / 700c 08434446814150 S10153BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 55cm / 700c 08434446814181 S10155BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 57cm / 700c 08434446814211 S10157BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 60cm / 700c 08434446814242 S10160BD
