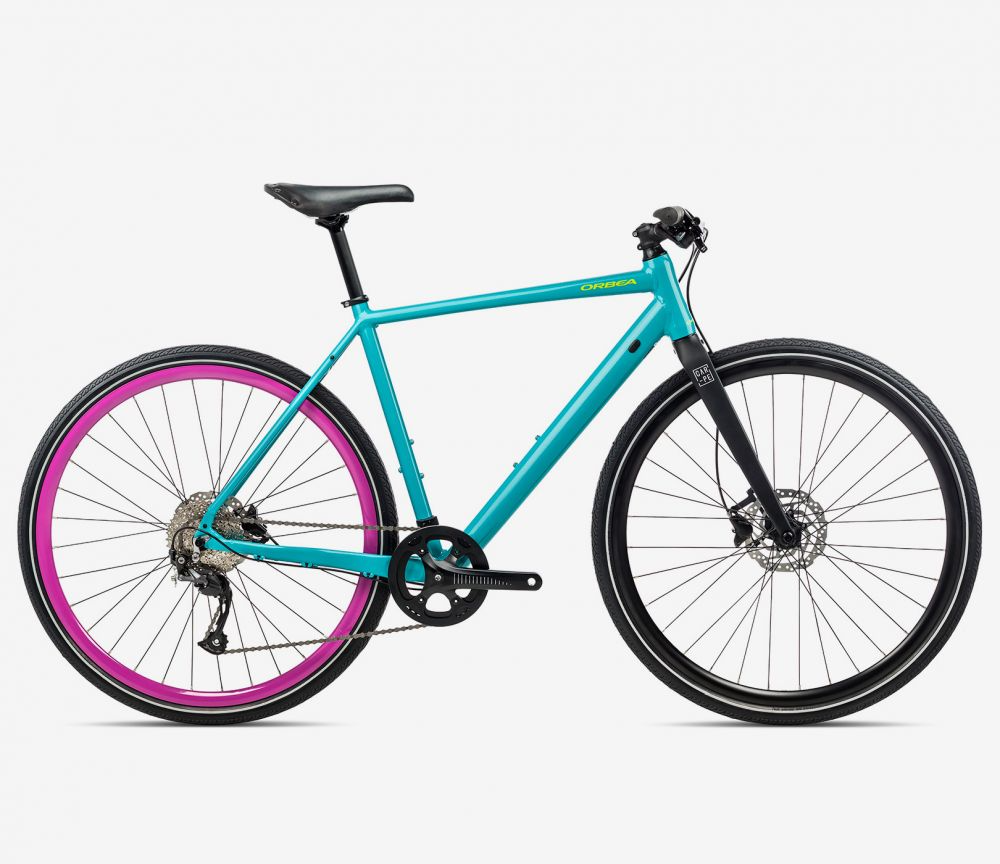

Orbea Carpe 20

Orbea Carpe 20
  • Color: Blue (Gloss)/Black(Matt)
  • Color: Metallic Dark Red (Gloss)
  • Color: Metallic Night Black (Gloss)
  • Color: Urban Green (Gloss)/Black (Matt)
$999.00
Color: Blue (Gloss)/Black(Matt)
Size: Select size
Please select options Unavailable

Details

SEIZE THE DAY, ANY DAY.

You have a style and you know what fits. The Carpe is a part of you. Carpe is lightweight, versatile and comfortable. There is a beauty to the handlebars, the smoothness of a gear change, and the parts working in harmony. You'll like your city streets even more while moving over them on two wheels. Carpe delivers the freedom you've been waiting for. Throw a leg over and enjoy.

Geometry

Sizes:
SIZEX-SMALLSMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) (mm) 430 480 525 555 580
2 - TOP TUBE (EFF) (mm) 521 546 559 580 601
3 - HEAD TUBE (mm) 109 127 150 170 200
4 - CHAINSTAY (mm) 435 435 435 435 435
5 - BB HEIGHT (mm) 281 281 283 283 285
6 - BB DROP (mm) 70 70 68 68 66
7 - WHEELBASE (mm) 1021 1037 1052 1063 1075
8 - HEAD ANGLE (°) 71 71 71 71.5 72
9 - SEAT ANGLE (°) 75 74 74 73.5 73
10 - STANDOVER (mm) 738 768 800 824 852
11 - REACH (mm) 378 388 395 405 410
12 - STACK (mm) 535 552 571 592 625
13 - FORK LENGTH (mm) 400 400 400 400 400
14 - RAKE (mm) 51 51 51 51 51
Sizes:
SizeHeight (in)
X-Small 59.1" - 63.0"
Small 63.0" - 66.9"
Medium 66.9" - 70.9"
Large 70.9" - 74.8"
X-Large 74.8" - 78.7"

Specs

Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Fork Speed 400mm Alloy Flat mount
Wheels Orbea Airline Corsa Disc 700X19c
Axles Front: Safety Lock
Tires Kenda K1067 700x38C Reflective type+puncture protection
Crankset Orbea Alloy 42t
Shifters Shimano SL-M2010
Rear Derailleur Shimano Altus M2000 SGS Shadow
Cassette/Freewheel Sun Race CSM989 11-36t 9-Speed
Chain KMC X9
Brakes Shimano MT200 Hydraulic Disc
Handlebars Alloy 31.8mm Riser 640mm
Stem Alloy 31.8mm interface 7º
Headset VP-Z104PD 1-1/8" Semi-Cartridge
Seatpost Alloy 27.2 Offset 0
Saddle Fortune QF-3094
Pedals VP-229 Black with reflectors

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue (Gloss)/Black(Matt) / X-Small 08434446228940 N40243SC
Blue (Gloss)/Black(Matt) / Small 08434446228988 N40248SC
Blue (Gloss)/Black(Matt) / Medium 08434446229022 N40253SC
Blue (Gloss)/Black(Matt) / Large 08434446229060 N40256SC
Blue (Gloss)/Black(Matt) / X-Large 08434446229107 N40258SC
Metallic Dark Red (Gloss) / X-Small 08434446228933 N40243SB
Metallic Dark Red (Gloss) / Small 08434446228971 N40248SB
Metallic Dark Red (Gloss) / Medium 08434446229015 N40253SB
Metallic Dark Red (Gloss) / Large 08434446229053 N40256SB
Metallic Dark Red (Gloss) / X-Large 08434446229091 N40258SB
Metallic Night Black (Gloss) / X-Small 08434446228919 N40243S9
Metallic Night Black (Gloss) / Small 08434446228957 N40248S9
Metallic Night Black (Gloss) / Medium 08434446228995 N40253S9
Metallic Night Black (Gloss) / Large 08434446229039 N40256S9
Metallic Night Black (Gloss) / X-Large 08434446229077 N40258S9
Urban Green (Gloss)/Black (Matt) / X-Small 08434446228926 N40243SA
Urban Green (Gloss)/Black (Matt) / Small 08434446228964 N40248SA
Urban Green (Gloss)/Black (Matt) / Medium 08434446229008 N40253SA
Urban Green (Gloss)/Black (Matt) / Large 08434446229046 N40256SA
Urban Green (Gloss)/Black (Matt) / X-Large 08434446229084 N40258SA
