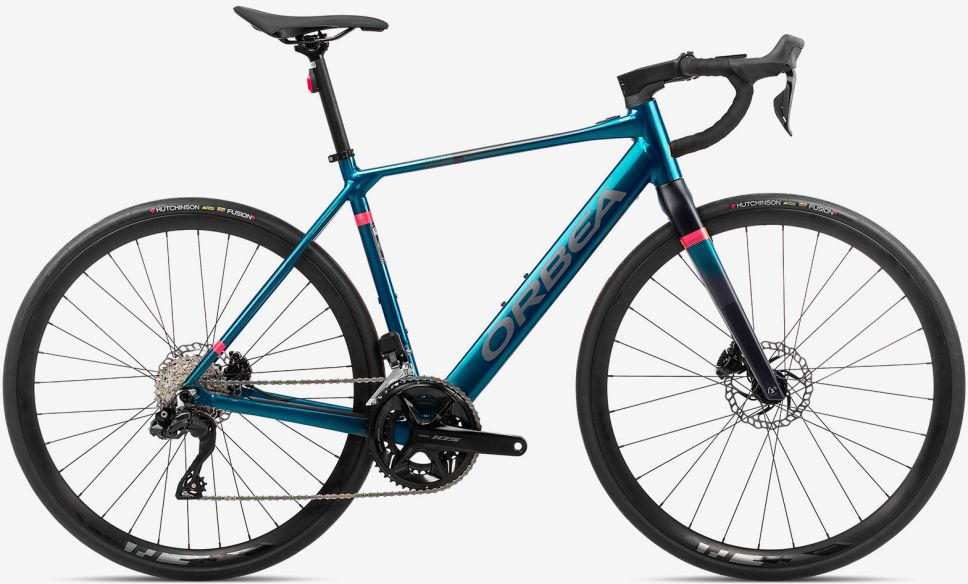

Orbea Gain D30i 20mph

Orbea Gain D30i 20mph
  • Color: Borealis Blue (Gloss)/Black (Matt)
  • Color: Mango (Gloss)/Black (Matt)
  • Color: Metallic Silver (Matt)/Black (Gloss)
$4,599.00
Color: Borealis Blue (Gloss)/Black (Matt)
Size: Select size
Please select options Unavailable

Details

The Gain is designed to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road. Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it's just you, Gain and hours of road ahead.

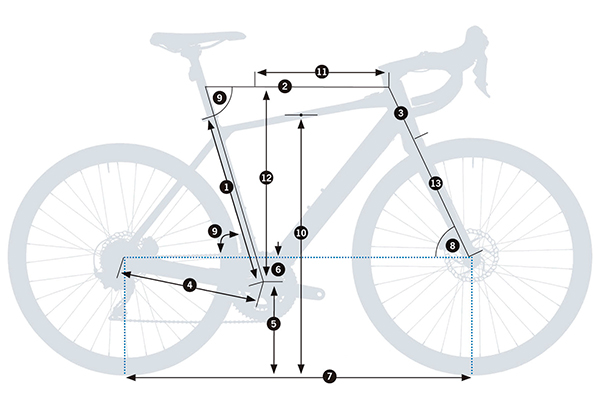

Geometry Chart:
X-SmallSmallMediumLargeX-Large
11 - SEAT TUBE (C-T) 460 485 515 545 575
22 - TOP TUBE (EFF) 507 530 547 571 589
33 - HEAD TUBE 97 122 146 172 196
44 - CHAINSTAY 420 420 420 420 420
55 - BB HEIGHT 267 267 267 267 267
66 - BB DROP 74 74 74 74 74
77 - WHEELBASE 988 1002 1017 1036 1050
88 - HEAD ANGLE 71 71.5 72 72 72.5
99 - SEAT ANGLE 75 74.5 74.5 74 74
1010 - STANDOVER 731.07 749.5 773.83 798.36 817.55
1111 - REACH 366 377 388 399 410
1212 - STACK 525 550 575 600 625
1313 - FORK LENGTH 400 400 400 400 400
14RAKE 50 50 50 50 50
15WHEEL SIZE 682 682 682 682 682
Sizes:
Frame SizeRider height (in)
X-Small 59.1"-63.0"
Small 63.0"-66.9"
Medium 66.9"-70.9"
Large 70.9"-74.8"
X-Large 74.8"-78.7"

Specs

Frame Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.
Fork Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
Wheels Alloy, Tubeless, 700c, 21c, 32H
Axles Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tires Hutchinson Fusion 5 Performance TLR 700x30
Crankset Shimano 105 R7100 34x50t
Shifters Shimano Di2 R7170
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M7100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP20 Alu SL, Reach 80, Drop 125
Stem OC Road Performance RP21, -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost Alloy, 27.2mm, Setback 0, for integrated light
Saddle Fizik Aliante R5
Pedals Sold separately
Accessories & Extras Remote: Mahle iWoc ONE
Motor Mahle motor hub X35 Plus
Battery Mahle 36V/6.9A 248Wh ANT+
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Charger Mahle X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Borealis Blue (Gloss)/Black (Matt) / X-Small 08434446372810 N62146D2
Borealis Blue (Gloss)/Black (Matt) / Small 08434446372841 N62149D2
Borealis Blue (Gloss)/Black (Matt) / Medium 08434446372872 N62152D2
Borealis Blue (Gloss)/Black (Matt) / Large 08434446372902 N62155D2
Borealis Blue (Gloss)/Black (Matt) / X-Large 08434446372933 N62158D2
Mango (Gloss)/Black (Matt) / X-Small 08434446372803 N62146D1
Mango (Gloss)/Black (Matt) / Small 08434446372834 N62149D1
Mango (Gloss)/Black (Matt) / Medium 08434446372865 N62152D1
Mango (Gloss)/Black (Matt) / Large 08434446372896 N62155D1
Mango (Gloss)/Black (Matt) / X-Large 08434446372926 N62158D1
Metallic Silver (Matt)/Black (Gloss) / X-Small 08434446372827 N62146D3
Metallic Silver (Matt)/Black (Gloss) / Small 08434446372858 N62149D3
Metallic Silver (Matt)/Black (Gloss) / Medium 08434446372889 N62152D3
Metallic Silver (Matt)/Black (Gloss) / Large 08434446372919 N62155D3
Metallic Silver (Matt)/Black (Gloss) / X-Large 08434446373022 N62158D3
