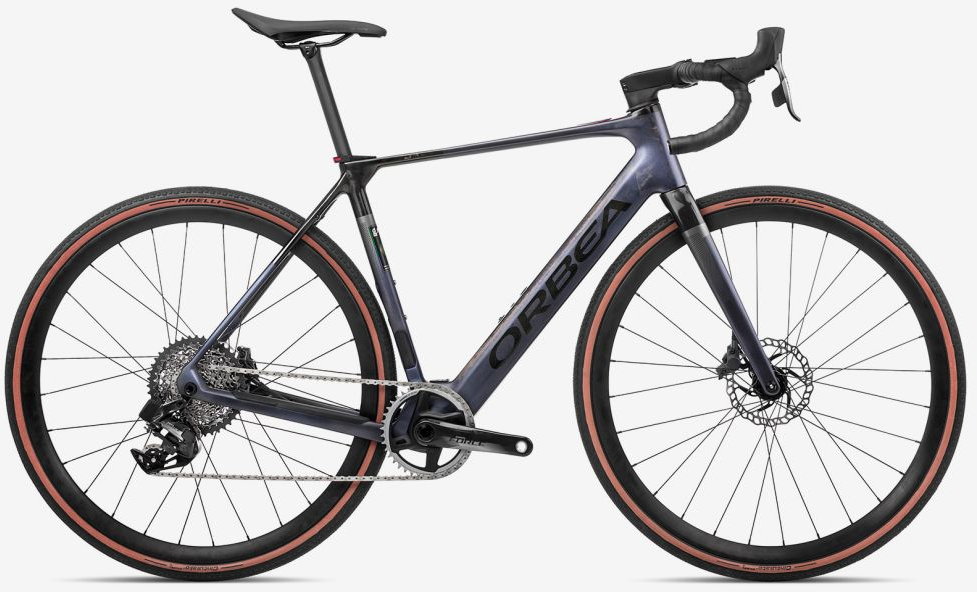

Orbea Gain M21e 1x 20mph

Orbea Gain M21e 1x 20mph
  • Color: Tanzanite Carbon View (Matt)/Carbon Raw (Gloss)
  • Color: White Chic/Metallic Green Artichoke (Gloss)
$7,699.00
Please select options Unavailable

Details

The Gain is designed to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road. Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it's just you, Gain and hours of road ahead.

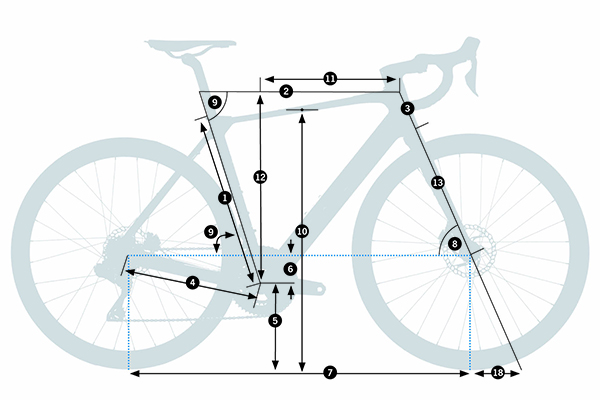

Geometry Chart:
X-SmallSmallMediumLargeX-LargeXX-Large
1 - SEAT TUBE (C-T) 430 460 490 515 540 570
2 - TOP TUBE (EFF) 516 535 555 569 587 602
3 - HEAD TUBE 113 136 158 181 203 225
4 - CHAINSTAY 415 415 415 415 415 415
5 - BB HEIGHT 263 263 263 265 265 265
6 - BB DROP 78 78 78 76 76 76
7 - WHEELBASE 984 998 1011 1022 1035 1047
8 - HEAD ANGLE 71º 71.2º 71.5º 72º 72.2º 72.5º
9 - SEAT ANGLE 74.5º 74º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER 728 756 782 803 830 844
11 - REACH 370 378 386 394 402 410
12 - STACK 525 547 569 591 613 635
13 - FORK LENGTH 380 380 380 380 380 380
14 - RAKE 50 50 50 50 50 50
15 - TRAIL 64.5 63.3 61.4 58 57 55
Sizes:
Frame SizeRider height (in)
X-Small 61.1"-65.4"
Small 65.7"-67.7"
Medium 68.1"-70.5"
Large 70.9"-72.8"
X-Large 73.2"-75.2"
XX-Large 75.6"-81.5"

Specs

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle
Wheels Alloy, Tubeless, 700c, 21c
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Pirelli Cinturato™ Gravel H 700x35c TLR
Crankset SRAM Force 1 DM Dub 40t
Shifters SRAM Force eTap AXS
Rear Derailleur SRAM Force XPLR eTAP AXS
Cassette/Freewheel SRAM XG-1271 XPLR 10-44t 12-Speed
Chain SRAM Force 12-Speed
Brakes SRAM Force eTap AXS
Handlebars OC Gravel GR30, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Fizik Aliante R5
Pedals Sold separately
Accessories & Extras Remote: Mahle ONE Head Unit (BT/ANT+)
Motor Mahle motor hub X20, ALC
Battery Mahle iX350 36V 353Wh
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Charger Mahle Active Charger up to 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / X-Small 08434446389603 N63102DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Small 08434446389696 N63103DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Medium 08434446389757 N63105DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Large 08434446389788 N63107DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / X-Large 08434446389818 N63109DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / XX-Large 08434446389849 N63110DB
White Chic/Metallic Green Artichoke (Gloss) / X-Small 08434446389597 N63102D4
White Chic/Metallic Green Artichoke (Gloss) / Small 08434446389658 N63103D4
White Chic/Metallic Green Artichoke (Gloss) / Medium 08434446389740 N63105D4
White Chic/Metallic Green Artichoke (Gloss) / Large 08434446389771 N63107D4
White Chic/Metallic Green Artichoke (Gloss) / X-Large 08434446389801 N63109D4
White Chic/Metallic Green Artichoke (Gloss) / XX-Large 08434446389832 N63110D4
