Orbea Kemen Mid 10 20mph

Orbea Kemen Mid 10 20mph
  • Color: Metallic Night Black (Matt-Gloss)
  • Color: Dark Red (Gloss-Matt)
  • Color: Urban Green (Gloss-Matt)
$5,199.00
Please select options Unavailable

Details

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

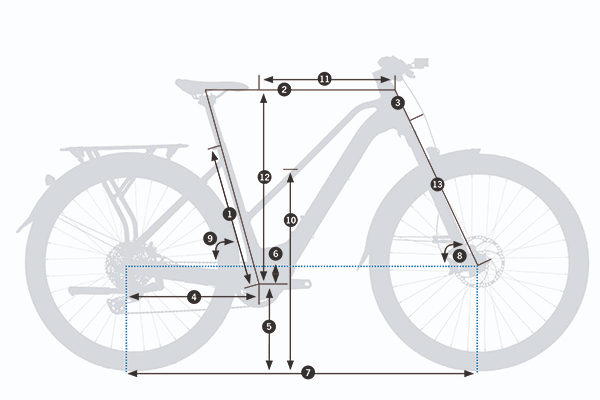

Geometry Chart:
SmallMediumLarge
1 - SEAT TUBE (C-T) 400 453 483
2 - TOP TUBE (EFF) 563 576 606
3 - HEAD TUBE 110 115 132
4 - CHAINSTAY 445 445 445
5 - BB HEIGHT 307,5 307,5 307,5
66- BB DROP 63 63 63
7 - WHEELBASE 1134 1142 1173
8 - HEAD ANGLE 66,5º 67º 67º
9 - SEAT ANGLE 75º 75º 75º
10 - STANDOVER 732 740 743
11 - REACH 405 415 440
12 - STACK 617 624 640
13 - FORK LENGTH 513,5 513,5 513,5
14 - RAKE 44 44 44
Sizes:
Frame SizeRider height (in)
Small 61.1"-66.9"
Medium 65.0"-70.9"
Large 70.1"-74.8"

Specs

Frame Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork Fox 34 Float AWL 100 RAIL QR15x110
Wheels Alloy, Tubeless, 25c, 32H
Tires Schwalbe G-ONE Allround, 29x2,25, Performance Line RaceGuard, TLE, Reflective
Crankset Shimano Steps EM600
Chainrings Alloy EP8 36t w/chainguard
Shifters Shimano XT M8130 Link Glide
Rear Derailleur Shimano XT M8130 Link Glide SGS Shadow Plus
Cassette/Freewheel Shimano CS-LG400 11-50t 11-Speed
Chain KMC eGlide
Brakes Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem Alloy forged, 35mm interface, -6º, ICR
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Selle Royal Vivo 1216 DRN 160x249mm
Pedals VP-537 Black
Motor Shimano EP801
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Controller/Display EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Metallic Night Black (Matt-Gloss) / Small 08434446305429 N64916VD
Metallic Night Black (Matt-Gloss) / Medium 08434446305450 N64918VD
Metallic Night Black (Matt-Gloss) / Large 08434446305481 N64919VD
Dark Red (Gloss-Matt) / Small 08434446305412 N64916VB
Dark Red (Gloss-Matt) / Medium 08434446305443 N64918VB
Dark Red (Gloss-Matt) / Large 08434446305474 N64919VB
Urban Green (Gloss-Matt) / Small 08434446305405 N64916VA
Urban Green (Gloss-Matt) / Medium 08434446305436 N64918VA
Urban Green (Gloss-Matt) / Large 08434446305467 N64919VA
