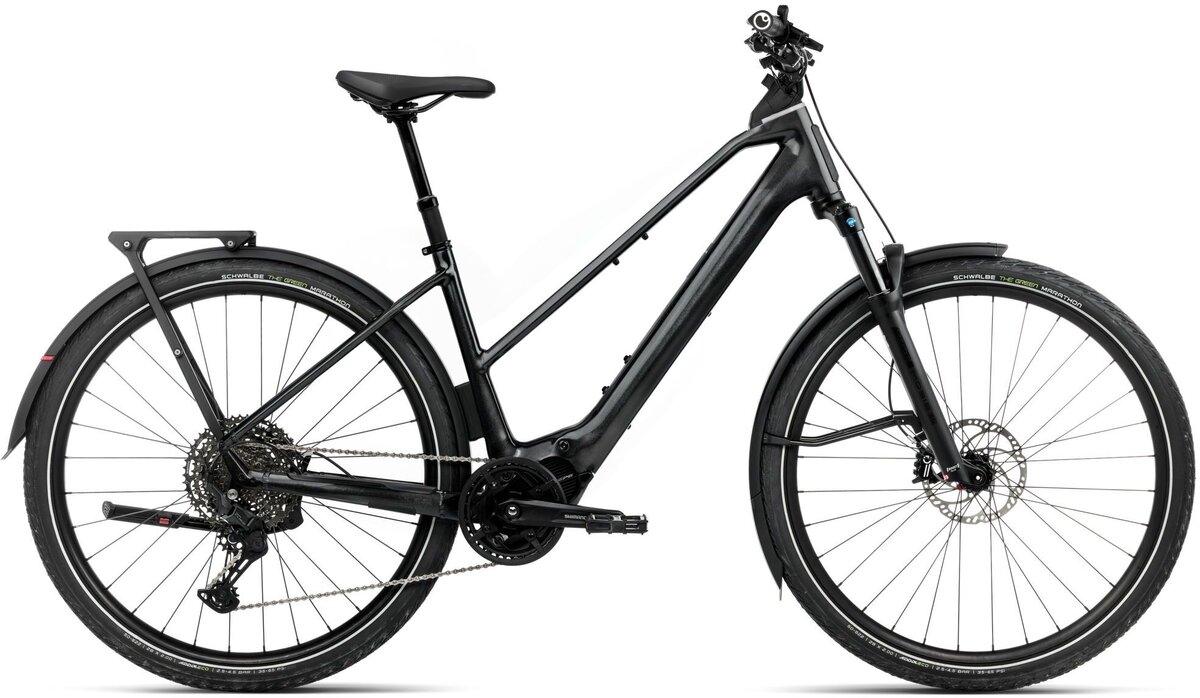

Orbea Kemen Tour 10 Mid

Orbea Kemen Tour 10 Mid
  • Color: Diamond Black (Gloss)
  • Color: Ivory White (Gloss)
  • Color: Spaceship Green (Matt)
$4,799.00
Color:
Size: Select size
Wheel Size: 29-Inch

Details

Choose to be free

- 28MPH

Kemen Tour owns the city streets, designed for speed, comfort, and versatility. Its confident, secure handling and wide range of accessories open up a whole world of possibilities. The powerful Shimano EP motor and 630Wh battery are perfect for heavy loads and steep roads.

Whizz through the morning traffic and breathe fresh air on your way to work. Let Kemen take the strain so you don't break a sweat. After work, take the long way home, escape the bike lane, and have an urban adventure.

Confident in any situation
No matter where your day takes you, Kemen is ready. Confidence is built in from the start to make every ride a pleasure.

Designed to handle
The frame puts you in the perfect position for control, giving a comfortable and confident ride.

Smooth the streets
The combination of the suspension fork and wider tyres offers just enough travel to soak up the rougher streets.

A world of possibilities
The tools you use every day need to be comfortable and versatile, and Kemen is a bike that offers many possibilities.

By designing smart features and accessories that work specifically with our bikes, we can make sure you aren't missing anything for your day-to-day.

Tour specific mudguards
- Kemen's robust mudguards won't deform or rattle, and the cleverly integrated rear lights are protected from damage.

20kg rear rack
- The solid and robust rack works with traditional pannier hooks, Ortlieb QL 3.1, MI,K, and MIK-side mounting systems, and can carry up to 20kg.

Endless power.
Intelligent control.
- Effortless journeys. Speed up the steepest climbs. Safely match the rhythm of the traffic. All day. Every day.

Safety built in
- Safety is considered from the start and designed in. That includes intuitive handling and an integrated lighting system that ensures you are always visible.

Intelligent lighting system
- Every Kemen has a built-in, high-tech lighting system that automatically switches on to keep you safe and light the way ahead.

Sizes:
MeasurementSMLXL
Seat Tube (C-T) 428 442.7 457.3 472
Top Tube (EFF) 583.5 612 641 669.5
Head Tube 129.5 138.6 150.6 170.2
Chainstay 450 450 450 450
BB Drop 65 65 65 65
BB Height 297.5 297.5 297.5 297.5
Wheelbase 1162 1191 1222 1253
Head Angle 66.5° 67.2° 67.2° 67.2°
Seat Angle 74.7° 74.7° 74.7° 74.7°
Rake 46 46 46 46
Standover - - - -
Reach 417 444.5 470.5 494
Stack 633 644 655 673
Fork Length 508 508 508 508
Sizes:
SizeHeight
S 60.2"-67.7"
M 64.6"-72.0"
L 69.3"-76.8"
XL 73.6"-81.1"

This electric bicycle may exceed certain speed or power limits defined for e-bikes depending on local or state regulations. It is the rider’s responsibility to ensure compliance with all applicable laws and use restrictions before operating this bicycle.

Specs

Frame Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork SR Suntour Mobie34 80mm Air Q15x110
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Marathon, 50-622, Reflective Tape
Crankset FSA CK-752 Shimano EP600/801 170mm
Shifters Shimano Cues SL-U6000
Rear Derailleur Shimano Cues U6000 GS Shadow
Cassette/Freewheel Shimano CS-LG400 11-50t 11-Speed
Chain KMC eGlide
Brakes Magura MT5N(f)/MT4N(r) Hydraulic Disc Easy Route Connection
Handlebars Orbea Urban, Integrated Light, Rise 50, Width 720
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Accessories & Extras Front Light: Supernova Starstream Pro, Front Light 2: High Beam, Orbea integrated, USB-C charging point, Rear Light: Orbea Fender integrated, with alert light, Quickstand: Massload rear adjustable, Bell: Knog OI Classic, Rear Carrier: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Motor Shimano EP600
Battery Orbea Internal 630Wh
Controller/Display Shimano EN600
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Diamond Black (Gloss) / Small / 29-Inch 08434446812163 S71503W7
Diamond Black (Gloss) / Medium / 29-Inch 08434446812194 S71505W7
Diamond Black (Gloss) / Large / 29-Inch 08434446812224 S71507W7
Ivory White (Gloss) / Medium / 29-Inch 08434446812217 S71505W9
Ivory White (Gloss) / Large / 29-Inch 08434446812248 S71507W9
Spaceship Green (Matt) / Small / 29-Inch 08434446812170 S71503W8
Spaceship Green (Matt) / Medium / 29-Inch 08434446812200 S71505W8
