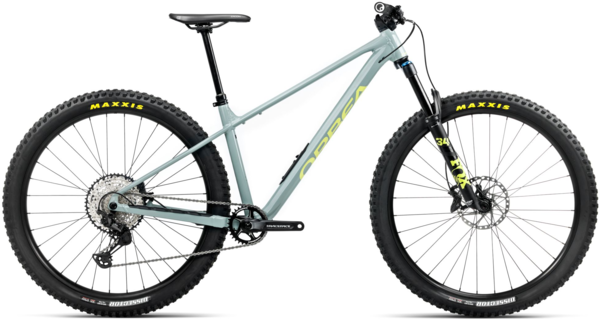

Orbea Laufey H-LTD

Orbea Laufey H-LTD
  • Color: Blue Stone -Spicy Lime (Gloss)
  • Color: Metallic Olive Green-Titanium Black (Gloss)
  • Color: Tanzanite (Matt)-Blue Stone (Gloss)
$2,999.00
Color:
Size: Select size
Wheel Size: 29-Inch

Details

Master of Fun

Riding a hardtail is a choice, not a compromise. When you throw a leg over it, you've already decided to squeeze every last drop of fun from each ride.

You are here for a good time and Laufey is ready thanks to the low-slung, slack geometry, big fork, and that magic feel which comes from the clever frame design absorbing trail buzz and taking the sting out of bigger impacts.

Laufey refuses to be categorized and could be your first bike, or another bike in your collection. Ride it in Lycra or shred it in jeans. It doesn't matter. Laufey is your ticket to a good time.

That Magic Feel
Designing a little bit of compliance into a frame adds comfort and also helps the bike track the ground better, especially at speed.

Laufey's magic handling and composure when things get gnarly comes from that tuned rigidity and every tube has been carefully designed to offer the most fun, responsive ride possible.

Trail Geometry, Done Right
Whether you are riding XC, or hitting the local jump trail, Laufey is ready with geometry built for shredding and to inspire confidence in newer riders.

Take a slack, low slung frame. Add Steep 'n' Deep to maximize maneuverability and a big 140mm fork for when things get crazy. Precision shaping of the chainstays to give lots of clearance for grippy 2.6" tires. That is the recipe for fun!

Tough. Simple. Unstoppable.
With a rugged aluminum frame and factory-fitted vinyl protection, Laufey shrugs off the rough stuff so you can just keep riding.

Laufey is a bombproof hardtail, built to survive abuse. The factory fitted vinyl protects the downtube from the inevitable rock strikes and the internal cables are protected and hidden.

Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube (C-T) (mm) 380 415 430 460
Top Tube (EFF) (mm) 572 598 625 652
Head Tube (mm) 95 105 120 130
Chainstay (mm) 440 440 440 440
BB Drop (mm) 65 65 65 65
BB Height (mm) 310 310 310 310
Wheelbase (mm) 1181,8 1210,1 1240,6 1269,9
Head Angle 64.5° 64.5° 64.5° 64.5°
Seat Angle 77° 77° 77° 77°
Rake (mm) 44 44 44 44
Standover (mm) 440 440 440 440
Reach (mm) 427 451 475 500
Stack (mm) 633 642 655,5 664,5
Fork Length (mm) 554 554 554 554
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 150 - 165 59.1" - 65.0"
Medium 160 - 175 63.0" - 68.9"
Large 170 - 185 66.9" - 72.8"
X-Large 180 - 198 70.9" - 78.0"

Specs

Frame Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Fork Fox 34 Float Performance 140 Grip 3-Pos QR15x110
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.60" 60 TPI Exo TLR
Crankset Race Face Aeffect 32t
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M7100
Brakes Shimano M6120 Hydraulic Disc
Handlebars OC Mountain Control MC20 Alu SL, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Ergon SM Enduro
Pedals Sold separately
Accessories & Extras Accesories Containers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Stone -Spicy Lime (Gloss) / Small / 29-Inch 08434446834318 S25103P7
Blue Stone -Spicy Lime (Gloss) / Medium / 29-Inch 08434446834349 S25105P7
Blue Stone -Spicy Lime (Gloss) / Large / 29-Inch 08434446834370 S25107P7
Blue Stone -Spicy Lime (Gloss) / X-Large / 29-Inch 08434446834400 S25109P7
Metallic Olive Green-Titanium Black (Gloss) / Small / 29-Inch 08434446834325 S25103P8
Metallic Olive Green-Titanium Black (Gloss) / Medium / 29-Inch 08434446834356 S25105P8
Metallic Olive Green-Titanium Black (Gloss) / Large / 29-Inch 08434446834387 S25107P8
Metallic Olive Green-Titanium Black (Gloss) / X-Large / 29-Inch 08434446834417 S25109P8
Tanzanite (Matt)-Blue Stone (Gloss) / Small / 29-Inch 08434446834301 S25103P6
Tanzanite (Matt)-Blue Stone (Gloss) / Medium / 29-Inch 08434446834332 S25105P6
Tanzanite (Matt)-Blue Stone (Gloss) / Large / 29-Inch 08434446834363 S25107P6
Tanzanite (Matt)-Blue Stone (Gloss) / X-Large / 29-Inch 08434446834394 S25109P6
