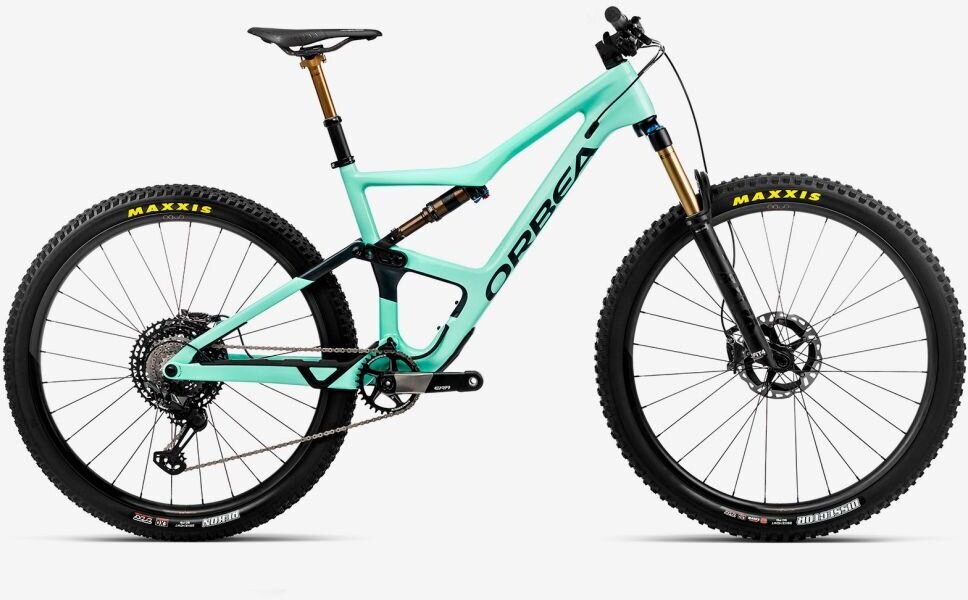

Orbea Occam M-LTD

Orbea Occam M-LTD
  • Color: Ice Green/Jade Green Carbon View (Gloss)
  • Color: Infinity Green Carbon View (Matt-Gloss)
  • Color: Metallic Mulberry/Black (Gloss)
$9,499.00
Color: Ice Green/Jade Green Carbon View (Gloss)
Size: Select size
Please select options Unavailable

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 35 35 35 35
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 66º 66º 66º 66º
9 - SEAT ANGLE 77º 77º 77º 77º
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZE (MM)CRANKSTEMHANDLEBAR
S 170 32 363/125
M 170 32 418/150
L 175 50 418/150
XL 175 50 475/175

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Fork Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock Fox Float DPS Factory 3-Position Evol Kashima custom tune 210x50mm
Wheels OQUO Mountain Performance MP30LTD Carbon
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR / Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Crankset Race Face ERA 32t
Shifters Shimano XTR M9100
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus
Cassette/Freewheel Shimano XTR M9100 10-51T 12-Speed
Chain Shimano CN-9100
Orbea OC chainguide
Brakes Shimano XTR M9120Hydraulic Disc
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost Fox Transfer Factory Kashima Dropper 31.6
Seatpost Lever: Shimano SL-MT-800 I-Spec EV
Saddle Fizik Antares R1 142mm
Pedals Sold separately
Accessories & Extras Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ice Green/Jade Green Carbon View (Gloss) / Small 08434446183591 N26415LT
Ice Green/Jade Green Carbon View (Gloss) / Medium 08434446183621 N26417LT
Ice Green/Jade Green Carbon View (Gloss) / Large 08434446183652 N26418LT
Ice Green/Jade Green Carbon View (Gloss) / X-Large 08434446183683 N26420LT
Infinity Green Carbon View (Matt-Gloss) / Small 08434446183584 N26415LS
Infinity Green Carbon View (Matt-Gloss) / Medium 08434446183614 N26417LS
Infinity Green Carbon View (Matt-Gloss) / Large 08434446183645 N26418LS
Infinity Green Carbon View (Matt-Gloss) / X-Large 08434446183676 N26420LS
Metallic Mulberry/Black (Gloss) / Small 08434446183607 N26415LU
Metallic Mulberry/Black (Gloss) / Medium 08434446183638 N26417LU
Metallic Mulberry/Black (Gloss) / Large 08434446183669 N26418LU
Metallic Mulberry/Black (Gloss) / X-Large 08434446183690 N26420LU
