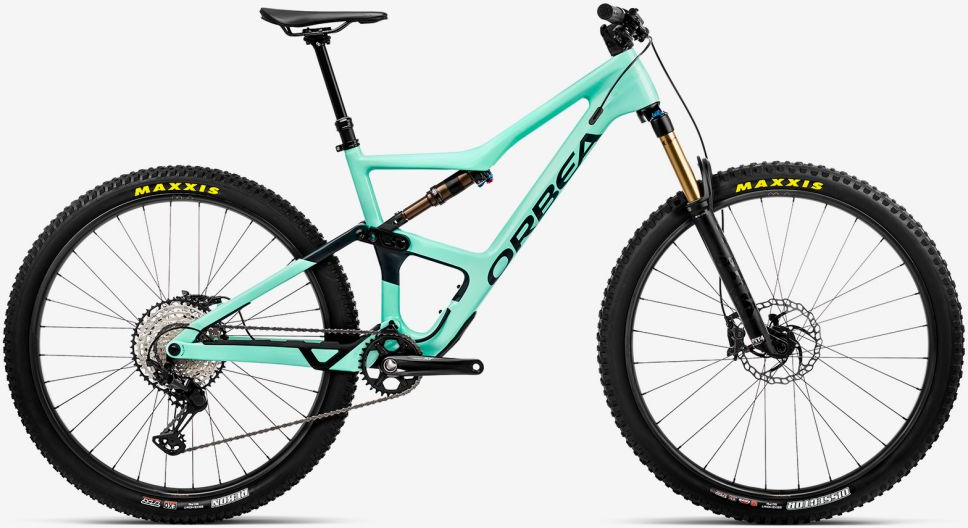

Orbea Occam M10

Orbea Occam M10
  • Color: Ice Green/Jade Green Carbon View (Gloss)
  • Color: Infinity Green Carbon View (Matt-Gloss)
  • Color: Metallic Mulberry/Black (Gloss)
$6,499.00
Color: Ice Green/Jade Green Carbon View (Gloss)
Size: Select size
Please select options Unavailable

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 35 35 35 35
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 66º 66º 66º 66º
9 - SEAT ANGLE 77º 77º 77º 77º
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44

X-LARGE

Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 40 780 390/125
MEDIUM 170 40 780 440/150
LARGE 175 50 780 440/150
X-LARGE 175 50 780 480/170

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Fork Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock Fox Float DPS Factory 3-Position Evol Kashima custom tune 210x50mm
Wheels OQUO Mountain Control MC32LTD Carbon
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR/ Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Crankset Shimano XT M8100 32T
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51T 12-Speed
Chain Shimano M6100
Orbea OC chainguide
Brakes Shimano XT M8120 Hydraulic Disc
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ice Green/Jade Green Carbon View (Gloss) / Small 08434446183355 N26215LT
Ice Green/Jade Green Carbon View (Gloss) / Medium 08434446183386 N26217LT
Ice Green/Jade Green Carbon View (Gloss) / Large 08434446183416 N26218LT
Ice Green/Jade Green Carbon View (Gloss) / X-Large 08434446183447 N26220LT
Infinity Green Carbon View (Matt-Gloss) / Small 08434446183348 N26215LS
Infinity Green Carbon View (Matt-Gloss) / Medium 08434446183379 N26217LS
Infinity Green Carbon View (Matt-Gloss) / Large 08434446183409 N26218LS
Infinity Green Carbon View (Matt-Gloss) / X-Large 08434446183430 N26220LS
Metallic Mulberry/Black (Gloss) / Small 08434446183362 N26215LU
Metallic Mulberry/Black (Gloss) / Medium 08434446183393 N26217LU
Metallic Mulberry/Black (Gloss) / Large 08434446183423 N26218LU
Metallic Mulberry/Black (Gloss) / X-Large 08434446183454 N26220LU
