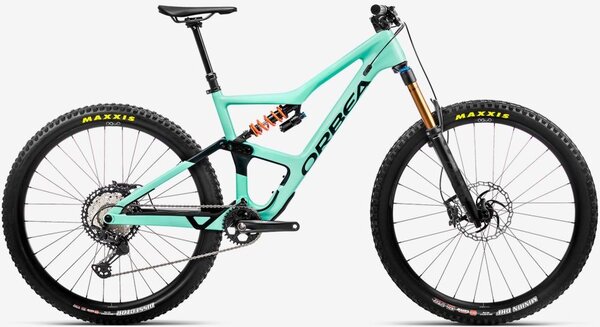

Orbea Occam M10 LT

Orbea Occam M10 LT
  • Color: Ice Green/Jade Green Carbon View (Gloss)
  • Color: Infinity Green Carbon View (Matt-Gloss)
  • Color: Metallic Mulberry/Black (Gloss)
$6,499.00
Color: Ice Green/Jade Green Carbon View (Gloss)
Size: Select size
Please select options Unavailable

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 32 32 32 32
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 65.5° 65.5° 65.5° 65.5°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 40 780 390/125
MEDIUM 170 40 780 440/150
LARGE 175 50 780 440/150
X-LARGE 175 50 780 480/170

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Fork Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Rear Shock Fox DHX Factory 2-Position custom tune 210x55mm
Wheels OQUO Mountain Control MC32TEAM
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Crankset Shimano XT M8100 32T
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M8100 10-51T 12-Speed
Chain Shimano M6100
Orbea OC chainguide
Brakes Shimano XT M8120 Hydraulic Disc
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ice Green/Jade Green Carbon View (Gloss) / Small 08434446183478 N26315LT
Ice Green/Jade Green Carbon View (Gloss) / Medium 08434446183508 N26317LT
Ice Green/Jade Green Carbon View (Gloss) / Large 08434446183539 N26318LT
Ice Green/Jade Green Carbon View (Gloss) / X-Large 08434446183560 N26320LT
Infinity Green Carbon View (Matt-Gloss) / Small 08434446183461 N26315LS
Infinity Green Carbon View (Matt-Gloss) / Medium 08434446183492 N26317LS
Infinity Green Carbon View (Matt-Gloss) / Large 08434446183522 N26318LS
Infinity Green Carbon View (Matt-Gloss) / X-Large 08434446183553 N26320LS
Metallic Mulberry/Black (Gloss) / Small 08434446183485 N26315LU
Metallic Mulberry/Black (Gloss) / Medium 08434446183515 N26317LU
Metallic Mulberry/Black (Gloss) / Large 08434446183546 N26318LU
Metallic Mulberry/Black (Gloss) / X-Large 08434446183577 N26320LU
