Orbea Oiz M LTD

Orbea Oiz M LTD

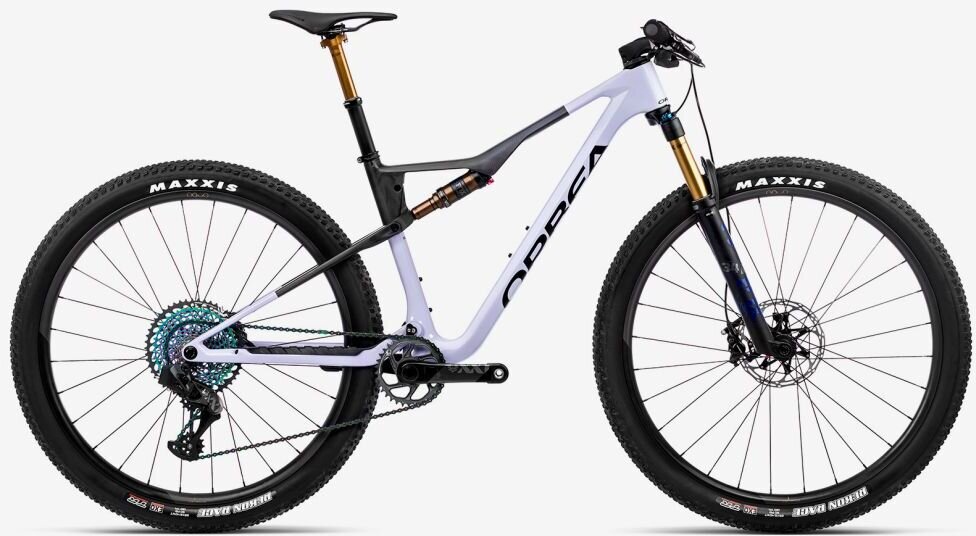

  • Color: Digital Lavender (Gloss)/Carbon Raw (Matt)
  • Color: Tanzanite Carbon View/Carbon Raw (Matt)
$10,499.00
Please select options Unavailable

Details

Take control. Don't accept compromises. Oiz isn't down-country or trail; this is a 120mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, Oiz is the fastest XC bike to leave our factory in over 180 years.

120mm of Uncompromised Travel
Historically choosing between 100mm and 120mm required a compromise; the control of 120mm or the weight and efficiency of 100mm. Oiz refuses to accept that compromise, designed from the start around longer travel but lighter and more efficient than ever.

SIC System
Our SIC system routes the cables along the best path through the headset, through internal guides and invisibly from the front to rear triangle via our Cable Pass.

I-line
Our patented I-line is simply the sleekest, most integrated shock lock-out on the market.

You Can't Beat Simple
Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike and relentlessly pursuing the simplest solutions means Oiz doesn't need compromise anywhere else to achieve this.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 405 432 460 510
2 - TOP TUBE (EFF) 575 598 623 650
3 - HEAD TUBE 90 90 100 115
4 - CHAINSTAY 432 432 432 432
5 - BB HEIGHT 333 333 333 333
6 - BB DROP 42 42 42 42
7 - WHEELBASE 1138 1163 1189 1219
8 - HEAD ANGLE 67° 67° 67° 67°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 731 741 741 750
11 - REACH 425 450 472 496
12 - STACK 596 596 606 619
13 - FORK LENGTH 531 531 531 531
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" SMALL
165-180 65.0"-70.9" MEDIUM
178-190 70.1"-74.8" LARGE
185-198 72.8"-78.0" X-LARGE

Sizes:
SIZE
(MM)
CRANKSTEMHANDLEBAR
SMALL 170 60 740
MEDIUM 175 70 740
LARGE 175 70 740
X-LARGE 175 90 740

Specs

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push-Unlock QR15x110
Rear Shock Fox i-line DPS Factory 120mm Remote Push-Unlock Evol Kashima custom tune 190x45mm
Wheels OQUO Mountain Performance MP30LTD Carbon
Axles Fox Kabolt Boost
Tires Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Crankset SRAM XX1 Eagle Dub Grey Boost 34t
Shifters SRAM XX1 Eagle AXS
Rear Derailleur SRAM XX1 Eagle AXS
Cassette/Freewheel SRAM XX1 XG-1299 Eagle 10-50t 12-Speed Rainbow
Chain SRAM XX1 Eagle 12-Speed rainbow
Brakes SRAM Ultimate Carbon Black Hydraulic Disc
Handlebars OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Stem OC Mountain Performance MP10 Alu SL, -10º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost Fox Transfer SL Factory Kashima Dropper 31.6
Saddle Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm
Pedals Sold separately
Accessories & Extras Remote Lockout: OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos
Battery: SRAM Powerpack

* Subject to change without notice.

Part Numbers

Option UPC MPN
Digital Lavender (Gloss)/Carbon Raw (Matt) / Small 08434446339394 N24603MN
Digital Lavender (Gloss)/Carbon Raw (Matt) / Medium 08434446339493 N24605MN
Digital Lavender (Gloss)/Carbon Raw (Matt) / Large 08434446339523 N24607MN
Digital Lavender (Gloss)/Carbon Raw (Matt) / X-Large 08434446339554 N24609MN
Tanzanite Carbon View/Carbon Raw (Matt) / Small 08434446339479 N24603MP
Tanzanite Carbon View/Carbon Raw (Matt) / Medium 08434446339509 N24605MP
Tanzanite Carbon View/Carbon Raw (Matt) / Large 08434446339530 N24607MP
Tanzanite Carbon View/Carbon Raw (Matt) / X-Large 08434446339561 N24609MP
