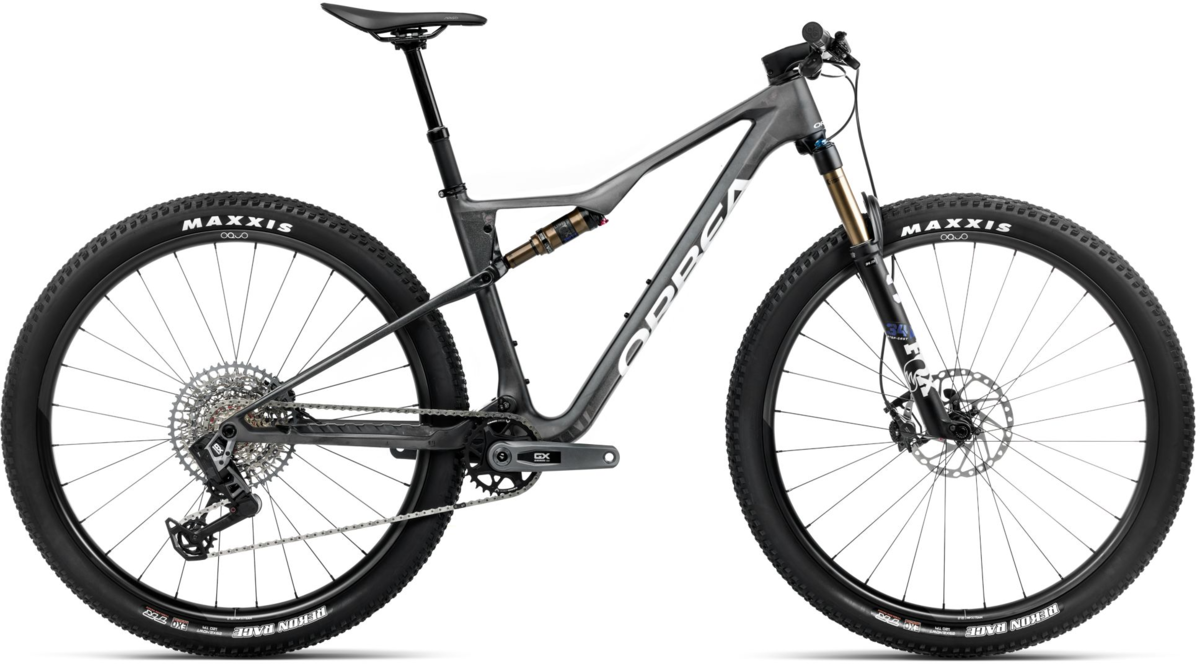

Orbea Oiz M10 AXS

Orbea Oiz M10 AXS
  • Color: Diamond Carbon View (Matt-Gloss)
  • Color: Ivory White (Gloss) - Bumblebee Yellow (Matt)
  • Color: Seaweed Carbon View (Gloss) - Spaceship Green (Matt)
$6,299.00
Color:
Size: Select size
Wheel Size: 29-Inch

Details

BUILT TO FLY

Are you ready for takeoff? Race every climb and take each corner faster.

Get ready for the ride of your life. Oiz is an uncompromised race machine that looks as good as it rides. Modern geometry, advanced construction, and efficient suspension mean more grip, and better control, inspiring you to attack on every climb and get right off the brakes on today’s most challenging tracks.

Feather-Light, Race Ready
Because, on the race course, every gram counts.

Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there.

Simply the fastest, up and down
120mm of Race Tuned Suspension and modern geometry.

Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.

Every watt counts
You can’t see the frame stiffness, but you feel the power transfer every time you push the pedals.

For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff. However it is possible to have a frame which is too stiff to track the terrain efficiently.


Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube (C-T) (mm) 405 432 460 510
Top Tube (EFF) (mm) 575 598 623 650
Head Tube (mm) 90 90 100 115
Chainstay (mm) 432 432 432 432
BB Drop (mm) 42 42 42 42
BB Height (mm) 333 333 333 333
Wheelbase (mm) 1138 1163 1189 1219
Head Angle 67º 67º 67º 67º
Seat Angle 76.5º 76.5º 76.5º 76.5º
Rake (mm) 44 44 44 44
Standover (mm) 731 741 741 750
Reach (mm) 425 450 472 496
Stack (mm) 596 596 606 619
Fork Length (mm) 531 531 531 531
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 155 - 170 61.1" - 66.9"
Medium 165 - 180 65.0" - 70.9"
Large 178 - 190 70.1" - 74.8"
X-Large 185 - 198 72.8" - 78.0"

Specs

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork Fox 34 Float SL Factory 120, Grip SL, Remote-Adj Push to Lock, QR15x110, Kashima
Rear Shock Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
Wheels Oquo Mountain Performance MP30TEAM
Tires Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Crankset SRAM GX Eagle Dub 32t
Shifters SRAM AXS Pod Controller
Rear Derailleur SRAM GX Eagle AXS
Cassette/Freewheel SRAM GX-1275 Eagle 10-52t 12-Speed
Chain SRAM GX Eagle 12-Speed
Brakes SRAM Motive Silver A2 4 piston Hydraulic Disc
Tape/Grips OC Lock On
Stem OC Mountain Performance MP21, -6º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Fizik Vento Argo X5 Alluminium 140mm
Pedals Sold separately
Accessories & Extras OC Squidlock MP11, Suspension + Dropper

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Diamond Carbon View (Matt-Gloss) / Small / 29-Inch 08434446869211 S23803KV
Diamond Carbon View (Matt-Gloss) / Medium / 29-Inch 08434446869242 S23805KV
Diamond Carbon View (Matt-Gloss) / Large / 29-Inch 08434446869273 S23807KV
Diamond Carbon View (Matt-Gloss) / X-Large / 29-Inch 08434446869303 S23809KV
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Small / 29-Inch 08434446869198 S23803KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Medium / 29-Inch 08434446869228 S23805KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Large / 29-Inch 08434446869259 S23807KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / X-Large / 29-Inch 08434446869280 S23809KR
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Small / 29-Inch 08434446869204 S23803KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Medium / 29-Inch 08434446869235 S23805KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Large / 29-Inch 08434446869266 S23807KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / X-Large / 29-Inch 08434446869297 S23809KS
