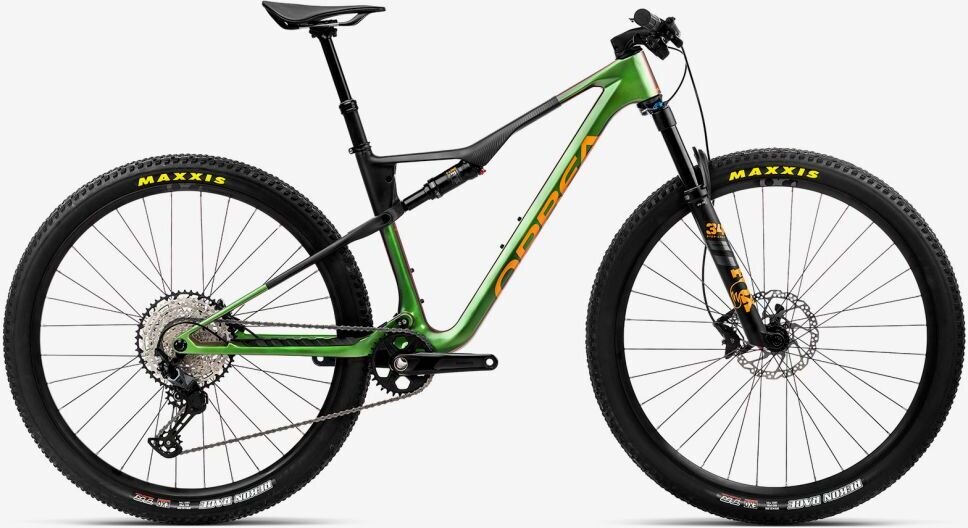

Orbea Oiz M30

Orbea Oiz M30
  • Color: Chameleon Goblin Green (Gloss)/Black (Matt)
  • Color: Halo Silver/Blue Carbon View (Gloss)
  • Color: Powder Black/Black (Matt)
$4,399.00
Color: Chameleon Goblin Green (Gloss)/Black (Matt)
Size: Select size
Please select options Unavailable

Details

Take control. Don't accept compromises. Oiz isn't down-country or trail; this is a 120mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, Oiz is the fastest XC bike to leave our factory in over 180 years.

120mm of Uncompromised Travel
Historically choosing between 100mm and 120mm required a compromise; the control of 120mm or the weight and efficiency of 100mm. Oiz refuses to accept that compromise, designed from the start around longer travel but lighter and more efficient than ever.

SIC System
Our SIC system routes the cables along the best path through the headset, through internal guides and invisibly from the front to rear triangle via our Cable Pass.

I-line
Our patented I-line is simply the sleekest, most integrated shock lock-out on the market.

You Can't Beat Simple
Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike and relentlessly pursuing the simplest solutions means Oiz doesn't need compromise anywhere else to achieve this.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 405 432 460 510
2 - TOP TUBE (EFF) 575 598 623 650
3 - HEAD TUBE 90 90 100 115
4 - CHAINSTAY 432 432 432 432
5 - BB HEIGHT 333 333 333 333
6 - BB DROP 42 42 42 42
7 - WHEELBASE 1138 1163 1189 1219
8 - HEAD ANGLE 67° 67° 67° 67°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 731 741 741 750
11 - REACH 425 450 472 496
12 - STACK 596 596 606 619
13 - FORK LENGTH 531 531 531 531
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" SMALL
165-180 65.0"-70.9" MEDIUM
178-190 70.1"-74.8" LARGE
185-198 72.8"-78.0" X-LARGE

Sizes:
SIZE
(MM)
CRANKSTEMHANDLEBAR
SMALL 170 60 740
MEDIUM 175 70 740
LARGE 175 70 740
X-LARGE 175 90 740

Specs

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork Fox 34 Float SC Performance 120 Grip Remote Push-Unlock QR15x110
Rear Shock Fox i-line DPS Performance 120mm Remote Push-Unlock Evol custom tune190x45mm
Wheels Alloy, Tubeless, 25c, 32H
Tires Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Crankset Shimano MT611 32t
Shifters Shimano Deore M6100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Performance MP30, Width 760
Stem OC Mountain Performance MP21, -6º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Pedals Sold separately
Accessories & Extras Remote Lockout: OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos

* Subject to change without notice.

Part Numbers

Option UPC MPN
Chameleon Goblin Green (Gloss)/Black (Matt) / Small 08434446337420 N23703N1
Chameleon Goblin Green (Gloss)/Black (Matt) / Medium 08434446337451 N23705N1
Chameleon Goblin Green (Gloss)/Black (Matt) / Large 08434446337482 N23707N1
Chameleon Goblin Green (Gloss)/Black (Matt) / X-Large 08434446337512 N23709N1
Halo Silver/Blue Carbon View (Gloss) / Small 08434446337437 N23703N2
Halo Silver/Blue Carbon View (Gloss) / Medium 08434446337468 N23705N2
Halo Silver/Blue Carbon View (Gloss) / Large 08434446337499 N23707N2
Halo Silver/Blue Carbon View (Gloss) / X-Large 08434446337529 N23709N2
Powder Black/Black (Matt) / Small 08434446337444 N23703NV
Powder Black/Black (Matt) / Medium 08434446337475 N23705NV
Powder Black/Black (Matt) / Large 08434446337505 N23707NV
Powder Black/Black (Matt) / X-Large 08434446337536 N23709NV
