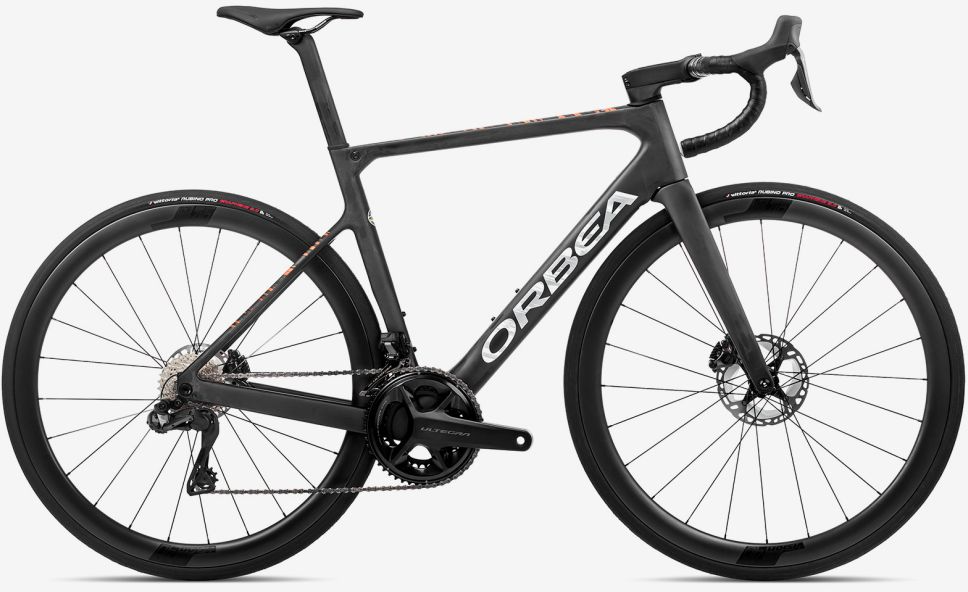

Orbea Orca M20iLTD

Orbea Orca M20iLTD
  • Color: Euskadi
  • Color: Glitter Anthracite/Blue Carbon View (Gloss)
  • Color: Red Wine (Gloss)/Carbon Raw (Matt)
  • Color: White Chic/Black (Gloss)
  • Color: WNT
$7,499.00
Color:
Size: Select size
Please select options Unavailable

Details

Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.

Geometry

Sizes:
SIZE (CM)47495153555760
MEASUREMENTS (MM)
1 - SEAT TUBE (C-T) 440 460 480 500 520 540 570
2 - TOP TUBE (EFF) 510 523 536 549 560 576 590
3 - HEAD TUBE 105.6 113.2 129.6 147.9 168 186.2 213.3
4 - CHAINSTAY 408 408 408 408 408 408 408
5 - BB HEIGHT 267 267 267 269 269 269 269
6 - BB DROP 72 72 72 70 70 70 70
7 - WHEELBASE 972 976 980 981 991 1002 1016
8 - HEAD ANGLE 71° 71.5° 72.20º 72.80° 73.00° 73.20° 73.20°
9 - SEAT ANGLE 74.5° 74° 73.7° 73.5° 73.5° 73.2° 73.2°
10 - STANDOVER 728 741 760 780 801 819 847
11 - REACH 370.08 375.56 380 385 391.02 398 404
12 - STACK 506.06 515 533 552 571.92 590 616
13 - FORK LENGTH 370 370 370 370 370 370 370
RAKE 48 48 48 43 43 43 43
Sizes:
HEIGHT (CM)HEIGHT (IN)SIZE (CM)
155-160 61.1"-63.0" 47
160-166 63.0"-65.4" 49
167-172 65.7"-67.7" 51
173-179 68.1"-70.5" 53
180-185 70.9"-72.8" 55
186-191 73.2"-75.2" 57
192-207 75.6"-81.5" 60

Sizes:
SIZE (CM)CRANKSTEMHANDLEBAR
47 170 80 380
49 170 90 400
51 170 90 400
53 170 100 420
55 172 100 420
57 172 110 440
60 175 120 440

Specs

Frame Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, power meter compatible, Rear Thru-Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube.
Fork Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru-axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels Vision 40 SC Disc Carbon TLR CL
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Rubino Pro IV G2.0 TLR 700x25c
Crankset Shimano Ultegra R8100 34x50T
Shifters Shimano ST-8170
Front Derailleur Shimano Ultegra Di2 R8150
Rear Derailleur Shimano Ultegra Di2 R8150
Cassette/Freewheel Shimano Ultegra R8100 11-30t 12-Speed
Chain Shimano M8100
Brakes Shimano R8170 Hydraulic Disc
Handlebars OC Road Performance RP10 Carbon, Reach 80, Drop 125
Tape/Grips Lizard Skins DSP 2.5mm
Stem OC Road Performance RP10, -8º
Headset Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing
Seatpost Orbea Orca OMX, SB0/25, w/Micro tilt adjustment
Saddle Selle Italia SLR Boost SuperFlow L Manganese Rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Euskadi / 47cm 08434446189364 N12047TK
Euskadi / 49cm 08434446189425 N12049TK
Euskadi / 51cm 08434446189487 N12051TK
Euskadi / 53cm 08434446190032 N12053TK
Euskadi / 55cm 08434446192548 N12055TK
Euskadi / 57cm 08434446194191 N12057TK
Euskadi / 60cm 08434446195310 N12060TK
Glitter Anthracite/Blue Carbon View (Gloss) / 47cm 08434446189111 N12047BR
Glitter Anthracite/Blue Carbon View (Gloss) / 49cm 08434446189388 N12049BR
Glitter Anthracite/Blue Carbon View (Gloss) / 51cm 08434446189449 N12051BR
Glitter Anthracite/Blue Carbon View (Gloss) / 53cm 08434446189500 N12053BR
Glitter Anthracite/Blue Carbon View (Gloss) / 55cm 08434446191039 N12055BR
Glitter Anthracite/Blue Carbon View (Gloss) / 57cm 08434446193545 N12057BR
Glitter Anthracite/Blue Carbon View (Gloss) / 60cm 08434446194375 N12060BR
Red Wine (Gloss)/Carbon Raw (Matt) / 47cm 08434446189128 N12047BS
Red Wine (Gloss)/Carbon Raw (Matt) / 49cm 08434446189395 N12049BS
Red Wine (Gloss)/Carbon Raw (Matt) / 51cm 08434446189456 N12051BS
Red Wine (Gloss)/Carbon Raw (Matt) / 53cm 08434446189517 N12053BS
Red Wine (Gloss)/Carbon Raw (Matt) / 55cm 08434446191534 N12055BS
Red Wine (Gloss)/Carbon Raw (Matt) / 57cm 08434446194047 N12057BS
Red Wine (Gloss)/Carbon Raw (Matt) / 60cm 08434446194689 N12060BS
White Chic/Black (Gloss) / 47cm 08434446189135 N12047BZ
White Chic/Black (Gloss) / 49cm 08434446189401 N12049BZ
White Chic/Black (Gloss) / 51cm 08434446189463 N12051BZ
White Chic/Black (Gloss) / 53cm 08434446189524 N12053BZ
White Chic/Black (Gloss) / 55cm 08434446192036 N12055BZ
White Chic/Black (Gloss) / 57cm 08434446194054 N12057BZ
White Chic/Black (Gloss) / 60cm 08434446194696 N12060BZ
WNT / 47cm 08434446189371 N12047TY
WNT / 49cm 08434446189432 N12049TY
WNT / 51cm 08434446189494 N12051TY
WNT / 53cm 08434446190537 N12053TY
WNT / 55cm 08434446193040 N12055TY
WNT / 57cm 08434446194283 N12057TY
WNT / 60cm 08434446195327 N12060TY
