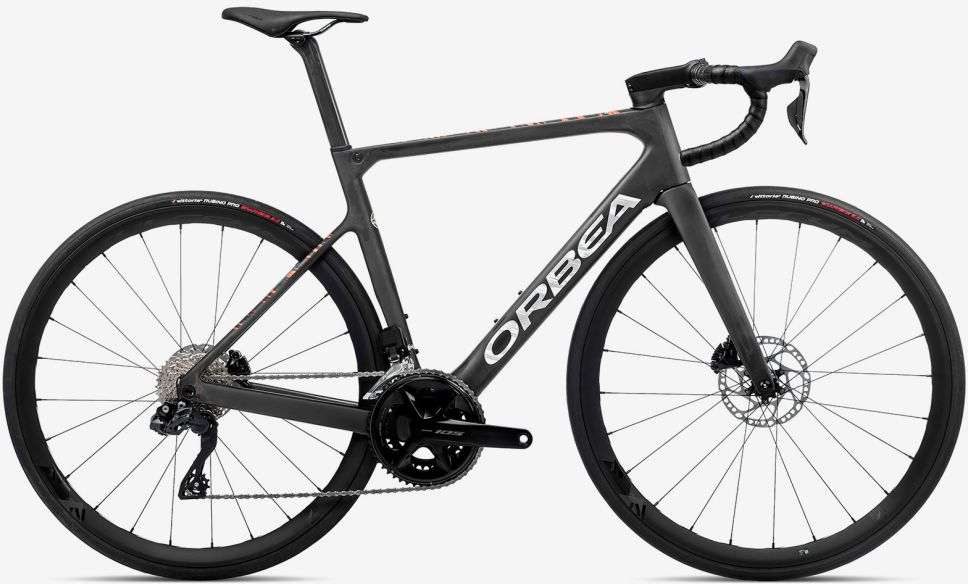

Orbea Orca M30iLTD PWR

Orbea Orca M30iLTD PWR
  • Color: Euskadi
  • Color: Glitter Anthracite/Blue Carbon View (Gloss)
  • Color: Red Wine (Gloss)/Carbon Raw (Matt)
  • Color: White Chic/Black (Gloss)
  • Color: WNT
$5,999.00
Please select options Unavailable

Details

Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.

Geometry

Geometry Chart:
Frame Size47495153555760
1 - SEAT TUBE (C-T) (mm) 440 460 480 500 520 540 570
2 - TOP TUBE (EFF) (mm) 510 523 535 548 560 576 590
3 - HEAD TUBE (mm) 105 113 130 148 168 186 213
4 - CHAINSTAY (mm) 408 408 408 408 408 408 408
5 - BB HEIGHT (mm) 267 267 267 269 269 269 269
6 - BB DROP (mm) 72 72 72 70 70 70 70
7 - WHEELBASE (mm) 972 976 980 981 991 1002 1016
8 - HEAD ANGLE 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
9 - SEAT ANGLE 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER (mm) 735 747 766 787 807 825 851
11 - REACH (mm) 367 372 377 382 388 395 401
12 - STACK (mm) 513 522 540 559 579 597 623
13 - FORK LENGTH (mm) 370 370 370 370 370 370 370
RAKE (mm) 48 48 48 43 43 43 43
Sizes:
Frame SizeRider Height (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube.
Fork Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels FULCRUM Racing 400 DB
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid
Tires Vittoria Rubino Pro IV G2.0 700x25c
Crankset Shimano 105 R7100 34x50T with left side 4iiii Powermeter
Shifters Shimano Di2 R7170
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M7100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP10 Carbon, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing
Seatpost Orbea Orca OMX, SB0/25, w/Micro tilt adjustment
Saddle Selle Italia SLR Boost SuperFlow L Manganese Rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Euskadi / 47cm 08434446186004 N11847TK
Euskadi / 49cm 08434446186066 N11849TK
Euskadi / 51cm 08434446186547 N11851TK
Euskadi / 53cm 08434446188282 N11853TK
Euskadi / 55cm 08434446188343 N11855TK
Euskadi / 57cm 08434446188404 N11857TK
Euskadi / 60cm 08434446188466 N11860TK
Glitter Anthracite/Blue Carbon View (Gloss) / 47cm 08434446185960 N11847BR
Glitter Anthracite/Blue Carbon View (Gloss) / 49cm 08434446186028 N11849BR
Glitter Anthracite/Blue Carbon View (Gloss) / 51cm 08434446186080 N11851BR
Glitter Anthracite/Blue Carbon View (Gloss) / 53cm 08434446187407 N11853BR
Glitter Anthracite/Blue Carbon View (Gloss) / 55cm 08434446188305 N11855BR
Glitter Anthracite/Blue Carbon View (Gloss) / 57cm 08434446188367 N11857BR
Glitter Anthracite/Blue Carbon View (Gloss) / 60cm 08434446188428 N11860BR
Red Wine (Gloss)/Carbon Raw (Matt) / 47cm 08434446185977 N11847BS
Red Wine (Gloss)/Carbon Raw (Matt) / 49cm 08434446186035 N11849BS
Red Wine (Gloss)/Carbon Raw (Matt) / 51cm 08434446186097 N11851BS
Red Wine (Gloss)/Carbon Raw (Matt) / 53cm 08434446187834 N11853BS
Red Wine (Gloss)/Carbon Raw (Matt) / 55cm 08434446188312 N11855BS
Red Wine (Gloss)/Carbon Raw (Matt) / 57cm 08434446188374 N11857BS
Red Wine (Gloss)/Carbon Raw (Matt) / 60cm 08434446188435 N11860BS
White Chic/Black (Gloss) / 47cm 08434446185984 N11847BZ
White Chic/Black (Gloss) / 49cm 08434446186042 N11849BZ
White Chic/Black (Gloss) / 51cm 08434446186103 N11851BZ
White Chic/Black (Gloss) / 53cm 08434446188268 N11853BZ
White Chic/Black (Gloss) / 55cm 08434446188329 N11855BZ
White Chic/Black (Gloss) / 57cm 08434446188381 N11857BZ
White Chic/Black (Gloss) / 60cm 08434446188442 N11860BZ
WNT / 47cm 08434446186011 N11847TY
WNT / 49cm 08434446186073 N11849TY
WNT / 51cm 08434446186974 N11851TY
WNT / 53cm 08434446188299 N11853TY
WNT / 55cm 08434446188350 N11855TY
WNT / 57cm 08434446188411 N11857TY
WNT / 60cm 08434446188473 N11860TY
