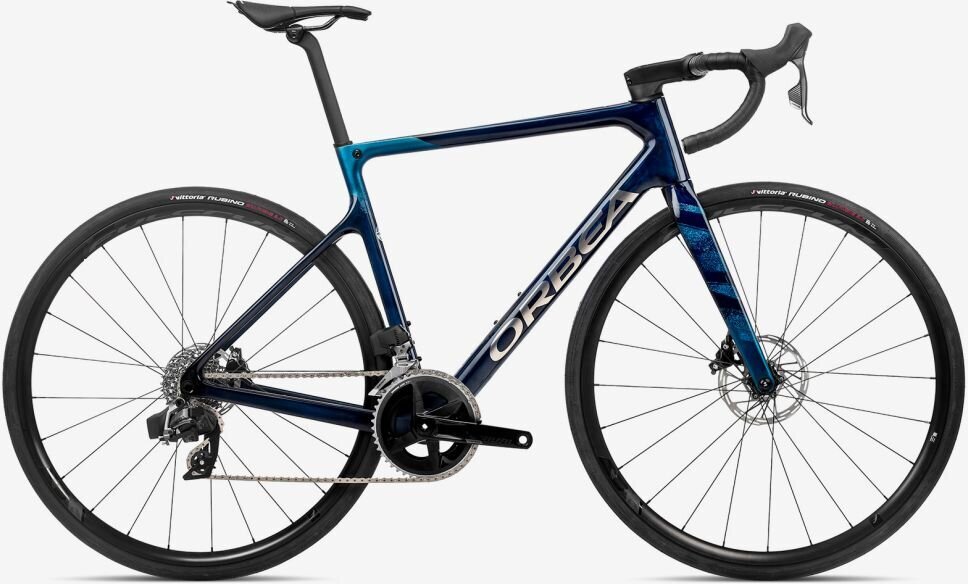

Orbea Orca M31eTeam

Orbea Orca M31eTeam
  • Color: Blue Carbon View/Titan (Gloss Matt)
  • Color: Cosmic Carbon View (Matt Gloss)
$4,699.00
Color: Blue Carbon View/Titan (Gloss Matt)
Size: Select size
Please select options Unavailable

Details

Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.

Geometry

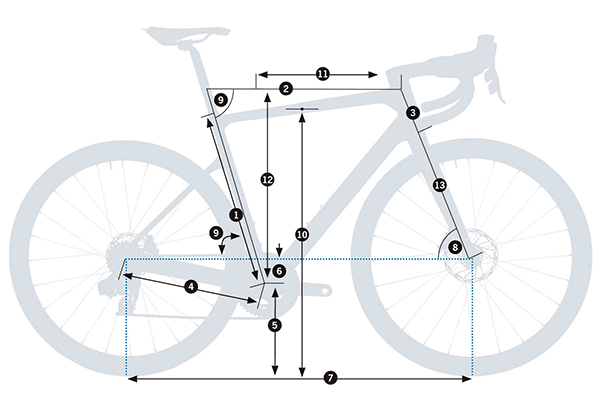

Geometry Chart:
Frame Size47495153555760
1 - SEAT TUBE (C-T) (mm) 440 460 480 500 520 540 570
2 - TOP TUBE (EFF) (mm) 510 523 535 548 560 576 590
3 - HEAD TUBE (mm) 105 113 130 148 168 186 213
4 - CHAINSTAY (mm) 408 408 408 408 408 408 408
5 - BB HEIGHT (mm) 267 267 267 269 269 269 269
6 - BB DROP (mm) 72 72 72 70 70 70 70
7 - WHEELBASE (mm) 972 976 980 981 991 1002 1016
8 - HEAD ANGLE 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
9 - SEAT ANGLE 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER (mm) 735 747 766 787 807 825 851
11 - REACH (mm) 367 372 377 382 388 395 401
12 - STACK (mm) 513 522 540 559 579 597 623
13 - FORK LENGTH (mm) 370 370 370 370 370 370 370
RAKE (mm) 48 48 48 43 43 43 43
Sizes:
Frame SizeRider Height (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing, EC/DC compatible
Fork Orbea Orca OMR ICR fork 2021, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru axle 12x100m, thread M12x2P1, Speed release compatible droput.
Wheels FULCRUM Racing 600 DB
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Hollow
Tires Vittoria Rubino Pro IV G2.0 700x28c
Crankset SRAM Rival Dub 33x46t
Shifters SRAM Rival eTap AXS
Front Derailleur SRAM Rival eTAP AXS
Rear Derailleur SRAM Rival eTAP AXS
Cassette/Freewheel SRAM XG-1250 10-30t 12-Speed
Chain SRAM Rival 12-Speed
Brakes SRAM Rival eTap AXS
Handlebars OC Road Performance RP20 Alu SL, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle Prologo Scratch-M5 Pas T2.0 size 140mm
Pedals Sold separately
Accessories & Extras Battery: SRAM eTap Powerpack

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Carbon View/Titan (Gloss Matt) / 47cm 08434446241765 N11347AG
Blue Carbon View/Titan (Gloss Matt) / 49cm 08434446241796 N11349AG
Blue Carbon View/Titan (Gloss Matt) / 51cm 08434446241826 N11351AG
Blue Carbon View/Titan (Gloss Matt) / 53cm 08434446241857 N11353AG
Blue Carbon View/Titan (Gloss Matt) / 55cm 08434446241888 N11355AG
Blue Carbon View/Titan (Gloss Matt) / 57cm 08434446241918 N11357AG
Blue Carbon View/Titan (Gloss Matt) / 60cm 08434446241949 N11360AG
Cosmic Carbon View (Matt Gloss) / 47cm 08434446241772 N11347AH
Cosmic Carbon View (Matt Gloss) / 49cm 08434446241802 N11349AH
Cosmic Carbon View (Matt Gloss) / 51cm 08434446241833 N11351AH
Cosmic Carbon View (Matt Gloss) / 53cm 08434446241864 N11353AH
Cosmic Carbon View (Matt Gloss) / 55cm 08434446241895 N11355AH
Cosmic Carbon View (Matt Gloss) / 57cm 08434446241925 N11357AH
Cosmic Carbon View (Matt Gloss) / 60cm 08434446241956 N11360AH
