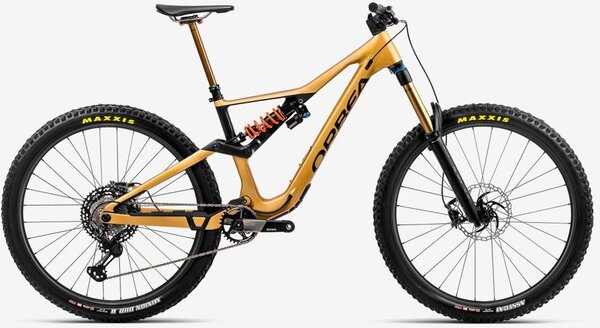

Orbea Rallon M LTD

Orbea Rallon M LTD
  • Color: Golden Sand/Black (Matt)
  • Color: Jade Green Carbon View (Gloss)/Stone Silver (Matt)
  • Color: Metallic Mulberry (Gloss)/Black (Matt)
$10,999.00
Color: Golden Sand/Black (Matt)
Size: Select size
Please select options Unavailable

Details

Rallon was forged on the racecourse and is the obvious choice of our EWS race team, but Rallon is always ready for fun outside of the tape and loves fast laps with friends, high-5's and near misses. Fearless, Rallon is up for hitting the biggest gaps in the park, smashing berms, and scorning braking bumps. Forget limits, forget distractions, just focus on fast.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 415 415 435 460
2 - TOP TUBE (EFF) 572 599 626 653
3 - HEAD TUBE 90 100 110 120
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT* 350/343 350/343 350/343 350/343
6 - BB DROP* 28/35 28/35 28/35 28/35
7 - WHEELBASE 1202 1231 1260 1290
8 - HEAD ANGLE* 64.5°/64° 64.5°/64° 64.5°/64° 64.5°/64°
9 - SEAT ANGLE* 77.5°/77 77.5°/77 77.5°/77 77.5°/77
10 - STANDOVER 737 737 754 774
11 - REACH 435 460 485 510
12 - STACK 619 628 637 646
13 - FORK LENGTH 587.7 587.7 587.7 587.7
*High Position / Low Position

Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 40 800 418/150
MEDIUM 170 40 800 418/150
LARGE 170 50 800 475/175
X-LARGE 170 50 800 530.7/200
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-170 59.1"-66.9" SMALL
160-180 63.0"-70.9" MEDIUM
170-190 66.9"-74.8" LARGE
180-200 70.9"-78.7" X-LARGE

Specs

Frame Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels. Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Fork Fox 38 Float Factory 170 Grip2 QR15x110 Kashima
Rear Shock Fox DHX2 Factory 2-Position Adjust SLS Spring Cr 230x60mm
Wheels OQUO Mountain Control MC32LTD Carbon
Tires Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR/ Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
Crankset Race Face Era 32t
Shifters Shimano XTR M9100
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus
Cassette/Freewheel Shimano XTR M9100 10-51T 12-Speed
Chain Shimano CN-9100
Chainguide: e*thirteen CL52 30-36t black
Brakes Shimano XTR M9120Hydraulic Disc
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost Fox Transfer Factory Kashima Dropper 31.6
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga Kium rail
Pedals Sold separately
Accessories & Extras Accessories Containers
Tools: OC Rear lever (Hex 6 & valve core removal)+OC FLP Multitool MT-20, Hex 2, 3, 4, 5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Golden Sand/Black (Matt) / Small 08434446184789 N27003LR
Golden Sand/Black (Matt) / Medium 08434446185052 N27005LR
Golden Sand/Black (Matt) / Large 08434446185083 N27007LR
Golden Sand/Black (Matt) / X-Large 08434446185113 N27009LR
Jade Green Carbon View (Gloss)/Stone Silver (Matt) / Small 08434446184697 N27003LQ
Jade Green Carbon View (Gloss)/Stone Silver (Matt) / Medium 08434446184963 N27005LQ
Jade Green Carbon View (Gloss)/Stone Silver (Matt) / Large 08434446185076 N27007LQ
Jade Green Carbon View (Gloss)/Stone Silver (Matt) / X-Large 08434446185106 N27009LQ
Metallic Mulberry (Gloss)/Black (Matt) / Small 08434446184604 N27003LP
Metallic Mulberry (Gloss)/Black (Matt) / Medium 08434446184871 N27005LP
Metallic Mulberry (Gloss)/Black (Matt) / Large 08434446185069 N27007LP
Metallic Mulberry (Gloss)/Black (Matt) / X-Large 08434446185090 N27009LP
