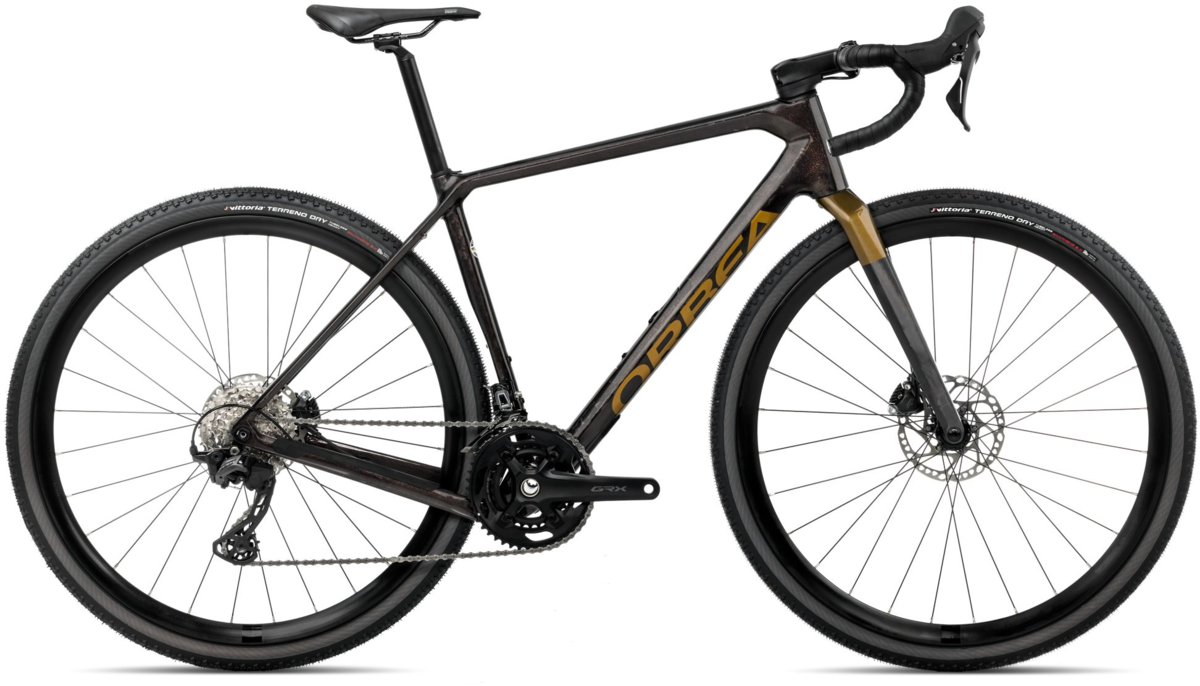

Orbea Terra M30Team

Orbea Terra M30Team
  • Color: Cosmic Carbon View-Metallic Olive Green (Gloss)
  • Color: Ivory White - Spicy Lime (Gloss)
  • Color: Wine Red Carbon View (Gloss)
$3,499.00
Color:
Size: Select size
Wheel Size: 700c

Details

Boundless

Freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities. It’s not just a ride; it’s an invitation to explore nature’s endless horizons.

Do you yearn to roam off the map or itch for your next long distance race? Terra is ready to conquer any adventure. Generous tire clearance and vibration-damping frame design smooth out rough terrain, letting you ride harder for longer. Multiple mounting points offer plenty of options to keep your gear secure. Whether you are racing to the horizon or exploring far off the beaten path, Terra is ready to take you wherever the ride leads.

Built to Ride Outside the Lines
Gravel geometry that goes the distance. Capability that backs you up.

Thanks to dialed gravel geometry, generous tyre clearance, all-day comfort and premium frame materials, it’s more than a bike – it’s your invitation to ride outside the lines.

Adventure Ready
Terra’s multiple mounting points keep your gear secure on long race days and gravel adventures alike.

When you need to tackle long-distance adventure races and off-road escapes, Terra is ready for the long haul, with mounts and storage to take everything you need along for the ride.

Tuned To You
Fit, wheels, components; tune every detail to create your ultimate ride, no matter the destination.

Terra's adaptability allows you to create a ride that feels made-to-measure; from dialed ergonomic fit options to premium OQUO wheelsets and OC Components.

Fully Loaded Mounting Points
Terra has multiple secure mounting points in the seat tube, top tube, downtube, and on the fork for jiggle-free bikepacking bags and bottle cages.

Fender Mounts
All Terra models have front and rear fender mounts for muck-free riding. Add fenders as a MyO option during purchase.

Lockr XXL
The updated frame storage offers an additional 35% volume. Enough space to store whatever you need- clothes, tools, or your favorite adventure fuel.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Seat Tube (C-T) (mm) 410 440 470 505 540 575
Top Tube (EFF) (mm) 535 547 561 573 585 596
Head Tube (mm) 110 132,5 153,5 175 198 218
Chainstay (mm) 430 430 430 430 430 430
BB Drop (mm) 80 80 80 80 80 80
BB Height (mm) 261 261 261 261 261 261
Wheelbase (mm) 1031 1041 1052 1061 1072 1081
Head Angle 69° 69,5° 70° 70,5° 70,8° 71°
Seat Angle 74º 74º 74º 74º 74º 74º
Rake (mm) 45 45 45 45 45 45
Standover (mm) 690 717 743 772 801 828
Reach (mm) 386 392 400 406 412 417
Stack (mm) 535 558 580 602 625 645
Fork Length (mm) 395 395 395 395 395 395
Trail (mm) 82,7 79,5 76,2 73 71,4 69,8
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 155 - 166 61.1" - 65.4"
Small 167 - 172 65.7" - 67.7"
Medium 173 - 179 68.1" - 70.5"
Large 180 - 185 70.9" - 72.8"
X-Large 186 - 191 73.2" - 75.2"
XX-Large 192 - 207 75.6" - 81.5"

Specs

Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.
Fork Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
Wheels Alloy, Tubeless, 700c, 21c
Axles Front: Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Tires Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Crankset Shimano GRX RX610 30x46t
Shifters Shimano GRX RX610
Front Derailleur Shimano GRX RX820
Rear Derailleur Shimano GRX RX820
Cassette/Freewheel Shimano HG710 11-36t 12-Speed
Chain Shimano M6100
Brakes Shimano RX410 Hydraulic disc
Handlebars OC Gravel GR31, Reach 70, Drop 110
Tape/Grips Orbea Anti-Slippery/Shock Proof
Stem OC Road Performance RP23, -5º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20
Saddle Fizik Terra Argo X7 Aluminium Rail 150mm
Pedals Sold separately
Accessories & Extras Accesories Containers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Small / 700c 08434446822469 S14702DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Small / 700c 08434446822506 S14703DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Medium / 700c 08434446822544 S14705DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Large / 700c 08434446822582 S14707DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Large / 700c 08434446822629 S14709DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / XX-Large / 700c 08434446822667 S14710DJ
Ivory White - Spicy Lime (Gloss) / X-Small / 700c 08434446822452 S14702DI
Ivory White - Spicy Lime (Gloss) / Small / 700c 08434446822490 S14703DI
Ivory White - Spicy Lime (Gloss) / Medium / 700c 08434446822537 S14705DI
Ivory White - Spicy Lime (Gloss) / Large / 700c 08434446822575 S14707DI
Ivory White - Spicy Lime (Gloss) / X-Large / 700c 08434446822612 S14709DI
Ivory White - Spicy Lime (Gloss) / XX-Large / 700c 08434446822650 S14710DI
Wine Red Carbon View (Gloss) / X-Small / 700c 08434446822438 S14702CG
Wine Red Carbon View (Gloss) / Small / 700c 08434446822476 S14703CG
Wine Red Carbon View (Gloss) / Medium / 700c 08434446822513 S14705CG
Wine Red Carbon View (Gloss) / Large / 700c 08434446822551 S14707CG
Wine Red Carbon View (Gloss) / X-Large / 700c 08434446822599 S14709CG
Wine Red Carbon View (Gloss) / XX-Large / 700c 08434446822636 S14710CG
