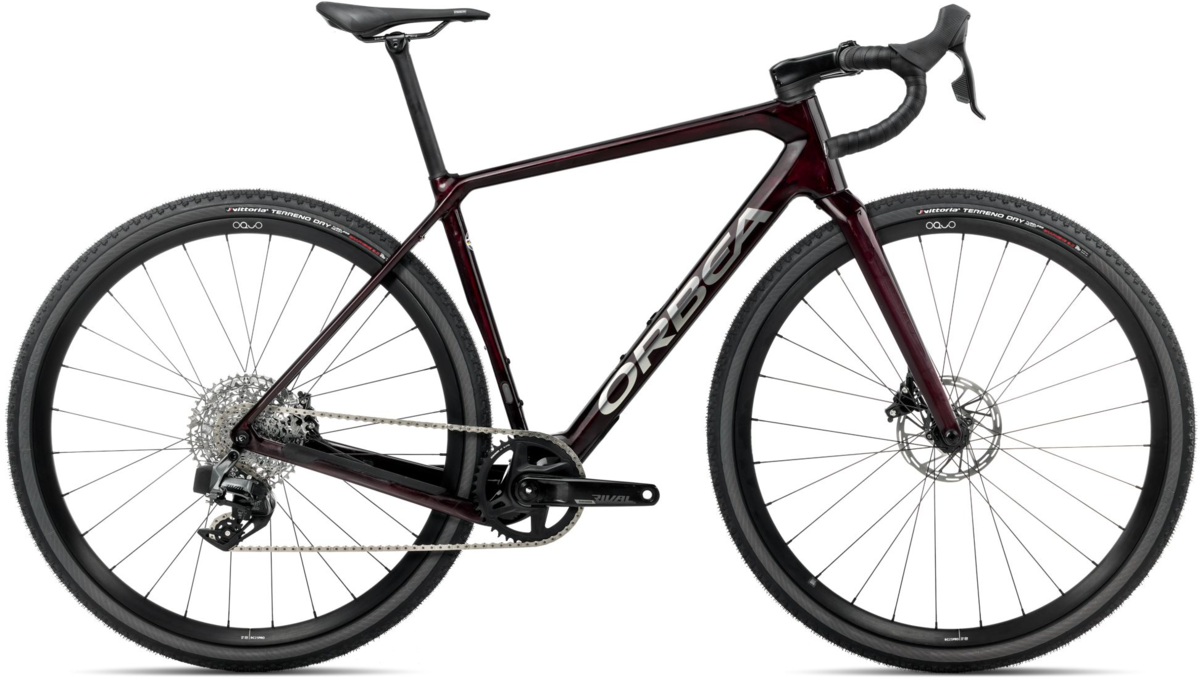

Orbea Terra M31eTeam 1X

Orbea Terra M31eTeam 1X
  • Color: Cosmic Carbon View-Metallic Olive Green (Gloss)
  • Color: Ivory White - Spicy Lime (Gloss)
  • Color: Wine Red Carbon View (Gloss)
$4,399.00
Color:
Size: Select size
Wheel Size: 700c

Details

Boundless

Freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities. It’s not just a ride; it’s an invitation to explore nature’s endless horizons.

Do you yearn to roam off the map or itch for your next long distance race? Terra is ready to conquer any adventure. Generous tire clearance and vibration-damping frame design smooth out rough terrain, letting you ride harder for longer. Multiple mounting points offer plenty of options to keep your gear secure. Whether you are racing to the horizon or exploring far off the beaten path, Terra is ready to take you wherever the ride leads.

Built to Ride Outside the Lines
Gravel geometry that goes the distance. Capability that backs you up.

Thanks to dialed gravel geometry, generous tyre clearance, all-day comfort and premium frame materials, it’s more than a bike – it’s your invitation to ride outside the lines.

Adventure Ready
Terra’s multiple mounting points keep your gear secure on long race days and gravel adventures alike.

When you need to tackle long-distance adventure races and off-road escapes, Terra is ready for the long haul, with mounts and storage to take everything you need along for the ride.

Tuned To You
Fit, wheels, components; tune every detail to create your ultimate ride, no matter the destination.

Terra's adaptability allows you to create a ride that feels made-to-measure; from dialed ergonomic fit options to premium OQUO wheelsets and OC Components.

Fully Loaded Mounting Points
Terra has multiple secure mounting points in the seat tube, top tube, downtube, and on the fork for jiggle-free bikepacking bags and bottle cages.

Fender Mounts
All Terra models have front and rear fender mounts for muck-free riding. Add fenders as a MyO option during purchase.

Lockr XXL
The updated frame storage offers an additional 35% volume. Enough space to store whatever you need- clothes, tools, or your favorite adventure fuel.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Seat Tube (C-T) (mm) 410 440 470 505 540 575
Top Tube (EFF) (mm) 535 547 561 573 585 596
Head Tube (mm) 110 132,5 153,5 175 198 218
Chainstay (mm) 430 430 430 430 430 430
BB Drop (mm) 80 80 80 80 80 80
BB Height (mm) 261 261 261 261 261 261
Wheelbase (mm) 1031 1041 1052 1061 1072 1081
Head Angle 69° 69,5° 70° 70,5° 70,8° 71°
Seat Angle 74º 74º 74º 74º 74º 74º
Rake (mm) 45 45 45 45 45 45
Standover (mm) 690 717 743 772 801 828
Reach (mm) 386 392 400 406 412 417
Stack (mm) 535 558 580 602 625 645
Fork Length (mm) 395 395 395 395 395 395
Trail (mm) 82,7 79,5 76,2 73 71,4 69,8
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 155 - 166 61.1" - 65.4"
Small 167 - 172 65.7" - 67.7"
Medium 173 - 179 68.1" - 70.5"
Large 180 - 185 70.9" - 72.8"
X-Large 186 - 191 73.2" - 75.2"
XX-Large 192 - 207 75.6" - 81.5"

Specs

Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.
Fork Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
Wheels Oquo Road Control RC25PRO
Axles Front: Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Tires Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Crankset SRAM Rival 1 XPLR Dub Wide 40t
Rear Derailleur SRAM Rival XPLR AXS 13s
Cassette/Freewheel SRAM XG-1351 XPLR 10-46t 13-Speed
Chain SRAM Rival 12-13 Speed
Brakes SRAM RIVAL AXS
Handlebars OC Gravel GR31, Reach 70, Drop 110
Tape/Grips Orbea Anti-Slippery/Shock Proof
Stem OC Road Performance RP23, -5º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Fizik Terra Argo X7 Aluminium Rail 150mm
Pedals Sold separately
Accessories & Extras Accesories Containers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Small / 700c 08434446823466 S15002DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Small / 700c 08434446823503 S15003DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Medium / 700c 08434446823602 S15005DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Large / 700c 08434446823640 S15007DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Large / 700c 08434446823688 S15009DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / XX-Large / 700c 08434446823725 S15010DJ
Ivory White - Spicy Lime (Gloss) / X-Small / 700c 08434446823459 S15002DI
Ivory White - Spicy Lime (Gloss) / Small / 700c 08434446823497 S15003DI
Ivory White - Spicy Lime (Gloss) / Medium / 700c 08434446823596 S15005DI
Ivory White - Spicy Lime (Gloss) / Large / 700c 08434446823633 S15007DI
Ivory White - Spicy Lime (Gloss) / X-Large / 700c 08434446823671 S15009DI
Ivory White - Spicy Lime (Gloss) / XX-Large / 700c 08434446823718 S15010DI
Wine Red Carbon View (Gloss) / X-Small / 700c 08434446823435 S15002CG
Wine Red Carbon View (Gloss) / Small / 700c 08434446823473 S15003CG
Wine Red Carbon View (Gloss) / Medium / 700c 08434446823510 S15005CG
Wine Red Carbon View (Gloss) / Large / 700c 08434446823619 S15007CG
Wine Red Carbon View (Gloss) / X-Large / 700c 08434446823657 S15009CG
Wine Red Carbon View (Gloss) / XX-Large / 700c 08434446823695 S15010CG
