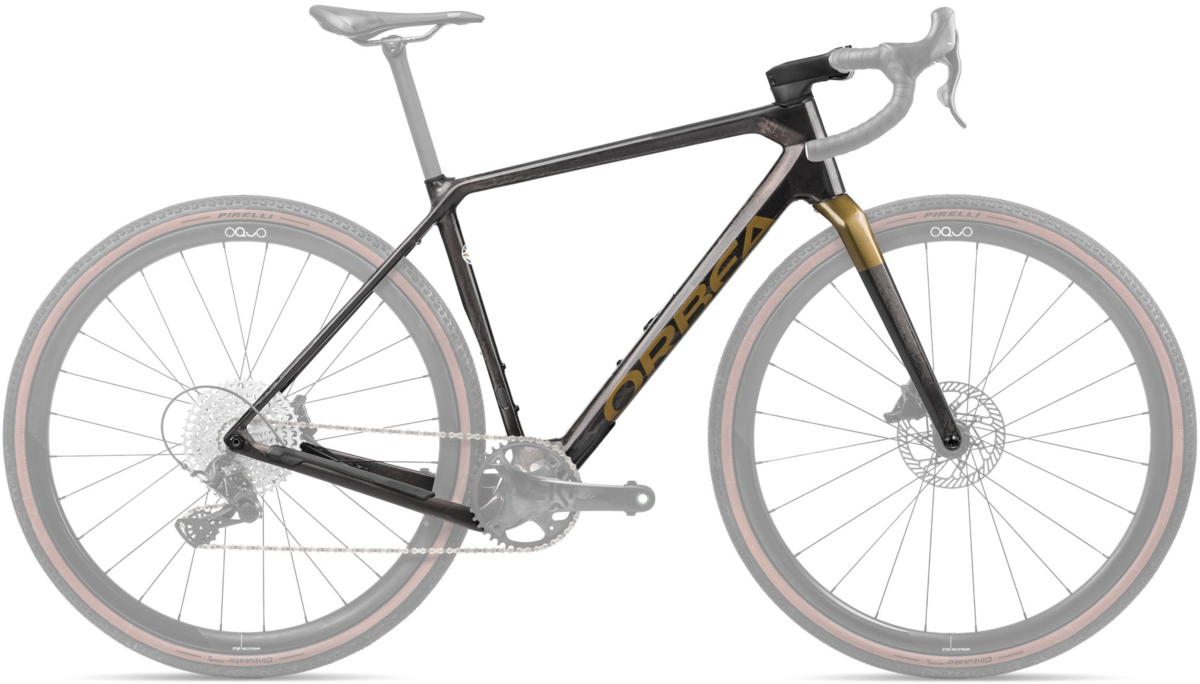

Orbea Terra OMR

Orbea Terra OMR
  • Color: Cosmic Carbon View-Metallic Olive Green (Gloss)
  • Color: Ivory White - Spicy Lime (Gloss)
  • Color: Wine Red Carbon View (Gloss)
$3,499.00
Color:
Size: Select size

Details

Boundless

Freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities. It’s not just a ride; it’s an invitation to explore nature’s endless horizons.

Do you yearn to roam off the map or itch for your next long distance race? Terra is ready to conquer any adventure. Generous tire clearance and vibration-damping frame design smooth out rough terrain, letting you ride harder for longer. Multiple mounting points offer plenty of options to keep your gear secure. Whether you are racing to the horizon or exploring far off the beaten path, Terra is ready to take you wherever the ride leads.

Built to Ride Outside the Lines
Gravel geometry that goes the distance. Capability that backs you up.

Thanks to dialed gravel geometry, generous tyre clearance, all-day comfort and premium frame materials, it’s more than a bike – it’s your invitation to ride outside the lines.

Adventure Ready
Terra’s multiple mounting points keep your gear secure on long race days and gravel adventures alike.

When you need to tackle long-distance adventure races and off-road escapes, Terra is ready for the long haul, with mounts and storage to take everything you need along for the ride.

Tuned To You
Fit, wheels, components; tune every detail to create your ultimate ride, no matter the destination.

Terra's adaptability allows you to create a ride that feels made-to-measure; from dialed ergonomic fit options to premium OQUO wheelsets and OC Components.

Fully Loaded Mounting Points
Terra has multiple secure mounting points in the seat tube, top tube, downtube, and on the fork for jiggle-free bikepacking bags and bottle cages.

Fender Mounts
All Terra models have front and rear fender mounts for muck-free riding. Add fenders as a MyO option during purchase.

Lockr XXL
The updated frame storage offers an additional 35% volume. Enough space to store whatever you need- clothes, tools, or your favorite adventure fuel.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Seat Tube (C-T) (mm) 410 440 470 505 540 575
Top Tube (EFF) (mm) 535 547 561 573 585 596
Head Tube (mm) 110 132,5 153,5 175 198 218
Chainstay (mm) 430 430 430 430 430 430
BB Drop (mm) 80 80 80 80 80 80
BB Height (mm) 261 261 261 261 261 261
Wheelbase (mm) 1031 1041 1052 1061 1072 1081
Head Angle 69° 69,5° 70° 70,5° 70,8° 71°
Seat Angle 74º 74º 74º 74º 74º 74º
Rake (mm) 45 45 45 45 45 45
Standover (mm) 690 717 743 772 801 828
Reach (mm) 386 392 400 406 412 417
Stack (mm) 535 558 580 602 625 645
Fork Length (mm) 395 395 395 395 395 395
Trail (mm) 82,7 79,5 76,2 73 71,4 69,8
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 155 - 166 61.1" - 65.4"
Small 167 - 172 65.7" - 67.7"
Medium 173 - 179 68.1" - 70.5"
Large 180 - 185 70.9" - 72.8"
X-Large 186 - 191 73.2" - 75.2"
XX-Large 192 - 207 75.6" - 81.5"

Specs

Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.
Fork Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
Axles Front: Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Stem OC Road Performance RP23, -5º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Accessories & Extras Accesories Containers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Small 08434446851858 S90202DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Small 08434446851896 S90203DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Medium 08434446851933 S90205DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / Large 08434446851971 S90207DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / X-Large 08434446852015 S90209DJ
Cosmic Carbon View-Metallic Olive Green (Gloss) / XX-Large 08434446852121 S90210DJ
Ivory White - Spicy Lime (Gloss) / X-Small 08434446851841 S90202DI
Ivory White - Spicy Lime (Gloss) / Small 08434446851889 S90203DI
Ivory White - Spicy Lime (Gloss) / Medium 08434446851926 S90205DI
Ivory White - Spicy Lime (Gloss) / Large 08434446851964 S90207DI
Ivory White - Spicy Lime (Gloss) / X-Large 08434446852008 S90209DI
Ivory White - Spicy Lime (Gloss) / XX-Large 08434446852046 S90210DI
Wine Red Carbon View (Gloss) / X-Small 08434446851827 S90202CG
Wine Red Carbon View (Gloss) / Small 08434446851865 S90203CG
Wine Red Carbon View (Gloss) / Medium 08434446851902 S90205CG
Wine Red Carbon View (Gloss) / Large 08434446851940 S90207CG
Wine Red Carbon View (Gloss) / X-Large 08434446851988 S90209CG
Wine Red Carbon View (Gloss) / XX-Large 08434446852022 S90210CG

Reviews
