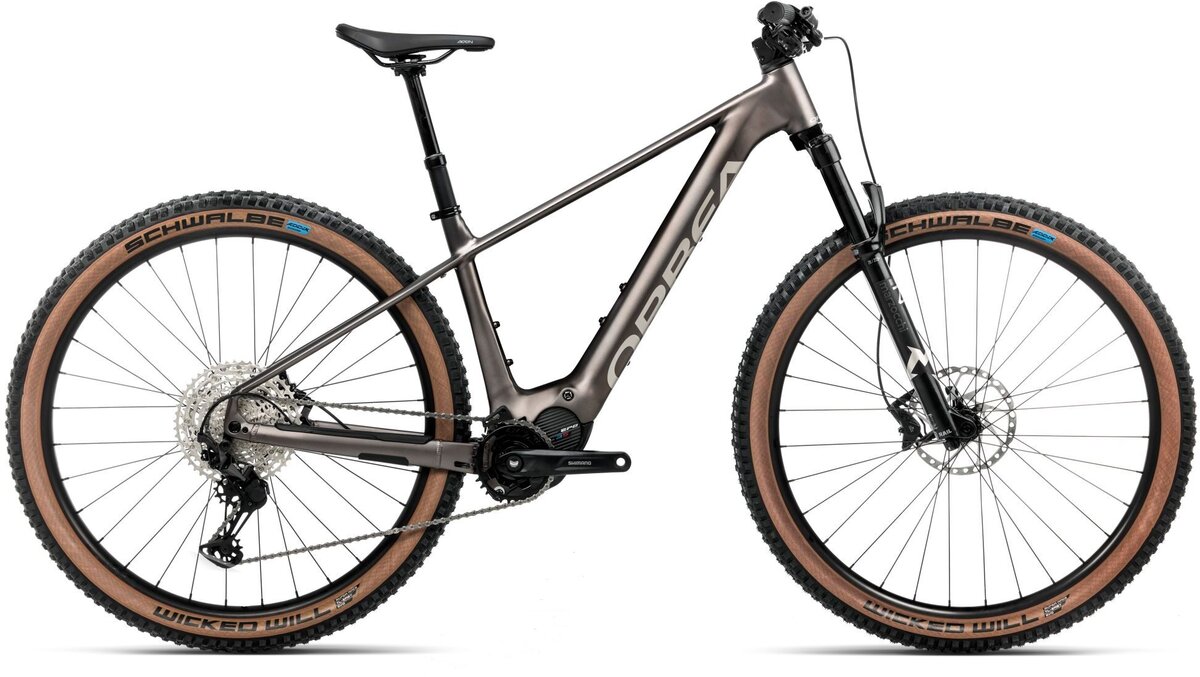

Orbea Urrun 10

Orbea Urrun 10
  • Color: Magnetic Bronze (Matt) - Silver (Gloss)
  • Color: Tanzanite - Blue (Gloss)
$4,999.00
Color:
Size: Select size
Wheel Size: 29-Inch

Details

Expand your horizons

Urrun means "far" in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come.

With new technologies and innovative integrations, it’s safe to say we are proud to have Urrun in the family. Escape, enjoy bigger adventures, go further, and explore harder. There are no more excuses.

Less E more bike means more natural assistance and longer rides.
A ride this good is only possible when you consider power and range together, right from the start. Everything is a balance.

That Magic Feel
Designing a little bit of compliance into a frame adds comfort and also helps the bike track the ground better, especially at speed.

A world of possibilities
Urrun offers new ways to ride, perfectly matching longer adventures or shorter, faster rides.

Our custom mounting kit, which is included with every Urrun, makes it easy to mount accessories, or it can be totally removed to give the cleanest look for mountain bike adventures.

Sizes:
MeasurementSMLXL
Seat Tube (C-T) 400 420 450 500
Top Tube (EFF) 575 596 624 649
Head Tube 100 105 115 135
Chainstay 445 445 445 445
BB Drop 63 63 63 63
BB Height 314 314 314 314
Wheelbase 1149 1171 1200 1228
Head Angle 66° 66° 66° 66°
Seat Angle 74.5° 74.5° 74.5° 74.5°
Rake 44 44 44 44
Standover 775 780 791 814
Reach 410 430 455 475
Stack 625 630 639 657
Fork Length 534 534 534 534
Sizes:
SizeHeight
S 59.1"-68.9"
M 63.0"-72.8"
L 66.9"-76.8"
XL 70.9"-80.7"

Specs

Fork Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Crankset Shimano Steps EM600
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Fizik Aidon 208x145mm manganese rail
Pedals VP-537 Black
Motor Shimano EP801
Battery Orbea Internal 630Wh
Controller/Display Shimano EN600
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Magnetic Bronze (Matt) - Silver (Gloss) / Small / 29-Inch 08434446801457 S62503XY
Magnetic Bronze (Matt) - Silver (Gloss) / Medium / 29-Inch 08434446801952 S62505XY
Magnetic Bronze (Matt) - Silver (Gloss) / Large / 29-Inch 08434446802416 S62507XY
Magnetic Bronze (Matt) - Silver (Gloss) / X-Large / 29-Inch 08434446802638 S62509XY
Tanzanite - Blue (Gloss) / Small / 29-Inch 08434446801709 S62503XZ
Tanzanite - Blue (Gloss) / Medium / 29-Inch 08434446802201 S62505XZ
Tanzanite - Blue (Gloss) / Large / 29-Inch 08434446802621 S62507XZ
Tanzanite - Blue (Gloss) / X-Large / 29-Inch 08434446802645 S62509XZ
