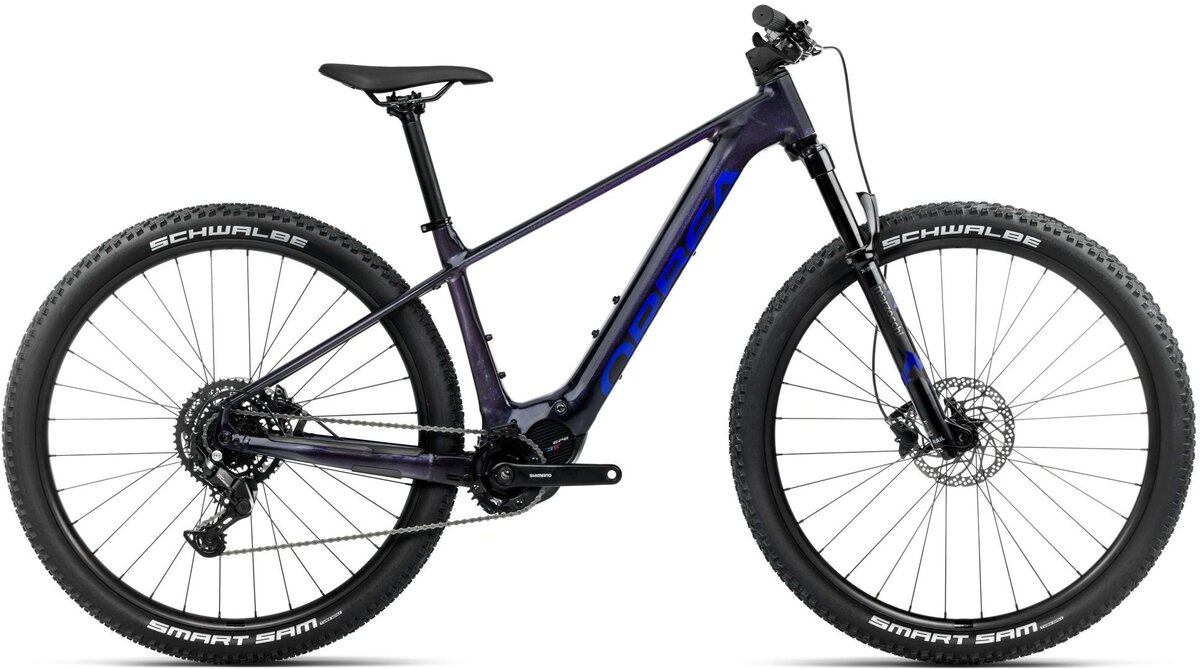

Orbea Urrun 30

Orbea Urrun 30
  • Color: Tanzanite - Blue (Gloss)
  • Color: Magnetic Bronze (Matt) - Silver (Gloss)
$3,199.00
Color:
Size: Select size
Wheel Size: 29-Inch

Details

Expand your horizons

Urrun means "far" in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come.

With new technologies and innovative integrations, it’s safe to say we are proud to have Urrun in the family. Escape, enjoy bigger adventures, go further, and explore harder. There are no more excuses.

Less E more bike means more natural assistance and longer rides.
A ride this good is only possible when you consider power and range together, right from the start. Everything is a balance.

That Magic Feel
Designing a little bit of compliance into a frame adds comfort and also helps the bike track the ground better, especially at speed.

A world of possibilities
Urrun offers new ways to ride, perfectly matching longer adventures or shorter, faster rides.

Our custom mounting kit, which is included with every Urrun, makes it easy to mount accessories, or it can be totally removed to give the cleanest look for mountain bike adventures.

Sizes:
MeasurementSMLXL
Seat Tube (C-T) 400 420 450 500
Top Tube (EFF) 575 596 624 649
Head Tube 100 105 115 135
Chainstay 445 445 445 445
BB Drop 63 63 63 63
BB Height 314 314 314 314
Wheelbase 1149 1171 1200 1228
Head Angle 66° 66° 66° 66°
Seat Angle 74.5° 74.5° 74.5° 74.5°
Rake 44 44 44 44
Standover 775 780 791 814
Reach 410 430 455 475
Stack 625 630 639 657
Fork Length 534 534 534 534
Sizes:
SizeHeight
S 59.1"-68.9"
M 63.0"-72.8"
L 66.9"-76.8"
XL 70.9"-80.7"

Specs

Fork SR Suntour XCR32 LO Coil 120mm Q15x110 Boost
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Smart Sam Performance, 29x2.35, Addix, Black
Shifters Shimano Cues SL-U4000
Rear Derailleur Shimano Cues U4000 GS Shadow
Cassette/Freewheel Shimano CS-LG300 11-46t 9-Speed
Chain Shimano LG500
Brakes Shimano MT201 Hydraulic Disc
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost Alloy 31.6x300mm Offset 0
Saddle Fortune QF-3091
Pedals VP-537 Black
Motor Shimano EP600
Battery Orbea Internal 540Wh (Optional 252 Wh Range Extender)
Controller/Display Shimano EN500
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Tanzanite - Blue (Gloss) / Small / 29-Inch 08434446860089 S62603XZ
Tanzanite - Blue (Gloss) / Medium / 29-Inch 08434446860126 S62605XZ
Tanzanite - Blue (Gloss) / Large / 29-Inch 08434446860140 S62607XZ
Tanzanite - Blue (Gloss) / X-Large / 29-Inch 08434446860164 S62609XZ
Magnetic Bronze (Matt) - Silver (Gloss) / Small / 29-Inch 08434446860065 S62603XY
Magnetic Bronze (Matt) - Silver (Gloss) / Medium / 29-Inch 08434446860102 S62605XY
Magnetic Bronze (Matt) - Silver (Gloss) / Large / 29-Inch 08434446860133 S62607XY
Magnetic Bronze (Matt) - Silver (Gloss) / X-Large / 29-Inch 08434446860157 S62609XY
