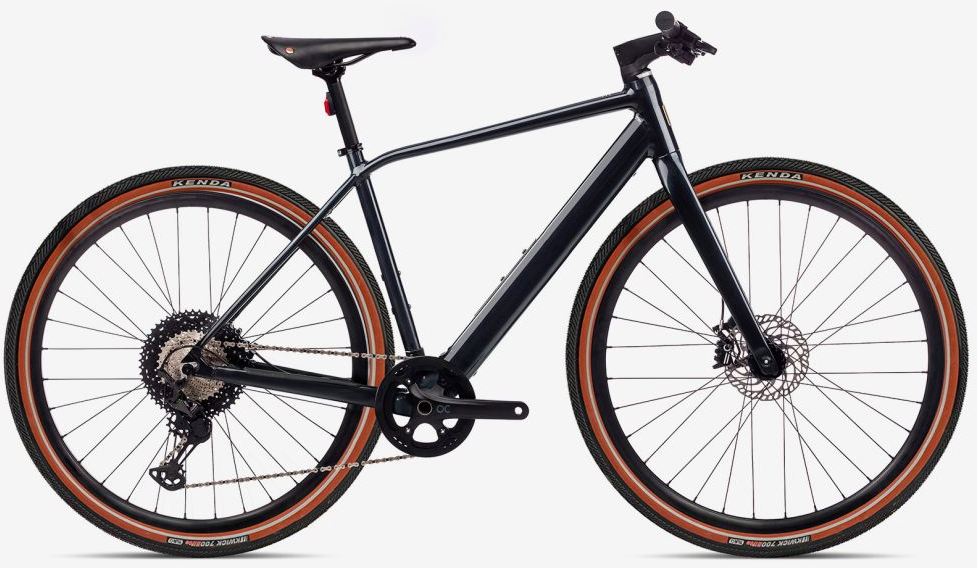

Orbea Vibe H10 20mph

Orbea Vibe H10 20mph
  • Color: Metallic Night Black (Gloss)
  • Color: Blue (Gloss)
  • Color: Light Green (Gloss)
  • Color: Metallic Dark Red (Gloss)
  • Color: Urban Green (Gloss)
$4,099.00
Color: Metallic Night Black (Gloss)
Size: Select size
Please select options Unavailable

Details

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride—with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

Geometry Chart:
SmallMediumLargeX-Large
1 - SEAT TUBE (C-T) 455 490 530 575
2 - TOP TUBE (EFF) 507 530 547 571
3 - HEAD TUBE 109 140 175 210
4 - CHAINSTAY 435 435 435 435
5 - BB HEIGHT 280 280 280 280
6 - BB DROP 76 76 76 76
7 - WHEELBASE 1026 1048 1065 1091
8 - HEAD ANGLE 70º 70.5º 71.5º 72º
9 - SEAT ANGLE 75º 74.5º 74º 74º
10 - STANDOVER 775 809 842 881
11 - REACH 380 395 410 430
12 - STACK 546 580 615 650
13 - FORK LENGTH 410 410 410 410
14 - RAKE 44 44 44 44
15 - WHEEL SIZE 712 712 712 712
Sizes:
Frame SizeRider height (in)
Small 59.1"-65.0"
Medium 65.0"-70.9"
Large 70.9"-76.8"
X-Large 76.8"-80.7"

Specs

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Wheels Alloy, Tubeless, 700c, 21c, 32H
Axles Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tires Kenda K1052 700x45C Reflective type TLR
Crankset Forged alloy, 42t, w/Chainguard
Shifters Shimano Deore M6100
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Chain KMC X12
Brakes Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Handlebars Alloy ,31.8mm, Rise 12mm, 700mm
Tape/Grips Brooks Comfort Cambium 130mm
Stem Alloy forged, -6º, ICR
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost Alloy, 27.2mm, Setback 0, for integrated light
Saddle Brooks Cambium C15 283x140
Pedals VP-537 Black
Motor Mahle motor hub X35 Plus
Battery Mahle 36V/6.9A 248Wh ANT+
Controller/Display Mahle iWoc TRIO
Charger Mahle X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Metallic Night Black (Gloss) / Small 08434446256103 N60846YF
Metallic Night Black (Gloss) / Medium 08434446256158 N60849YF
Metallic Night Black (Gloss) / Large 08434446256202 N60853YF
Metallic Night Black (Gloss) / X-Large 08434446256257 N60858YF
Blue (Gloss) / Small 08434446256110 N60846YG
Blue (Gloss) / Medium 08434446256165 N60849YG
Blue (Gloss) / Large 08434446256219 N60853YG
Blue (Gloss) / X-Large 08434446256264 N60858YG
Light Green (Gloss) / Small 08434446256141 N60846YJ
Light Green (Gloss) / Medium 08434446256196 N60849YJ
Light Green (Gloss) / Large 08434446256240 N60853YJ
Light Green (Gloss) / X-Large 08434446256295 N60858YJ
Metallic Dark Red (Gloss) / Small 08434446256127 N60846YH
Metallic Dark Red (Gloss) / Medium 08434446256172 N60849YH
Metallic Dark Red (Gloss) / Large 08434446256226 N60853YH
Metallic Dark Red (Gloss) / X-Large 08434446256271 N60858YH
Urban Green (Gloss) / Small 08434446256134 N60846YI
Urban Green (Gloss) / Medium 08434446256189 N60849YI
Urban Green (Gloss) / Large 08434446256233 N60853YI
Urban Green (Gloss) / X-Large 08434446256288 N60858YI
