Orbea Vibe H30 20mph

Orbea Vibe H30 20mph
  • Color: Blue (Gloss)
  • Color: Metallic Dark Red (Gloss)
  • Color: Metallic Night Black (Gloss)
  • Color: Urban Green (Gloss)
$3,199.00
Color: Blue (Gloss)
Size: Select size
Please select options Unavailable

Details

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride—with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

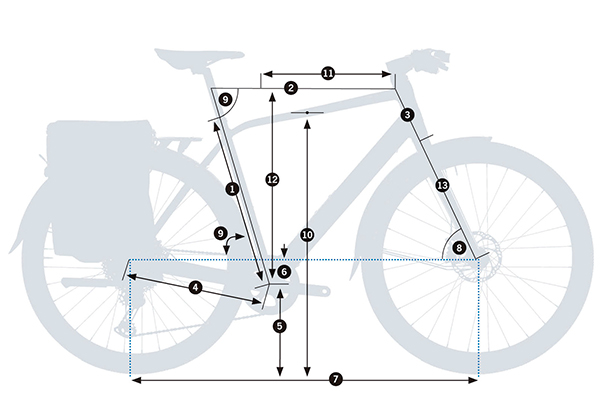

Geometry Chart:
SmallMediumLargeX-Large
1 - SEAT TUBE (C-T) 455 490 530 575
2 - TOP TUBE (EFF) 507 530 547 571
3 - HEAD TUBE 109 140 175 210
4 - CHAINSTAY 435 435 435 435
5 - BB HEIGHT 280 280 280 280
6 - BB DROP 76 76 76 76
7 - WHEELBASE 1026 1048 1065 1091
8 - HEAD ANGLE 70º 70.5º 71.5º 72º
9 - SEAT ANGLE 75º 74.5º 74º 74º
10 - STANDOVER 775 809 842 881
11 - REACH 380 395 410 430
12 - STACK 546 580 615 650
13 - FORK LENGTH 410 410 410 410
14 - RAKE 44 44 44 44
15 - WHEEL SIZE 712 712 712 712
Sizes:
Frame SizeRider height (in)
Small 59.1"-65.0"
Medium 65.0"-70.9"
Large 70.9"-76.8"
X-Large 76.8"-80.7"

Specs

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Wheels Alloy, Tubeless, 700c, 21c, 32H
Axles Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tires Kenda K1052 700x45C Reflective type+puncture protection
Crankset Forged alloy, 42t, w/Chainguard
Shifters Shimano Deore M4100
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M4100 11-46t 10-Speed
Chain KMC X10
Brakes Magura MT30 Hydraulic Disc Easy Route Connection
Handlebars Alloy ,31.8mm, Rise 12mm, 700mm
Stem Alloy forged, -6º, ICR
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost Alloy, 27.2mm, Setback 0, for integrated light
Saddle Selle Royal Lift 1215 URN 278x145mm
Pedals VP-537 Black
Motor Mahle motor hub X35 Plus
Battery Mahle 36V/6.9A 248Wh ANT+
Controller/Display Mahle iWoc TRIO
Charger Mahle X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue (Gloss) / Small 08434446243172 N60646YG
Blue (Gloss) / Medium 08434446243219 N60649YG
Blue (Gloss) / Large 08434446243257 N60653YG
Blue (Gloss) / X-Large 08434446243295 N60658YG
Metallic Dark Red (Gloss) / Small 08434446243189 N60646YH
Metallic Dark Red (Gloss) / Medium 08434446243226 N60649YH
Metallic Dark Red (Gloss) / Large 08434446243264 N60653YH
Metallic Dark Red (Gloss) / X-Large 08434446243301 N60658YH
Metallic Night Black (Gloss) / Small 08434446243165 N60646YF
Metallic Night Black (Gloss) / Medium 08434446243202 N60649YF
Metallic Night Black (Gloss) / Large 08434446243240 N60653YF
Metallic Night Black (Gloss) / X-Large 08434446243288 N60658YF
Urban Green (Gloss) / Small 08434446243196 N60646YI
Urban Green (Gloss) / Medium 08434446243233 N60649YI
Urban Green (Gloss) / Large 08434446243271 N60653YI
Urban Green (Gloss) / X-Large 08434446243318 N60658YI
