Details
URBAN LIGHTNESS

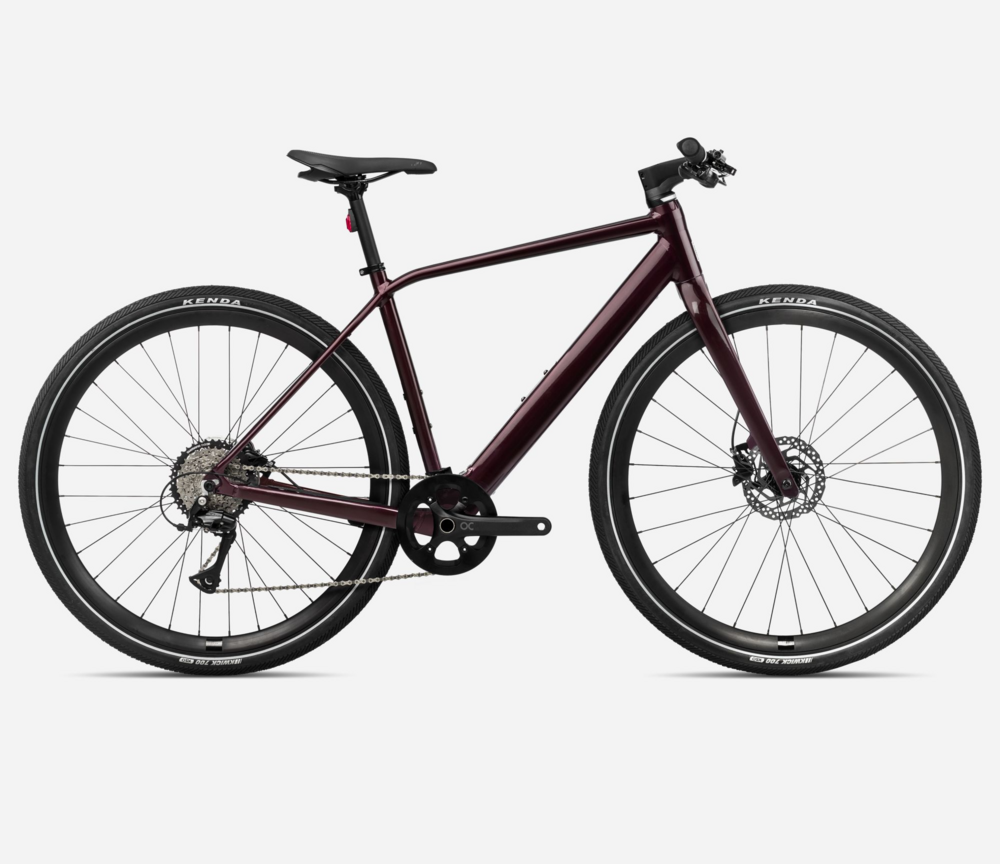

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride - with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.
ENOUGH ENERGY / MINIMALISM
Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.
URBAN GEOMETRY
The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.
CONNECTIVITY AND GPS NAVIGATION WITH OFF LINE MAPS
Connect your smartphone to the EBikeMotion app and enjoy in-depth system information plus ride and training details. Add your smartphone mount to Vibe´s handlebars and navigate new streets with ease thanks to the full turn-by-turn GPS with fully offline maps.
Max speed: 20mph
Frame Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
Seat Tube (C-T) (mm) | 455 | 490 | 530 | 575 |
Top Tube (EFF) (mm) | 507 | 530 | 547 | 571 |
Head Tube (mm) | 109 | 140 | 175 | 210 |
Chainstay (mm) | 435 | 435 | 435 | 435 |
BB Height (mm) | 280 | 280 | 280 | 280 |
BB Drop (mm) | 76 | 76 | 76 | 76 |
Wheelbase (mm) | 1026 | 1048 | 1065 | 1091 |
Head Angle | 70° | 70.5° | 71.5° | 72° |
Seat Angle | 75° | 74.5° | 74° | 74° |
Standover (mm) | 775 | 809 | 842 | 881 |
Reach (mm) | 380 | 395 | 410 | 430 |
Stack (mm) | 546 | 580 | 615 | 650 |
Fork Length (mm) | 410 | 410 | 410 | 410 |
Rake (mm) | 44 | 44 | 44 | 44 |
Wheel Size (mm) | 712 | 712 | 712 | 712 |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
Small | 150 - 165 | 4'11" - 5'5" |
Medium | 165 - 180 | 5'5" - 5'10" |
Large | 180 - 195 | 5'10" - 6'4" |
X-Large | 195 - 205 | 6'4" - 6'10" |
Specs
Pedals | VP-537 Black |
---|---|
Motor | Mahle motor hub X35 Plus |
Battery | Mahle 36V/6.9A 248Wh ANT+ |
Charger | Mahle X35 |
Controller/Display | Mahle iWoc TRIO |
Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
Brakes | Shimano MT200 Hydraulic Disc |
Saddle | Selle Royal Lift 1215 URN 278x145mm |
Wheels | Alloy, Tubeless, 700c, 21c |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Crankset | CR01, Forged alloy, 42t, w/Chainguard |
Seatpost | Alloy, 27.2mm, Setback 0, for integrated light |
Shifters | Shimano SL-M315 |
Rear Derailleur | Shimano Acera M3020 |
Stem | Alloy forged, -6º, ICR |
Chain | KMC X8 |
Tires | Kenda K1052 700x45C Reflective type+puncture protection |
Handlebars | Alloy ,31.8mm, Rise 12mm, 700mm |
Accessories & Extras |
Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50. Lezyne FENDER STVZO seatpost mounting 11 lumens Rear Light Knog OI Classic Bell |
Cassette/Freewheel | Shimano CS-HG400 11-40t 8-Speed |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Metallic Burgundy Red / Large / 29-inch | 8434446590337 | R60153W3 |
Ivory White / X-Large / 29-inch | 8434446590344 | R60158W1 |
Metallic Infinity Green / Medium / 29-inch | 8434446590290 | R60149W2 |
Metallic Burgundy Red / Small / 29-inch | 8434446590276 | R60146W3 |
Metallic Burgundy Red / Medium / 29-inch | 8434446590306 | R60149W3 |
Ivory White / Small / 29-inch | 8434446590252 | R60146W1 |
Metallic Burgundy Red / X-Large / 29-inch | 8434446590368 | R60158W3 |
Metallic Infinity Green / X-Large / 29-inch | 8434446590351 | R60158W2 |
Metallic Infinity Green / Small / 29-inch | 8434446590269 | R60146W2 |
Ivory White / Medium / 29-inch | 8434446590283 | R60149W1 |
Metallic Infinity Green / Large / 29-inch | 8434446590320 | R60153W2 |
Ivory White / Large / 29-inch | 8434446590313 | R60153W1 |
