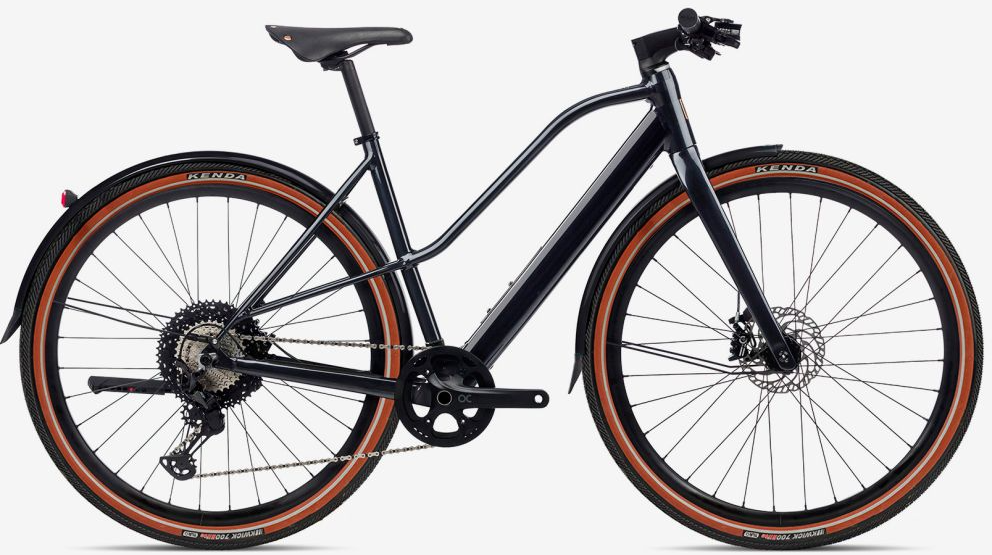

Orbea Vibe Mid H10 Mud 20mph

Orbea Vibe Mid H10 Mud 20mph
  • Color: Metallic Night Black (Gloss)
  • Color: Blue (Gloss)
  • Color: Light Green (Gloss)
  • Color: Metallic Dark Red (Gloss)
  • Color: Urban Green (Gloss)
$4,099.00
Color: Metallic Night Black (Gloss)
Size: Select size
Please select options Unavailable

Details

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride—with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

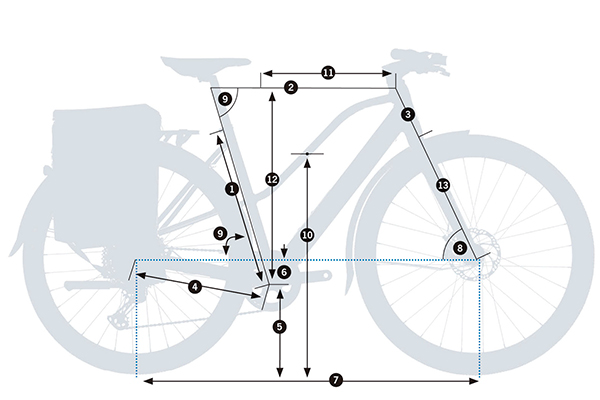

Geometry Chart:
SmallMediumLarge
1 - SEAT TUBE (C-T) 455 490 525
2 - TOP TUBE (EFF) 517 540 562
3 - HEAD TUBE 108 140 160
4 - CHAINSTAY 435 435 435
5 - BB HEIGHT 280 280 280
6 - BB DROP 76 76 76
7 - WHEELBASE 1026 1048 1040
8 - HEAD ANGLE 70º 70.5º 71.5º
9 - SEAT ANGLE 75º 74.5º 74º
10 - STANDOVER 723 732 747
11 - REACH 380 395 400
12 - STACK 546 580 600
13 - FORK LENGTH 410 410 410
14 - RAKE 44 44 44
15 - WHEEL SIZE 712 712 712
Sizes:
Frame SizeRider height (in)
Small 59.1"-65.0"
Medium 65.0"-68.9"
Large 68.9"-74.8"

Specs

Frame Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Wheels Alloy, Tubeless, 700c, 21c, 32H
Axles Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tires Kenda K1052 700x45C Reflective type TLR
Crankset Forged alloy, 42t, w/Chainguard
Shifters Shimano Deore M6100
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Chain KMC X12
Brakes Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Handlebars Alloy ,31.8mm, Rise 12mm, 700mm
Tape/Grips Brooks Comfort Cambium 130mm
Stem Alloy forged, -6º, ICR
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost Alloy, 27.2mm, Setback 20
Saddle Brooks Cambium C19 275x184
Pedals VP-537 Black
Motor Mahle motor hub X35 Plus
Battery Mahle 36V/6.9A 248Wh ANT+
Controller/Display Mahle iWoc TRIO
Charger Mahle X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Metallic Night Black (Gloss) / Small 08434446251832 N61446YF
Metallic Night Black (Gloss) / Medium 08434446251887 N61449YF
Metallic Night Black (Gloss) / Large 08434446251931 N61453YF
Blue (Gloss) / Small 08434446251849 N61446YG
Blue (Gloss) / Medium 08434446251894 N61449YG
Blue (Gloss) / Large 08434446251948 N61453YG
Light Green (Gloss) / Small 08434446251870 N61446YJ
Light Green (Gloss) / Medium 08434446251924 N61449YJ
Light Green (Gloss) / Large 08434446251979 N61453YJ
Metallic Dark Red (Gloss) / Small 08434446251856 N61446YH
Metallic Dark Red (Gloss) / Medium 08434446251900 N61449YH
Metallic Dark Red (Gloss) / Large 08434446251955 N61453YH
Urban Green (Gloss) / Small 08434446251863 N61446YI
Urban Green (Gloss) / Medium 08434446251917 N61449YI
Urban Green (Gloss) / Large 08434446251962 N61453YI
