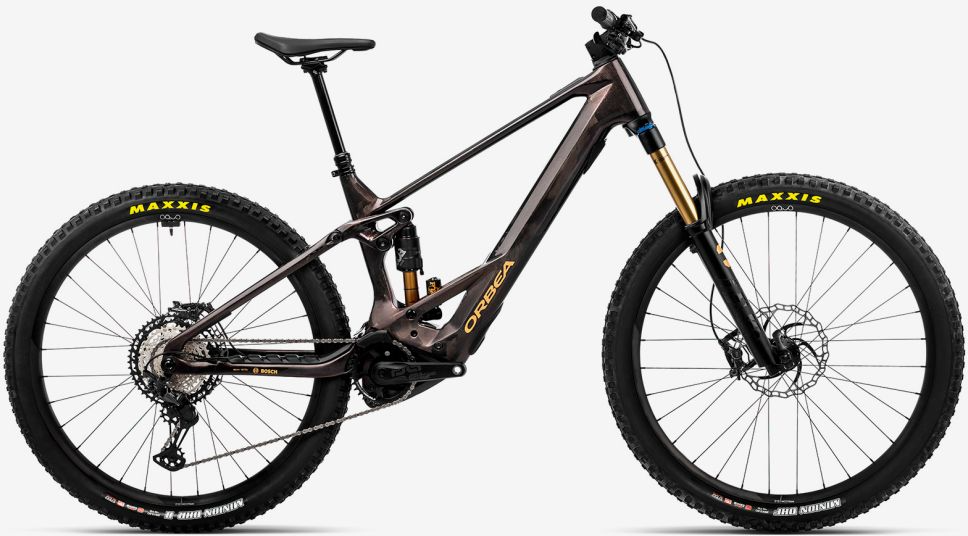

Orbea Wild M-Team 20mph

Orbea Wild M-Team 20mph
  • Color: Cosmic Carbon View (Matt-Gloss)
  • Color: Halo Silver/Tanzanite Carbon View (Matt)
$9,599.00
Please select options Unavailable

Details

We could tell you how Wild has the most powerful motor or battery capacity on the market. But we aren't going to. Wild takes us beyond such trivialities and into a world beyond power, where the ride is paramount, where the trails are endless and full of flow. Leave heavy, numb e-bikes behind and free your Wild.

Geometry Chart:
SmallMediumLargeX-Large
11 - SEAT TUBE (C-T) 415 415 435 460
22 - TOP TUBE (EFF) 573 595 622 649
33 - HEAD TUBE 110 120 130 140
44 - CHAINSTAY 448 448 448 448
55 - BB HEIGHT 353 353 353 353
66 - BB DROP 25 25 25 25
77 - WHEELBASE 1223 1247 1277 1306
88 - HEAD ANGLE 64º 64º 64º 64º
99 - SEAT ANGLE 77,5º 77,5º 77,5º 77,5º
1010 - STANDOVER 700 700 700 700
1111 - REACH 435 455 480 505
1212 - STACK 621 630 639 648
1313 - FORK LENGTH 575 575 575 575
14RAKE 44 44 44 44
Sizes:
Frame SizeRider height (in)
Small 59.1"-68.9"
Medium 63.0"-72.8"
Large 66.9"-76.8"
X-Large 70.9"-80.7"

Specs

Frame Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Fork Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
Rear Shock Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
Wheels OQUO Mountain Control MC32TEAM eBIKE
Tires Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Crankset e*thirteen Plus Alu
Chainrings e*thirteen e*spec Direct Mount 34T Boost
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M8100
Brakes Shimano XT M8120 Hydraulic Disc
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Fizik Aidon 208x145mm manganese rail
Pedals Sold separately
Motor BOSCH Performance Line CX BDU3741
Battery BOSCH Powertube 750Wh Horizontal BBP3775
BOSCH Mini Remote BRC3300
Controller/Display BOSCH System Controller BCR3100
Charger Bosch Charger 4A (110V) BPC3410

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cosmic Carbon View (Matt-Gloss) / Small 08434446317163 N66603V3
Cosmic Carbon View (Matt-Gloss) / Medium 08434446317194 N66605V3
Cosmic Carbon View (Matt-Gloss) / Large 08434446317224 N66607V3
Cosmic Carbon View (Matt-Gloss) / X-Large 08434446317255 N66609V3
Halo Silver/Tanzanite Carbon View (Matt) / Small 08434446317170 N66603V4
Halo Silver/Tanzanite Carbon View (Matt) / Medium 08434446317200 N66605V4
Halo Silver/Tanzanite Carbon View (Matt) / Large 08434446317231 N66607V4
Halo Silver/Tanzanite Carbon View (Matt) / X-Large 08434446317262 N66609V4
