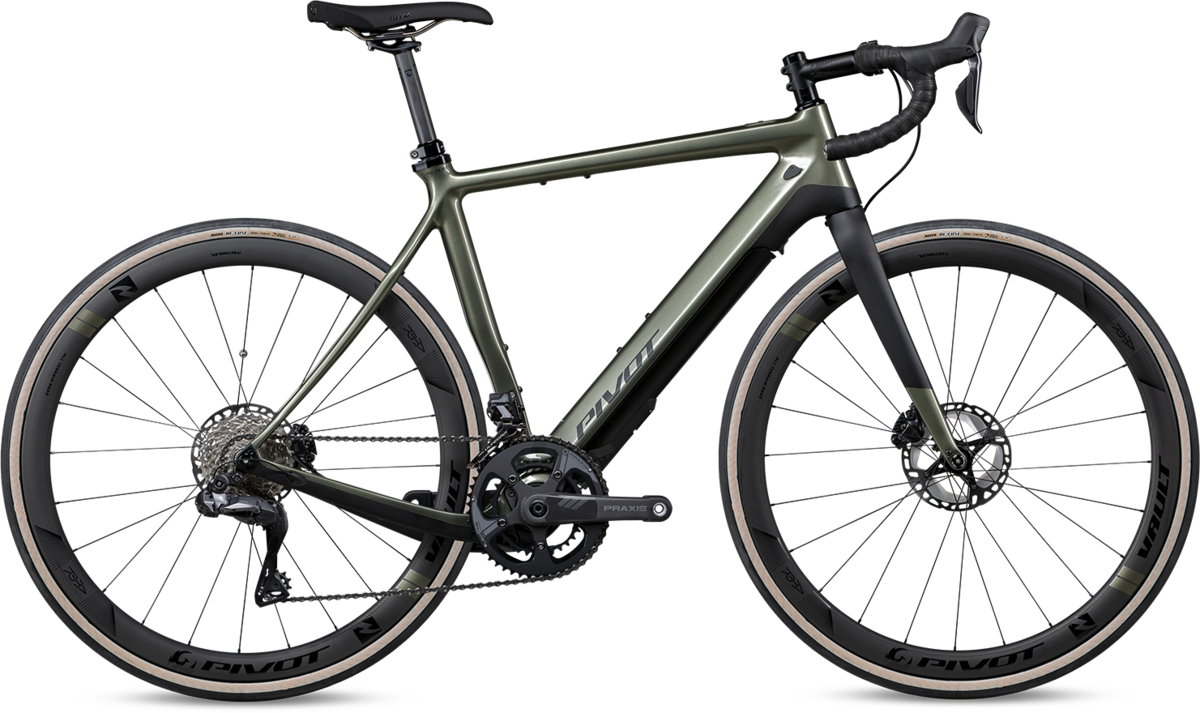

Pivot Cycles E-Vault Pro Ultegra Di2

Pivot Cycles E-Vault Pro Ultegra Di2
  • Color: Glacial Green Metallic
  • Color: Stealth
$4,999.00
$9,999.00
Color: Glacial Green Metallic
Size: Select size
Please select options Unavailable

Details

Tame the city streets and glide assertively through gridlock, potholed asphalt dissolving beneath your wheels. Take charge of your destiny. Trace that line of gravel arcing over the horizon.

DESIGN REFINEMENT
The E-Vault offers surefooted yet intuitively responsive handling, provides clearance for the widest tires available and features the ride-smoothing comfort of our ISO-FLEX damping technology. Derived from this highly versatile, multi-terrain all-star, the e-Vault enhances your ride experience with the seamless incorporation of a Fazua motor and battery module.

OWN THE ROAD LESS TRAVELED
Investment quality craftsmanship melds with integrated power-assist technology, affording you the agency to take charge of both destination and destiny, to ride farther and faster over more varied terrain than ever before. A world where boundaries fall away and possibilities are limitless.

PRODUCT DETAILS:
- Carbon Wheels
- Lightest, most compact Fazua Evation drive train and battery module with 252 watts/hours of pedal assist.
- Top-tube integrated sensitive touch control panel with three levels of riding assistance.
- Elegant full carbon frame design featuring proprietary Hollow Core internal molding technology for an optimal stiffness-to-weight ratio.
- Patent pending ISO FLEX Technology fits isolates the seatpost from the frame for extraordinary comfort with uncompromising frame stiffness and control.
- Next-generation gravel/road geometry for all-day comfort on any surface.
- Hidden fender mounts for clean, sleek accommodation of all-weather riding and commuting accessories.
- Additional Fazua batteries and custom on-the-bike battery bags available at Pivot retailers make it easy to carry a second battery.
- Fits up to 700 x 47c and 650b x 2.0" tires
- Sizes XS, S, M, L, XL for riders between 5' (152 cm) and 6'5" (196 cm).

Geometry

Geometry Chart:
X-SmallSmallMediumLargeX-Large
A Seat Tube Length (C-T) 45.8 cm 52.8 cm 54.8 cm 56.8 cm 58.8 cm
B Top Tube Length 51.5 cm 53.8 cm 56.5 cm 57.8 cm 59 cm
C Head Tube Length 10.5 cm 13 cm 15.5 cm 17 cm 19.5 cm
E Seat Tube Angle (Eff.) 74.8° 74.0° 73.5° 73.0° 73.0°
F Chainstay Length 42 cm 42 cm 42 cm 42 cm 42 cm
G Bottom Bracket Drop 7 cm 7 cm 7 cm 7 cm 7 cm
H Standover 70.5 cm 76.6 cm 78.7 cm 80.5 cm 82.5 cm
I Wheelbase 100 cm 100.2 cm 102 cm 102.8 cm 103.8 cm
Stack 52 cm 54.9 cm 57.4 cm 58.9 cm 61.2 cm
Reach 37.4 cm 38.1 cm 39.5 cm 39.8 cm 40 cm

Videos

Part Numbers

Option UPC MPN
Glacial Green Metallic / X-Small 196338094245 00EVTV170CULDI2GGMXSSTDHNSA1
Glacial Green Metallic / Small 196338094221 00EVTV170CULDI2GGMSMSTDHNSA1
Glacial Green Metallic / Medium 196338094214 00EVTV170CULDI2GGMMDSTDHNSA1
Glacial Green Metallic / Large 196338094207 00EVTV170CULDI2GGMLGSTDHNSA1
Glacial Green Metallic / X-Large 196338094238 00EVTV170CULDI2GGMXLSTDHNSA1
Stealth / Medium 196338094160 00EVTV170CULDI2BLKMDSTDHNSA1
Stealth / Large 196338094153 00EVTV170CULDI2BLKLGSTDHNSA1
Stealth / X-Large 196338094184 00EVTV170CULDI2BLKXLSTDHNSA1
Stealth / X-Small 196338094191 00EVTV170CULDI2BLKXSSTDHNSA1
Stealth / Small 196338094177 00EVTV170CULDI2BLKSMSTDHNSA1
