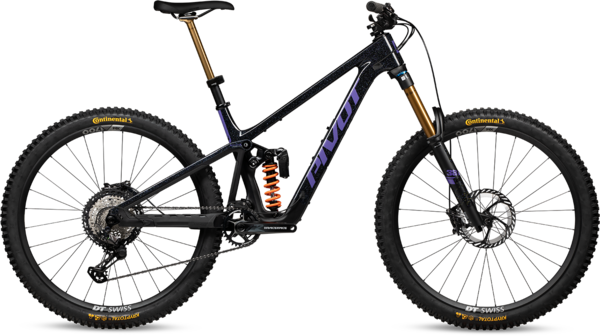

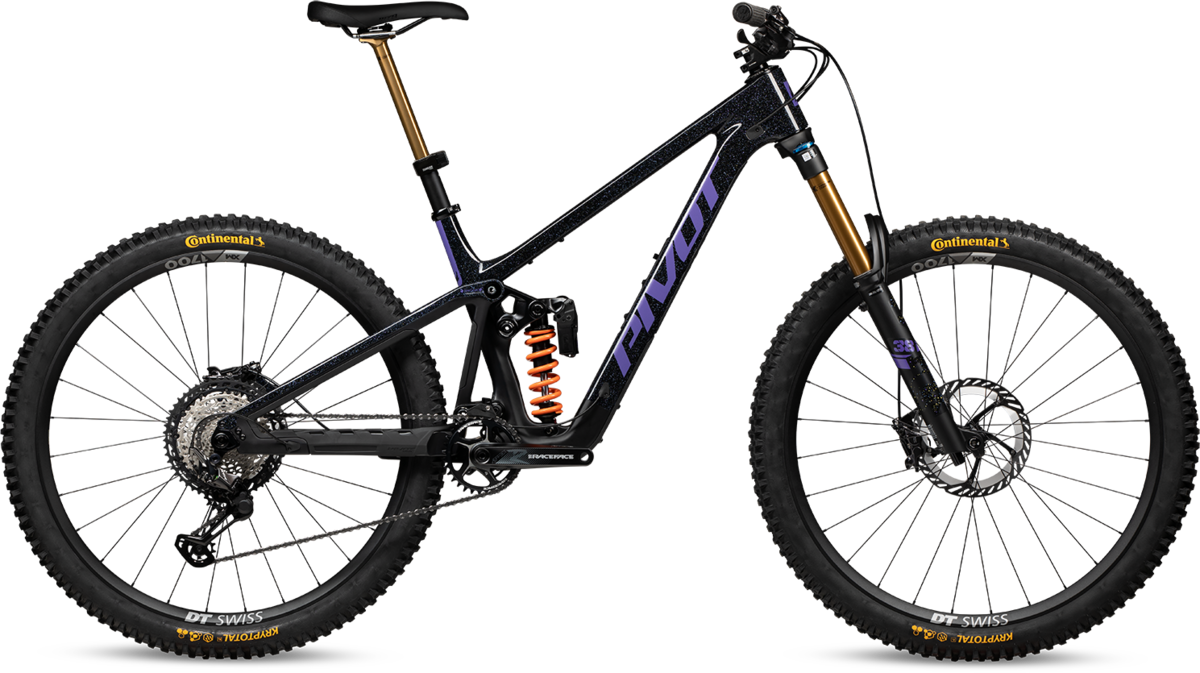

Pivot Cycles Firebird Pro XT 29 Alloy Wheels Live Valve
$9,999.00 - $10,199.00
Details
The enduro-bred Firebird is danger and daring dialed in. It’s built of carbon and courage, urging you to give in to gravity on the descent and willfully defying it on the climb. With nearly bottomless suspension, it’s so planted it may as well grow roots. Roots that can fly. Look, we don’t get it, either — but you will when you ride it.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube Length (C-T) (cm / in) | 37.5 / 14.8 | 41 / 16.1 | 44 / 17.3 | 47 / 18.5 |
| Top Tube Length (cm / in) | 59.8 / 23.5 – 59.7 / 23.5 | 62.4 / 24.6 – 62.3 / 24.5 | 64.1 / 25.2 – 64.0 / 25.2 | 66.5 / 26.2 – 66.4 / 26.1 |
| Head Tube Length (cm / in) | 9.5 / 3.7 | 10.8 / 4.3 | 11.8 / 4.6 | 12.8 / 5.0 |
| Head Tube Angle (degrees) | 64° / 64.6° | 64° / 64.6° | 64° / 64.6° | 64° / 64.6° |
| Seat Tube Angle (Eff.) (degrees) | 76° / 76.5° | 76.5° / 77° | 77° / 77.5° | 77° / 77.5° |
| Chainstay Length (cm / in) | 43.1 / 17.0 – 43.0 / 16.9 | 43.4 / 17.1 – 43.3 / 17.0 | 43.8 / 17.2 – 43.7 / 17.2 | 44.5 / 17.5 – 44.4 / 17.5 |
| Bottom Bracket Height (cm / in) | 35 / 13.8 – 35.6 / 14.0 | 35 / 13.8 – 35.6 / 14.0 | 35 / 13.8 – 35.6 / 14.0 | 35 / 13.8 – 35.6 / 14.0 |
| Bottom Bracket Drop (cm / in) | 2.0 / 0.79 – 1.42 / 0.56 | 2.0 / 0.79 – 1.42 / 0.56 | 2.0 / 0.79 – 1.42 / 0.56 | 2.0 / 0.79 – 1.42 / 0.56 |
| Standover (cm / in) | 66.2 / 26.1 – 66.7 / 26.3 | 67.2 / 26.5 – 67.8 / 26.7 | 69.3 / 27.3 – 69.9 / 27.5 | 70.4 / 27.7 – 70.9 / 27.9 |
| Wheelbase (cm / in) | 120.7 / 47.5 – 120.6 / 47.5 | 123.9 / 48.8 – 123.7 / 48.7 | 126.7 / 49.9 – 126.6 / 49.8 | 130 / 51.2 – 129.9 / 51.1 |
| Reach (cm / in) | 44.5 / 17.5 – 45.0 / 17.7 | 46.8 / 18.4 – 47.3 / 18.6 | 48.8 / 19.2 – 49.3 / 19.4 | 51.0 / 20.1 – 51.5 / 20.3 |
| Stack (cm / in) | 61.5 / 24.2 – 61.2 / 24.1 | 62.7 / 24.7 – 62.4 / 24.6 | 63.6 / 25.0 – 63.3 / 24.9 | 64.5 / 25.4 – 64.2 / 25.3 |
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Purple Galaxy / Small / 29-Inch | 196338271448 | 00FBCL529AXTAL-PPGSRPON |
| Purple Galaxy / Medium / 29-Inch | 196338271509 | 00FBCL529AXTAL-PPGMDRPON |
| Purple Galaxy / Large / 29-Inch | 196338271417 | 00FBCL529AXTAL-PPGLDRPON |
| Purple Galaxy / X-Large / 29-Inch | 196338271455 | 00FBCL529AXTAL-PPGXLDRPON |
| White Gold / Small / 29-Inch | 196338261890 | 00FBCV529AXTAL-WHGSRPON |
| White Gold / Medium / 29-Inch | 196338261876 | 00FBCV529AXTAL-WHGMDRPON |
| White Gold / Large / 29-Inch | 196338261852 | 00FBCV529AXTAL-WHGLDRPON |
| White Gold / X-Large / 29-Inch | 196338261913 | 00FBCV529AXTAL-WHGXLDRPON |
| Yolo Yellow / Small / 29-Inch | 196338261814 | 00FBCV529AXTAL-YELSRPON |
| Yolo Yellow / Medium / 29-Inch | 196338261791 | 00FBCV529AXTAL-YELMDRPON |
| Yolo Yellow / Large / 29-Inch | 196338261777 | 00FBCV529AXTAL-YELLDRPON |
| Yolo Yellow / X-Large / 29-Inch | 196338261838 | 00FBCV529AXTAL-YELXLDRPON |
