Pivot Cycles Firebird Pro XT/XTR - Alloy Wheels

Pivot Cycles Firebird Pro XT/XTR - Alloy Wheels
$7,999.00
Color: Cosmic Brown Metallic
Size: Select size
Wheel Size: 29-inch

Details

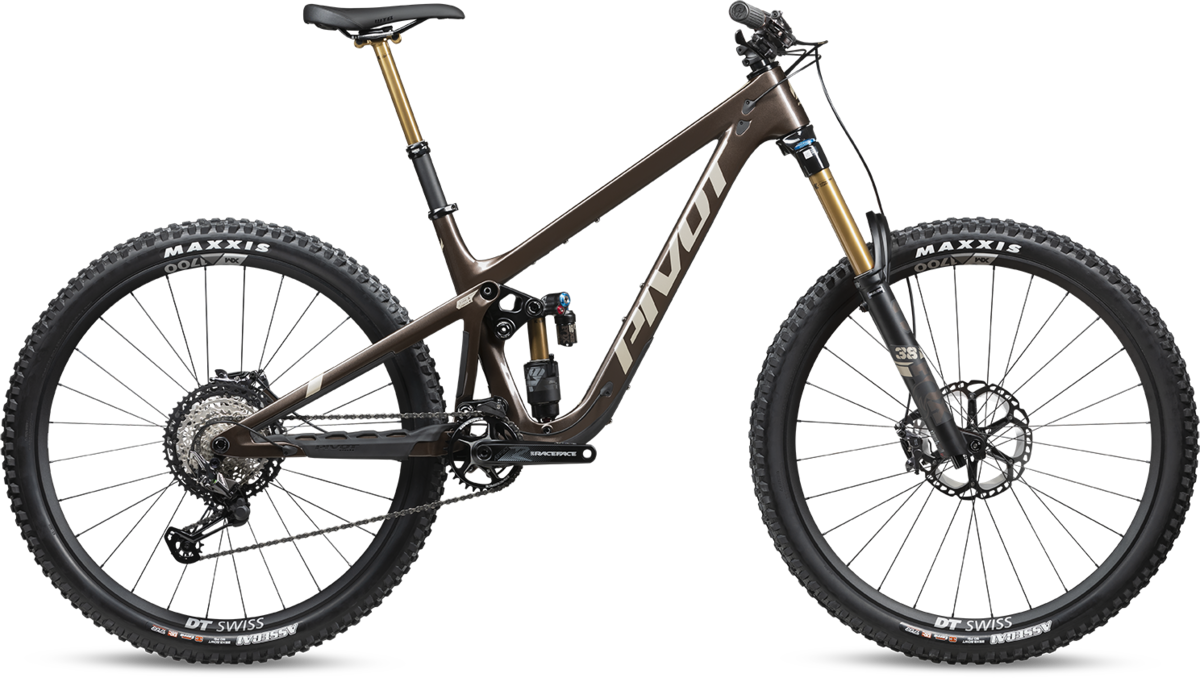

Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.

The Firebird’s Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

Live Valve Neo constantly adapts to the trail, delivering optimized suspension settings in real-time. This cutting-edge system enhances your ride by automatically adjusting for both efficiency and control, so you can focus on pushing your limits. With Live Valve Neo, experience unmatched precision and a ride that’s perfectly tuned to the demands of the trail.

- Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5’2” to 6’9” has a bike that feels perfect and performs at the optimum level for their siz

- Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized rider

- Phoenix DH-inspired longer dw-link® maximizes the Firebird’s rearward wheel-path for erasing square edge bumps and maximizing contro

- 165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance

Product Details:

- Equipped with 44mm offset 170mm-travel Fox Factory and Performance Series 38 forks
- Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options
- Compatible with both 29” and 27.5” wheel sizes without compromise thanks to the adjustable geometry for 29” 27.5” or MX wheel setups
- Fits tires up to 29x2.6” or 27.5x2.8” wide
- 12 x 157mm Super Boost Plus rear spacing adds stiffness and control
- 31.6mm size seatpost match with the Firebird’s short seat tube with deep insertions for longer travel posts
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
- 1.5” headtube provides increased front-end stiffness and tracking
- Hassle-free, full-length, internal cable routing
- All sizes fit a water bottle inside the front triangle
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
- Adjustable geometry with a flip chip upper link mount

Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (C-T) 37.5 41 44 47
Top Tube Length (cm) 59.8 / 59.7 62.4 / 62/3 64.1 / 64 66.5 / 66.4
Head Tube Length (cm) 9.5 10.8 11.8 12.8
HEad Tube Angle 64° / 64.6° 64° / 64.6° 64° / 64.6° 64° / 64.6°
Seat Tube Angle (Eff.) 76° / 76.5° 76.5° / 77° 77° / 77.5° 77° / 77.5°
Chainstay Length (cm) 43.1 / 43 43.4 / 43.3 43.8 / 43.7 44.5 / 44.4
Bottom Bracket Height (cm) 35 / 35.6 35 / 35.6 35 / 35.6 35 / 35.6
Bottom Bracket Drop (cm) 2 / 1.42 2 / 1.42 2 / 1.42 2 / 1.42
Standover (cm) 66.2 / 66.7 67.2 / 67.8 69.3 / 69.9 70.4 / 70.9
Wheelbase (cm) 120.7 / 120.6 123.9 / 123.7 126.7 / 126.6 130 / 129.9
Reach (cm) 44.5 / 45 46.8 / 47.3 48.8 / 49.3 51 / 51.5
Stack (cm) 61.5 / 61.2 62.7 / 62.4 63.6 / 63.3 64.5 / 64.2
Sizes:
Frame SizeRider Height (in)Rider Height (cm)
Small 5'2" – 5’8" 1,57 - 1,73 m
Medium 5'9" – 6'0" 1,73 - 1,83 m
Large 6'0" – 6'4' 1,83 - 1,93 m
X-Large 6'3" – 6'9' 1,90 - 2,06 m

Specs

Frame Firebird
Fork Fox Factory 38 29", 44mm offset, GRIP2 - 170mm
Rear Shock Fox Factory Float X2
Wheels DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
Tires Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Crankset Race Face Æffect R 32t
Shifters Shimano XT M8100 ISPEC EV 12-Speed
Rear Derailleur Shimano XTR M9100 SGS 12-Speed
Cassette/Freewheel Shimano XT M8100 10-51t
Chain Shimano CN-M8100 12-Speed
Brakes Shimano XT M8120 4-piston
Rotors Shimano XT CenterLock - 203mm
Handlebars Phoenix Team Low Rise Carbon - 800mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost Fox Transfer Factory Series 150mm (SM), 200mm (MD-XL)
Saddle Phoenix WTB Volt Pro (Medium Width)
Pedals Sold Separately

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Cosmic Brown Metallic / Small / 29-inch 196338182102 00F9CV329AXTA--CBMSMDRPFN
Cosmic Brown Metallic / Medium / 29-inch 196338182096 00F9CV329AXTA--CBMMDDRPFN
Cosmic Brown Metallic / Large / 29-inch 196338182119 00F9CV329AXTA--CBMLGDRPFN
Cosmic Brown Metallic / X-Large / 29-inch 196338182157 00F9CV329AXTA--CBMXLDRPFN
