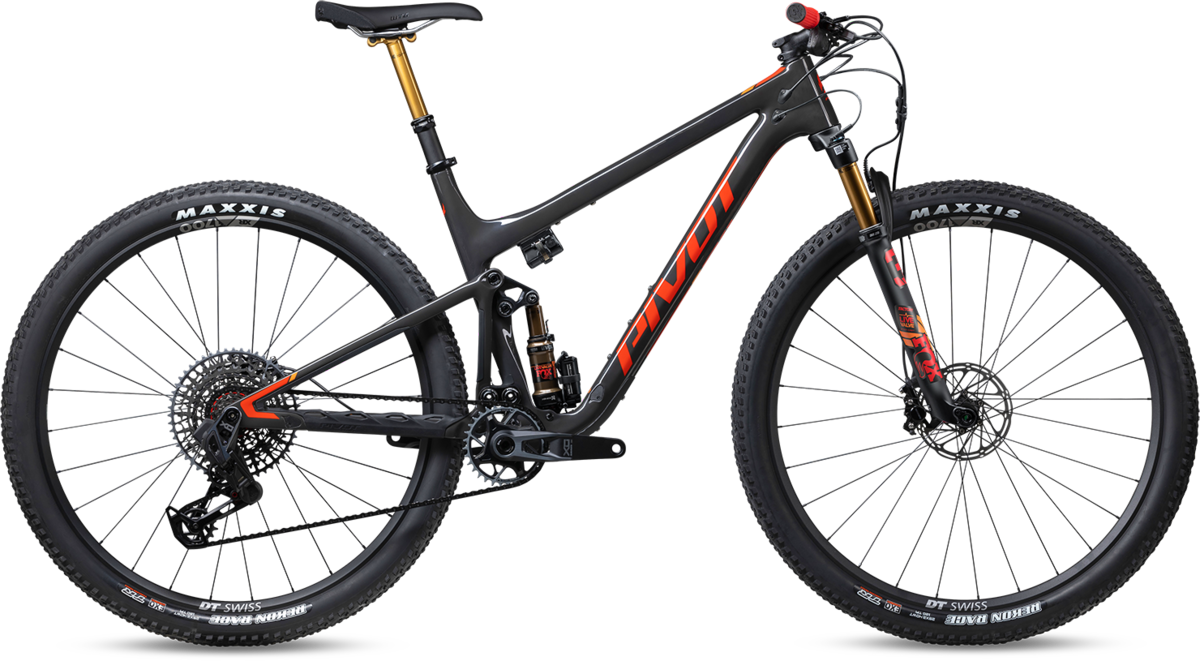

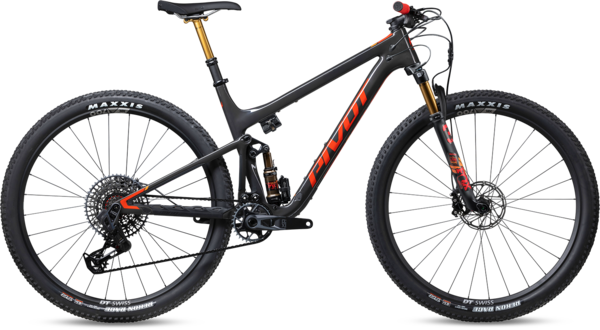

Pivot Cycles Mach 4 SL Pro X0 w/Fox Live Valve w/100mm Fork (Alloy Wheels)

Pivot Cycles Mach 4 SL Pro X0 w/Fox Live Valve w/100mm Fork (Alloy Wheels)
  • Color: Black Sunset
  • Color: Greystorm
$8,499.00
Please select options Unavailable

Details

A gravity defying cross country rocket ship.

Weighty Goals
Cross country racers know that every gram counts. Pivot's engineers didn't set out to cut a few grams – they insisted on slashing hundreds. Starting at 1845 grams, the Mach 4 SL takes a front row seat in the ultralight full suspension category and has the best stiffness to weight ratios we've ever created.

Short or Tall, It Fits Them All
Proper fit is critical to maximizing our body's output, so we made sure the Mach 4 SL fits the widest range of riders and all genders without compromise. A shorter stack, longer reach, and steeper seat angle put you in a powerful position to churn out the watts mile after mile.

Our Engineers Pushed the Boundaries
Optimized tube shapes, a more compact frame design, exotic hi-mod materials, and a dual upright, reinforced swingarm push strength and stiffness on this gravity defying cross country rocket ship.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-Large
Seat Tube Length (C-T) 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
Top Tube Length 56.8 cm 58.4 cm 61.3 cm 64.2 cm 66.5 cm
Head Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
Head Tube Angle 66.7° 66.7° 66.7° 66.7° 66.7°
Seat Tube Angle (Eff.) 74.7° 74.7° 74.7° 74.7° 74.7°
Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
Bottom Bracket Height 33.6 cm 33.6 cm 33.6 cm 33.6 cm 33.6 cm
Bottom Bracket Drop 3.8 cm 3.6 cm 3.6 cm 3.6 cm 3.6 cm
Standover 64.6 cm 65.6 cm 68.4 cm 67.9 cm 70.9 cm
Wheelbase 111.1 cm 112.8 cm 115.9 cm 118.9 cm 121.5 cm
Reach 39.7 cm 41.2 cm 43.7 cm 46.2 cm 48.2 cm
Stack 58.6 cm 58.9 cm 60.3 cm 61.7 cm 63.1 cm

Specs not provided by mfg. Call us for details.

Part Numbers

Option UPC MPN
Black Sunset / X-Small 196338051385 004SLV229AXOBDLBLSXSDRPLN
Black Sunset / Small 196338051323 004SLV229AXOBDLBLSSMDRPLN
Black Sunset / Medium 196338051293 004SLV229AXOBDLBLSMDDRPLN
Black Sunset / Large 196338051262 004SLV229AXOBDLBLSLGDRPLN
Black Sunset / X-Large 196338051354 004SLV229AXOBDLBLSXLDRPLN
Greystorm / X-Small 196338051538 004SLV229AXOBDLGRYXSDRPLN
Greystorm / Small 196338051477 004SLV229AXOBDLGRYSMDRPLN
Greystorm / Medium 196338051446 004SLV229AXOBDLGRYMDDRPLN
Greystorm / Large 196338051415 004SLV229AXOBDLGRYLGDRPLN
Greystorm / X-Large 196338051507 004SLV229AXOBDLGRYXLDRPLN
