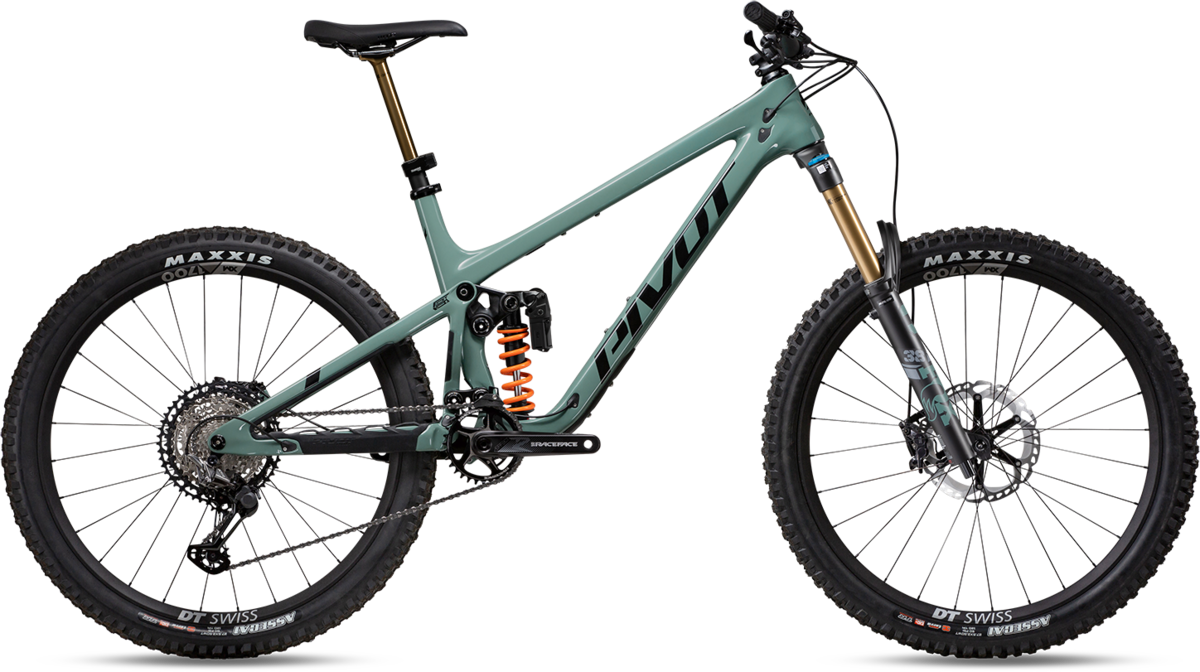

Pivot Cycles Mach 6 Pro XT/XTR Neo - Alloy Wheels
Details
Built to Party.
Our Ride builds pair supremely durable Marzocchi Bomber coil shocks with Bomber Z1 air forks. Pro and Team builds feature Fox DHX2 coil shocks and Fox 38 Grip2 forks; ideal set-ups for attacking technical terrain and banging out big days at the park.
Peg the Funmeter
The Mach 6 brings the benchmark stability and enduro performance of our 29" Firebird and infuses it with the unbridled fun that only 27.5" wheels can generate.
Product Details
- Aggressive geometry for the ultimate in all-mountain, enduro, bike park and extreme trail performance
- Phoenix DH inspired longer dw-link® maximizes the Mach 6’s rearward wheel-path for erasing square edge bumps and maximizing control
- 158mm rear suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 160mm front travel for unrivaled suspension performance
- 160mm-travel Fox 38 fork with a DHX2 coil shock on Pro and Team builds deliver legendary park and extreme terrain performance with confidence for the big hits
- Lightweight FOX 36 with Float X2 air shock and FOX Live Valve options maximize pedaling performance while reducing overall weight
- Ride level builds equipped with the incredible Marzocchi Bomber Z1 Air and Bomber CR coil-over shock for no hassle performance and maximum fun
- Quick accelerating 27.5” wheels guarantee a nimble, playful ride quality across all build options
- Fits tires up to 27.5x2.6” wide and comes stock with Maxxis Assegai 2.5” tires front and rear
- Hassle-free, full-length, internal cable routing with Pivot’s easy to service and ultra-quiet Pivot Cable Port System
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 4’10” to 6’2” has a bike that feels perfect and performs at the optimum level for their size
- Fits riders between 4’10” and 6’2” with X-Small to Large size offerings
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Geometry Position | High / Low | High / Low | High / Low | High / Low |
| Seat Tube Length (C-T) (cm) | 34.3 | 36.8 | 39.4 | 43.2 |
| Top Tube Length (Eff.) (cm) | 56.2 | 58.6 | 61.8 | 64.1 |
| Head Tube Length (cm) | 8.5 | 10 | 10.8 | 12 |
| Head Tube Angle | 65.5° / 65° | 65.5° / 65° | 65.5° / 65° | 65.5° / 65° |
| Seat Tube Angle (Eff.) | 76° / 75.5° | 76° / 75.5° | 76° / 75.5° | 76° / 75.5° |
| Chain Stay Length (cm) | 43.1 | 43.1 | 43.1 | 43.1 |
| Bottom Bracket Height (cm) | 35.9 / 35.3 | 35.9 / 35.3 | 35.9 / 35.3 | 35.9 / 35.3 |
| Standover Height (cm) | 64.2 / 63.6 | 65.9 / 65.3 | 68 / 67.4 | 68.2 / 67.6 |
| Wheelbase (cm) | 114.6 / 114.8 | 117.3 / 117.4 | 120.6 / 120.8 | 123.1 / 123.3 |
| Stack (cm) | 56.4 / 56.8 | 57.8 / 58.1 | 58.5 / 58.9 | 59.6 / 60 |
| Reach (cm) | 41.5 / 41 | 43.5 / 43 | 46.5 / 46 | 48.5 / 48 |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 4’10” – 5’4” |
| Small | 5‘4“ – 5‘7” |
| Medium | 5‘7” – 5’10" |
| Large | 5‘10” – 6‘2” |
Specs
| Frame | Mach 6 |
|---|---|
| Fork | Fox Factory 38 27.5", 44mm offset, GRIP2 - 160mm |
| Rear Shock | Fox Factory DHX Neo Live |
| Wheels | DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5" 15x110 F/12x157 R |
| Tires | Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA |
| Brakes | Shimano XT M8120 4-Piston |
| Crankset | Race Face Æffect R 32t |
| Shifters | Shimano XT M8100 12-Speed |
| Cassette/Freewheel | Shimano XT M8100 10-51t |
| Rear Derailleur | Shimano XTR SGS 12-Speed |
| Rotors |
Shimano XT CenterLock - 203mm Shimano XT CenterLock - 180mm |
| Headset | Pivot Precision Sealed Cartridge |
| Handlebars | Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG) |
| Chain | Shimano CN-M8100 12-Speed |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Seatpost | Fox Transfer Neo Factory Series 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG) |
| Saddle | Phoenix WTB Volt Pro (Medium Width) |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Mint Relic / X-Small / 27.5-inch | 196338079501 | 00M6CV427AXTAHLMNTXSDRPON |
| Mint Relic / Small / 27.5-inch | 196338079471 | 00M6CV427AXTAHLMNTSMDRPON |
| Mint Relic / Medium / 27.5-inch | 196338079440 | 00M6CV427AXTAHLMNTMDDRPON |
| Mint Relic / Large / 27.5-inch | 196338079419 | 00M6CV427AXTAHLMNTLGDRPON |
| Stealth / X-Small / 27.5-inch | 196338188180 | 00M6CV427AXTAHLSTLXSDRPON |
| Stealth / Small / 27.5-inch | 196338188166 | 00M6CV427AXTAHLSTLSMDRPON |
| Stealth / Medium / 27.5-inch | 196338188142 | 00M6CV427AXTAHLSTLMDDRPON |
| Stealth / Large / 27.5-inch | 196338188128 | 00M6CV427AXTAHLSTLLGDRPON |
