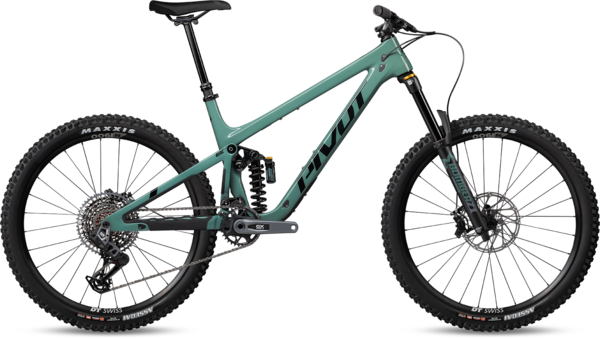

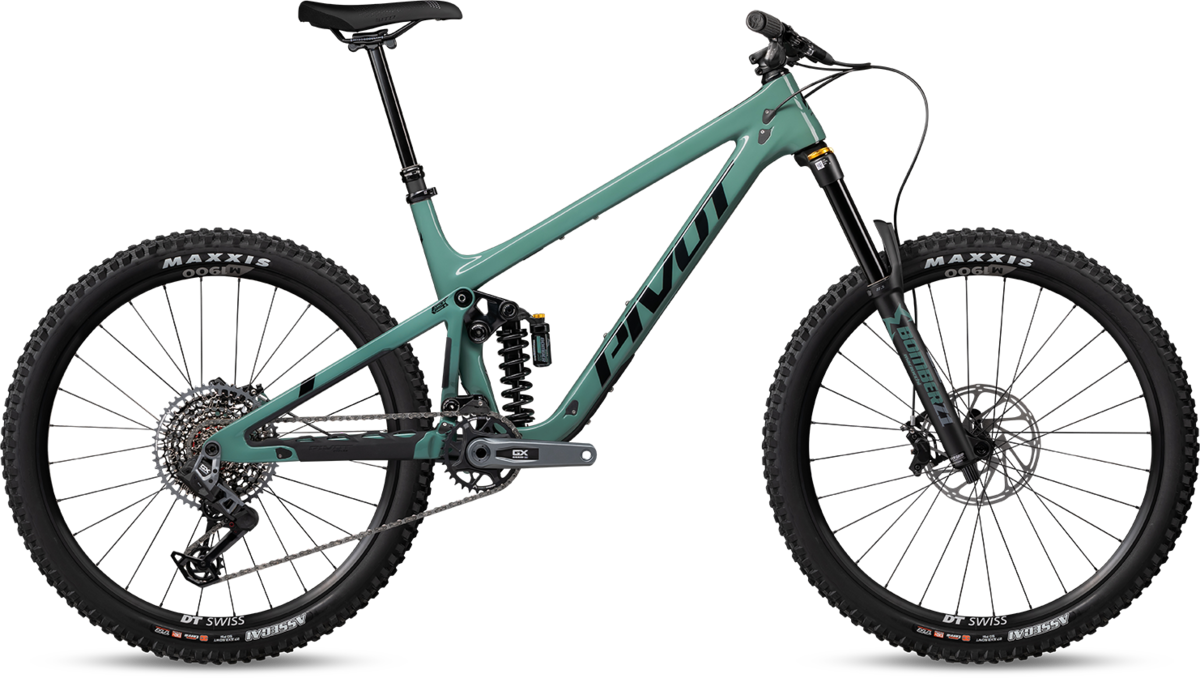

Pivot Cycles Mach 6 Ride GX Eagle Transmission - Coil

Pivot Cycles Mach 6 Ride GX Eagle Transmission - Coil
  • Color: Mint Relic
  • Color: Stealth
Color: Mint Relic
Size: Select size
Please select options Unavailable


Our Ride builds pair supremely durable Marzocchi Bomber coil shocks with Bomber Z1 air forks. Pro and Team builds feature Fox DHX2 coil shocks and Fox 38 Grip2 forks; ideal set-ups for attacking technical terrain and banging out big days at the park.

The Mach 6 brings the benchmark stability and enduro performance of our 29" Firebird and infuses it with the unbridled fun that only 27.5" wheels can generate.

- Aggressive geometry for the ultimate in all-mountain, enduro, bike park, and extreme trail performance
- Phoenix DH inspired longer dw-link® maximizes the Mach 6's rearward wheel-path for erasing square edge bumps and maximizing control
- 158mm rear suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 160mm front travel for unrivaled suspension performance
- 160mm-travel Fox 38 Grip 2 fork with a DHX2 coil shock on Pro and Team builds deliver legendary park and extreme terrain performance with confidence for the big hits
- Lightweight FOX 36 with Float X2 air shock and FOX Live Valve options maximize pedaling performance while reducing overall weight
- Ride level builds equipped with the incredible Marzocchi Bomber Z1 Air and Bomber CR coil-over shock for no-hassle performance and maximum fun
- Quick accelerating 27.5" wheels guarantee a nimble, playful ride quality across all build options
- Fits tires up to 27.5x2.6" wide and comes stock with Maxxis Assegai 2.5" tires front and rear
- Hassle-free, full-length, internal cable routing with Pivot's easy to service and ultra-quiet Pivot Cable Port System
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Pivot's full carbon frame features size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'2" has a bike that feels perfect and performs at the optimum level for their size
- Fits riders between 4'10" and 6'2" with X-Small to Large size offerings

Rider Height (In) 4'10" - 5'4" 5'4" - 5'7" 5'7" -5'10" 5'10" - 6'2'

Geometry and sizing

A-Seat Tube Length 34.3 cm 36.8 cm 39.4 cm 43.2 cm
B-Top Tube Length 56.2 cm 58.6 cm 61.8 cm 64.1 cm
C-Head Tube Length 8.5 cm 10 cm 10.8 cm 12 cm
D-Head Tube Angle 65.5° 65.5° 65.5° 65.5°
E-Seat Tube Angle (Eff.) 76.0° 76.0° 76.0° 76.0°
F-Chainstay Length 43.1 cm 43.1 cm 43.1 cm 43.1 cm
G-Bottom Bracket Height 35.9 cm 35.9 cm 35.9 cm 35.9 cm
H-Standover 64.2 cm 65.9 cm 68 cm 68.2 cm
I-Wheelbase 114.6 cm 117.3 cm 120.6 cm 123.1 cm
Reach 56.4 cm 57.8 cm 58.5 cm 59.6 cm
Stack 41.5 cm 43.5 cm 46.5 cm 48.5 cm


Part Numbers

Option UPC MPN
Mint Relic / X-Small 196338005043 00M6CV427AGXBH-MNTXSDRPMN
Mint Relic / Small 196338005029 00M6CV427AGXBH-MNTSMDRPMN
Mint Relic / Medium 196338005005 00M6CV427AGXBH-MNTMDDRPMN
Mint Relic / Large 196338004985 00M6CV427AGXBH-MNTLGDRPMN
Stealth / X-Small 196338005128 00M6CV427AGXBH-STLXSDRPMN
Stealth / Small 196338005104 00M6CV427AGXBH-STLSMDRPMN
Stealth / Medium 196338005081 00M6CV427AGXBH-STLMDDRPMN
Stealth / Large 196338005067 00M6CV427AGXBH-STLLGDRPMN
