Pivot Cycles Shadowcat Pro X01SP (Alloy Wheels)

Pivot Cycles Shadowcat Pro X01SP (Alloy Wheels)
  • Color: Blue Mirage
  • Color: Dangerfruit
$5,799.00
Color:
Size: Select size
Please select options Unavailable

Details

Blazing Speed and Creative Mayhem.

Shadowcat? Yes, Shadowcat.
Lithe, agile, sharp, fast and fun, the Shadowcat is a trail-carving expression of blazing speed and feline creative mayhem. Pivot's latest offering capitalizes on the acceleration and responsiveness of 27.5" wheels and acclaimed dw-link suspension to bring to life a bike that offers transformative capability for riders of every stripe.

Lithe
A new frame that weighs less than our impressively light Trail 429 frame. Heck, this frame weighs only 45 grams more than our featherlight Mach 4SL. We're replacing the beloved Mach 5.5 with a 140mm ripper of a bike that weighs less than many dedicated XC machines. Super-low standover; small kittens and playful cats rejoice!

Fast
Incredibly capable dw-Link suspension kinematics allow 140mm of travel to pedal with more snap and climb faster than many 120mm bikes. Serious lightweight. Cheetah chasing down an antelope acceleration. The soul of a trail shredder with the legs of Usain Bolt.

PRODUCT DETAILS:

Get everything you need to know about the Shadowcat.

- Ultra-Light Hollow Core Carbon Frame.
- Class-Leading Strength to Weight Ratio.
- Seamlessly Integrated Headset Cups save weight and ensure easy service.
- Excellent Standover height for all sizes.
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup.
- 140mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock.
- Equipped with a 44mm offset 160mm-travel Fox 36 fork.
- Agile and playful 27.5" wheels with tires up to 2.4"
- Long and low modern geometry for a confident ride.
- Short 430mm Chainstays for snappy cornering.
- Large Water Bottle Clearance on all sizes.
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.
- Hassle-free full internal routing with Pivot cable port system.
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world.

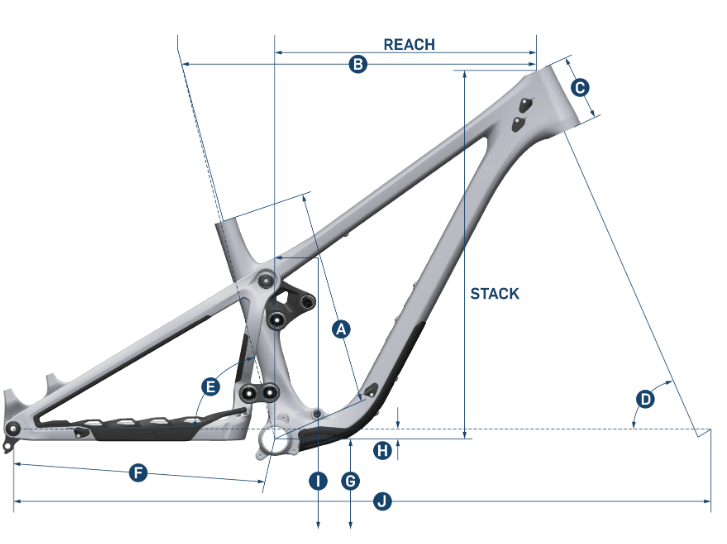

Geometry

Sizes:
160mm ForkXSSMMDLG
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm
B Top Tube Length 56.9 cm 59.5 cm 62.7 cm 65.0 cm
C Head Tube Length 8.5 cm 11.0 cm 12.0 cm 13.0 cm
D Head Tube Angle 65.8° 65.8° 65.8° 65.8°
E Seat Tube Angle (Eff.) 76° 76° 76° 76°
F Chainstay Length 43.0 cm 43.0 cm 43.0 cm 43.0 cm
G Bottom Bracket Height 34.0 cm 34.0 cm 34.0 cm 34.0 cm
H Bottom Bracket Drop 1.7 cm 1.7 cm 1.7 cm 1.7 cm
I Standover Height 62.4 cm 63.8 cm 65.7 cm 67.1 cm
I Wheelbase 114.2 cm 117.2 cm 120.6 cm 123.0 cm
Stack 58.2 cm 60.5 cm 61.4 cm 62.3 cm
Reach 41.0 cm 43.0 cm 46.0 cm 48.0 cm

Specs not provided by mfg. Call us for details.

Videos

Part Numbers

Option UPC MPN
Blue Mirage / X-Small 196338147002 00SCTV127AXOASPBLMXSDRPPN
Blue Mirage / Small 196338146982 00SCTV127AXOASPBLMSMDRPPN
Blue Mirage / Medium 196338146968 00SCTV127AXOASPBLMMDDRPPN
Blue Mirage / Large 196338146944 00SCTV127AXOASPBLMLGDRPPN
Dangerfruit / X-Small 196338147088 00SCTV127AXOASPDFRXSDRPPN
Dangerfruit / Small 196338147064 00SCTV127AXOASPDFRSMDRPPN
Dangerfruit / Medium 196338147040 00SCTV127AXOASPDFRMDDRPPN
Dangerfruit / Large 196338147026 00SCTV127AXOASPDFRLGDRPPN
