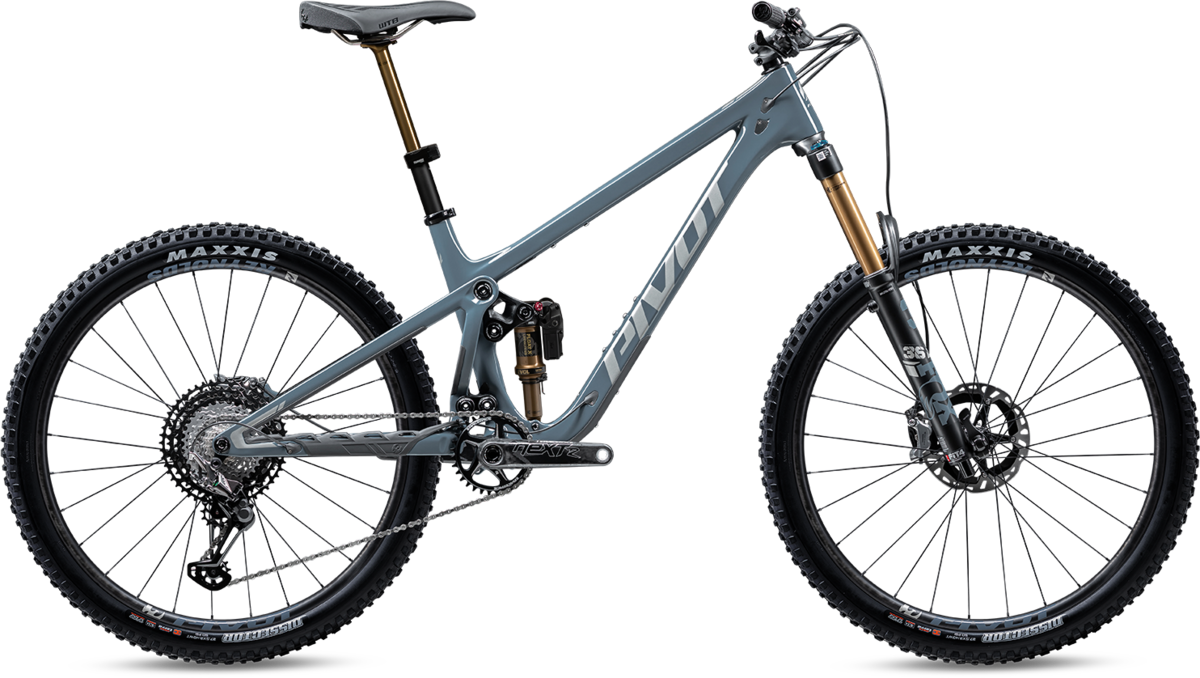

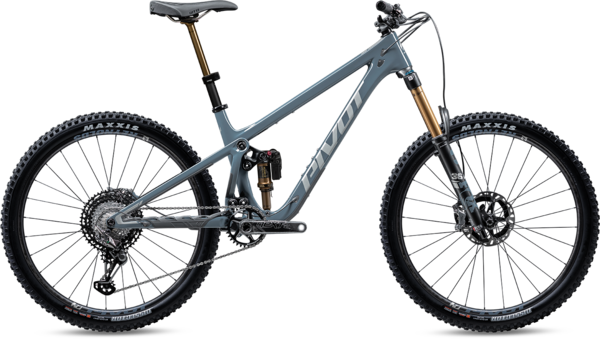

Pivot Cycles Shadowcat Team XTR Neo - Carbon Wheels
Details
Shadowcat? Yes, Shadowcat.
Lithe, agile, sharp, fast and fun, the Shadowcat is a trail-carving expression of blazing speed and feline creative mayhem. Pivot’s latest offering capitalizes on the acceleration and responsiveness of 27.5” wheels and acclaimed dw-link suspension to bring to life a bike that offers transformative capability for riders of every stripe.
Lithe.
A new frame that weighs less than our impressively light Trail 429 frame. Heck, this frame weighs only 45 grams more than our featherlight Mach 4SL. We’re replacing the beloved Mach 5.5 with a 140mm ripper of a bike that weighs less than many dedicated XC machines. Super-low standover; small kittens and playful cats rejoice!
Product Details
- Ultra-Light Hollow Core Carbon Frame
- Class-Leading Strength to Weight Ratio
- Seamlessly Integrated Headset Cups save weight and ensure easy service
- Excellent Standover height for all sizes
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
- 140mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock
- Equipped with a 44mm offset 160mm-travel Fox 36 fork
- Agile and playful 27.5” wheels with tires up to 2.4”
- Long and low modern geometry for a confident ride
- Short 430mm Chainstays for snappy cornering
- Large Water Bottle Clearance on all sizes
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Hassle free full internal routing with Pivot cable port system
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
*Specs may vary from images shown*
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Seat Tube Length (C-T) (cm) | 34.3 | 36.8 | 39.4 | 43.2 |
| Top Tube Length (Eff.) (cm) | 56.9 | 59.5 | 62.7 | 65 |
| Head Tube Length (cm) | 8.5 | 11 | 12 | 13 |
| Head Tube Angle | 65.8° | 65.8° | 65.8° | 65.8° |
| Seat Tube Angle (Eff.) | 76° | 76° | 76° | 76° |
| Chain Stay Length (cm) | 43 | 43 | 43 | 43 |
| Bottom Bracket Height (cm) | 34 | 34 | 34 | 34 |
| Bottom Bracket Drop (cm) | 1.7 | 1.7 | 1.7 | 1.7 |
| Standover Height (cm) | 62.4 | 63.8 | 65.7 | 67.1 |
| Wheelbase (cm) | 114.2 | 117.2 | 120.6 | 123 |
| Stack (cm) | 58.2 | 60.5 | 61.4 | 62.3 |
| Reach (cm) | 41 | 43 | 46 | 48 |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 4’11” – 5’4” |
| Small | 5‘1“ – 5‘8” |
| Medium | 5‘5” – 6’ |
| Large | 5‘8” – 6‘2” |
Specs
| Frame | Shadowcat |
|---|---|
| Fork | Fox Factory 36 27.5", 44mm offset, GRIPX - 160mm |
| Rear Shock | Fox Factory Float X Neo Live |
| Wheels | Reynolds Blacklabel Trail Pro w/ Industry Nine hub, 32mm - 27.5" 15x110 F/12x148 R |
| Tires | Maxxis Dissector 27.5" x 2.4" TR, EXO |
| Brakes | Shimano XT M8120 4-piston |
| Crankset | Race Face Æffect R 32t |
| Shifters | Shimano XT M8100 ISPEC EV 12-Speed |
| Cassette/Freewheel | Shimano XT M8100 10-51t |
| Rear Derailleur | Shimano XTR M9100 SGS 12-Speed |
| Rotors | Shimano XT CenterLock - 180mm |
| Headset | Pivot Precision Sealed Integrated Cartridge |
| Handlebars | Phoenix Team Low Rise Carbon - 760mm (XS-SM) 780mm (MD-LG) |
| Chain | Shimano CN-M8100 12-Speed |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Seatpost | Fox Transfer Neo Factory Series 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG) |
| Saddle | Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL) |
| Pedals | Sold Separately |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Mirage / X-Small / 27.5-inch | 196338082464 | 00SCTV127CXRAL-BLMXSDRPON |
| Blue Mirage / Small / 27.5-inch | 196338082433 | 00SCTV127CXRAL-BLMSMDRPON |
| Blue Mirage / Medium / 27.5-inch | 196338082402 | 00SCTV127CXRAL-BLMMDDRPON |
| Blue Mirage / Large / 27.5-inch | 196338082372 | 00SCTV127CXRAL-BLMLGDRPON |
| Dangerfruit / X-Small / 27.5-inch | 196338082587 | 00SCTV127CXRAL-DFRXSDRPON |
| Dangerfruit / Small / 27.5-inch | 196338082556 | 00SCTV127CXRAL-DFRSMDRPON |
| Dangerfruit / Medium / 27.5-inch | 196338082525 | 00SCTV127CXRAL-DFRMDDRPON |
| Dangerfruit / Large / 27.5-inch | 196338082495 | 00SCTV127CXRAL-DFRLGDRPON |
| Disco Oil Slick / X-Small / 27.5-inch | 196338247795 | 00SCTV127CXRAL-BDKXSDRPON |
| Disco Oil Slick / Small / 27.5-inch | 196338247764 | 00SCTV127CXRAL-BDKSMDRPON |
