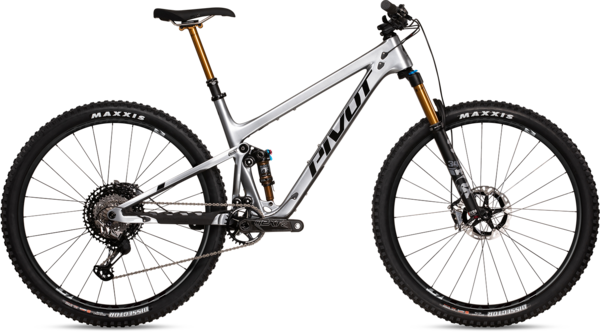

Pivot Cycles Trail 429 Pro X0 AXS (Carbon Wheels)

Pivot Cycles Trail 429 Pro X0 AXS (Carbon Wheels)
  • Color: Silver Metallic
  • Color: Pacific Blue
  • Color: Willow Green
$9,499.00
Color: Silver Metallic
Size: Select size
Please select options Unavailable

Details

All-Mountain Attitude, Race Bike Reflexes.

Evolution of a Classic
This latest iteration of the Trail 429 is evidence of our constant quest for peak performance. We've broadened its capabilities without sacrificing its legendary sharpness: slackening the head angle just enough, increasing the reach, and introducing a flip-chip to allow fine tuning of the geometry toward either the rowdy or racy ends of the spectrum.

All-Star Suspension
Is it possible for a bike to be both razor sharp and butter smooth? Yes. The Trail 429 is proof. In order to wring every drop of potential out of 120mm, we've reworked the already stellar dw-link suspension to provide a more bottomless feel and allow for a greater range of tunability. The Trail 429 combines rocket ship pedaling performance with a plushness that genuinely feels like more travel than the numbers indicate.

Our Strongest, Lightest, Carbon Fiber Chassis
Through continued evolution of our proprietary Hollow Core carbon frame construction, we carved more than 300 grams from the chassis, achieving an XC-race frame weight with incredible all-mountain strength and stiffness, on par with dedicated flyweight race bikes.

Geometry

Sizes:
Low BBXSSMMDLGXL
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 57.2 cm 59.5 cm 62.8 cm 64.4 cm 66.7 cm
C Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
D Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
E Seat Tube Angle (Eff.) 75.5° 75.5° 75.5° 75.5° 75.5°
F Chainstay Length 43 cm 43 cm 43 cm 43 cm 43 cm
G Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm 34.7 cm
H Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm 2.7 cm
I Standover 63.6 cm 66.8 cm 67 cm 68.2 cm 69.6 cm
Wheelbase 112.8 cm 115.2 cm 118.7 cm 120.4 cm 122.9 cm
Reach 41 cm 43 cm 46 cm 47.5 cm 49.5 cm
Stack 58.4 cm 59.3 cm 60.4 cm 60.9 cm 62.1 cm
Sizes:
Lower BBXSSMMDLGXL
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 57.3 cm 59.6 cm 62.9 cm 64.5 cm 66.9 cm
C Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
D Head Tube Angle 66° 66° 66° 66° 66°
E Seat Tube Angle (Eff.) 75° 75° 75° 75° 75°
F Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
G Bottom Bracket Height 34 cm 34 cm 34 cm 34 cm 34 cm
H Bottom Bracket Drop 3.3 cm 3.3 cm 3.3 cm 3.3 cm 3.3 cm
I Standover 63.1 cm 66.2 cm 66.4 cm 67.7 cm 69 cm
Wheelbase 112.9 cm 115.3 cm 118.8 cm 120.5 cm 123 cm
Reach 40.5 cm 42.5 cm 45.5 cm 47 cm 49 cm
Stack 58.8 cm 59.7 cm 60.8 cm 61.3 cm 62.5 cm

Specs not provided by mfg. Call us for details.

Videos

Part Numbers

Option UPC MPN
Silver Metallic / X-Small 196338019231 00TLCV329CXOB--SILXSDRPNN
Silver Metallic / Small 196338019194 00TLCV329CXOB--SILSMDRPNN
Silver Metallic / Medium 196338019170 00TLCV329CXOB--SILMDDRPNN
Silver Metallic / Large 196338019156 00TLCV329CXOB--SILLGDRPNN
Silver Metallic / X-Large 196338019217 00TLCV329CXOB--SILXLDRPNN
Pacific Blue / X-Small 196338018739 00TLCV329CXOB--BLUXSDRPNN
Pacific Blue / Small 196338018692 00TLCV329CXOB--BLUSMDRPNN
Pacific Blue / Medium 196338018678 00TLCV329CXOB--BLUMDDRPNN
Pacific Blue / Large 196338018654 00TLCV329CXOB--BLULGDRPNN
Pacific Blue / X-Large 196338018715 00TLCV329CXOB--BLUXLDRPNN
Willow Green / X-Small 196338121378 00TLCV329CXOB--WGNXSDRPNN
Willow Green / Small 196338121330 00TLCV329CXOB--WGNSMDRPNN
Willow Green / Medium 196338121316 00TLCV329CXOB--WGNMDDRPNN
Willow Green / Large 196338121293 00TLCV329CXOB--WGNLGDRPNN
Willow Green / X-Large 196338121354 00TLCV329CXOB--WGNXLDRPNN
