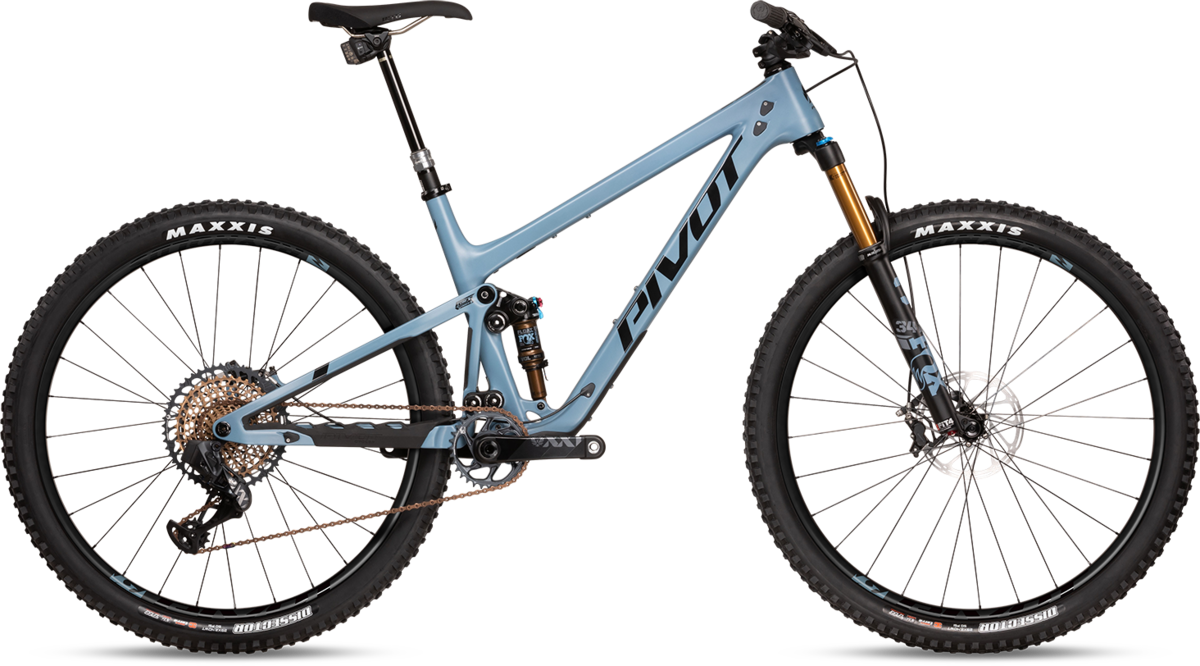

Pivot Cycles Trail 429 Team XX1 AXS

Pivot Cycles Trail 429 Team XX1 AXS
  • Color: Pacific Blue
  • Color: Silver Metallic
  • Color: Willow Green
Color: Pacific Blue
Size: Select size
Please select options Unavailable


The Trail 429 might well be the perfect category defying trail bike. Progressive geometry and super capable suspension give hard charging riders the tools they need to thrive in jumpy and steep terrain. 120mm of travel has never felt this plush or this composed. This very same super-refined dw-link suspension also delivers whip-crack pedal response and acceleration, aided and abetted by the strongest, lightest carbon fiber chassis we've ever developed. The sharp-end of the stick XC capability of this bike is eye-opening, on par with dedicated flyweight race bikes. This is a bike that you can shred with confidence everywhere from 24-hour race courses to untamed high alpine singletrack.

- Refined geometry exemplifies the pinnacle of modern race-to-trail performance
- New, more progressive dw-link prioritizes pedaling efficiency yet still rewards riders with plush, controlled travel
- 120mm rear suspension travel featuring a vertically trunnion mounted high-volume air shock delivers unprecedented comfort and tunability
- Flip chip adjustability allows riders to tailor geometry for either spirited all-round handling or a more progressive and rowdy demeanor
- Hassle-free, full-length, internal cable routing with Pivot's easy to service and ultra-quiet Pivot Cable Port System
- Fits riders between 4'10" and 6'7" with X-Small to X-Large size offerings
- Pivot's full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'11" to 6'7" has a bike that feels perfect and performs at the optimum level for their size
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame


Geometry Chart:
Geometry: Low BB
A- Seat Tube Length 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47.0 cm
BTop Tube Length 57.2 cm 59.5 cm 62.8 cm 64.4 cm 66.7 cm
CHead Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
DHead Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
ESeat Tube Angle 75.5° 75.5° 75.5° 75.5° 75.5°
FChainstay Length 43.0 cm 43.0 cm 43.0 cm 43.0 cm 43.0 cm
GBottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm 34.7 cm
HBottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm 2.7 cm
IStandover 63.6 cm 66.8 cm 67.0 cm 68.2 cm 69.6 cm
JWheelbase 112.8 cm 115.2 cm 118.7 cm 120.4 cm 122.9 cm
Stack 58.4 cm 59.3 cm 60.4 cm 60.9 cm 62.1 cm
Reach 41.0 cm 43.0 cm 46.0 cm 47.5 cm 49.5 cm


Part Numbers

Option UPC MPN
Pacific Blue / X-Small 196338021630 00TLCV329CXXE--BLUXSDRPNN
Pacific Blue / Small 196338021593 00TLCV329CXXE--BLUSMDRPNN
Pacific Blue / Medium 196338021579 00TLCV329CXXE--BLUMDDRPNN
Pacific Blue / Large 196338021555 00TLCV329CXXE--BLULGDRPNN
Pacific Blue / X-Large 196338021616 00TLCV329CXXE--BLUXLDRPNN
Silver Metallic / X-Small 196338022231 00TLCV329CXXE--SILXSDRPNN
Silver Metallic / Small 196338022194 00TLCV329CXXE--SILSMDRPNN
Silver Metallic / Medium 196338022170 00TLCV329CXXE--SILMDDRPNN
Silver Metallic / Large 196338022156 00TLCV329CXXE--SILLGDRPNN
Silver Metallic / X-Large 196338022217 00TLCV329CXXE--SILXLDRPNN
Willow Green / X-Small 196338123075 00TLCV329CXXE--WGNXSDRPNN
Willow Green / Small 196338123037 00TLCV329CXXE--WGNSMDRPNN
Willow Green / Medium 196338123013 00TLCV329CXXE--WGNMDDRPNN
Willow Green / Large 196338122993 00TLCV329CXXE--WGNLGDRPNN
Willow Green / X-Large 196338123051 00TLCV329CXXE--WGNXLDRPNN
