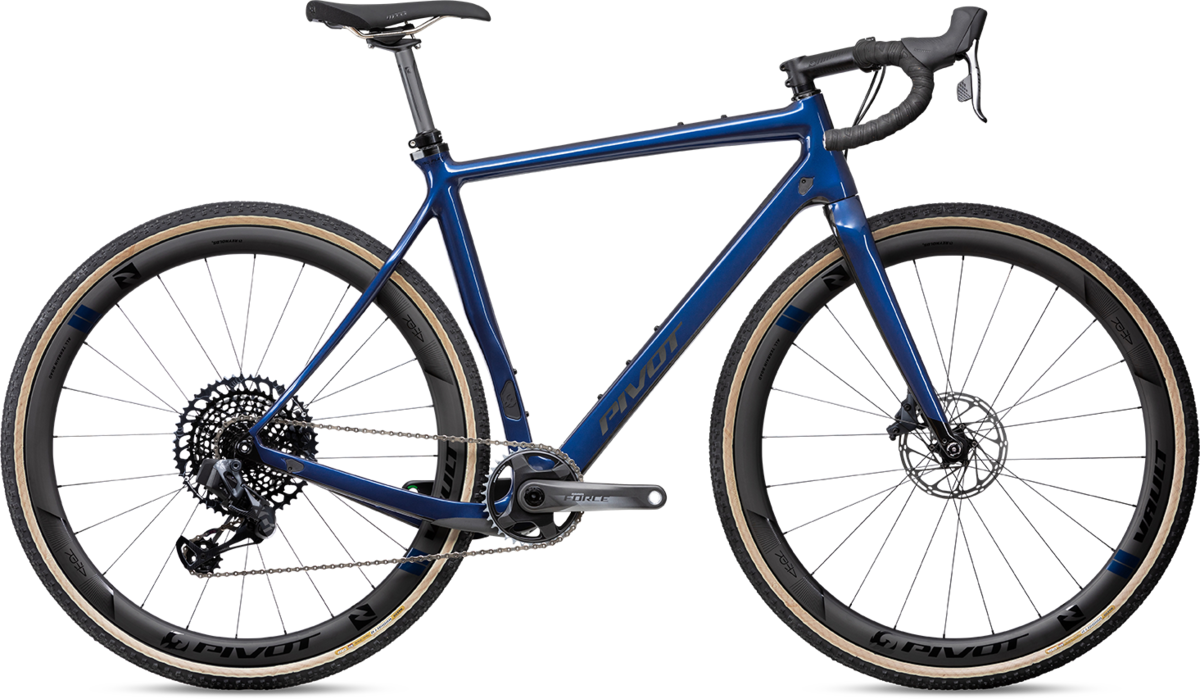

Pivot Cycles Vault Team Force/X01 Wide Range (Alloy Wheels)

Pivot Cycles Vault Team Force/X01 Wide Range (Alloy Wheels)
  • Color: Deep Metallic Blue
  • Color: Firebrick Red
Color: Deep Metallic Blue
Size: Select size
Please select options Unavailable


At the Speed of Imagination.

Endless Drop Bar Possibilities
With generous tire clearance thanks to dual dropped chainstays, the Vault is a tire change away from being ready for any road and any pursuit. From 25c's to high volume 650b, set your tire selection free, and tackle anything from primitive gravel to smooth single track to asphalt, and everything in between.

All-Day, All Terrain Comfort
Patent pending ISO FLEX seat post technology is without equal when it comes to all-day, all-terrain pedaling comfort, and our award-winning gravel bike frames are uniquely ride tuned for compliance. Custom tuned carbon layups and the ISO Flex seat post keep the Vault ride experience stable and smooth for hour after hour, The Pivot Vault truly covers every mile at the Speed of Imagination.

Boundaryless in the PNW
Boundaries recede aboard the Pivot Vault. The Columbia River gorge and the terrain on both the Oregon and Washington sides of the river are rich in geographical history, connecting paved, gravel, and singletrack trails that are rich in opportunity for quintessential gravel exploring.

Geometry Chart:
A Seat Tube Length (C-T) 45.8 cm 52.8 cm 54.8 cm 56.8 cm 58.8 cm
B Top Tube Length 51.5 cm 53.8 cm 56.5 cm 57.8 cm 59 cm
C Head Tube Length 10.5 cm 13 cm 15.5 cm 17 cm 19.5 cm
D Head Tube Angle 70.0° 71.5° 72.0° 72.0° 72.0°
E Seat Tube Angle (Eff.) 74.8° 74.0° 73.5° 73.0° 73.0°
F Chainstay Length 42 cm 42 cm 42 cm 42 cm 42 cm
G Bottom Bracket Drop 7 cm 7 cm 7 cm 7 cm 7 cm
H Standover 70.5 cm 76.6 cm 78.7 cm 80.5 cm 82.5 cm

Specs not provided by mfg. Call us for details.

Part Numbers

Option UPC MPN Store SKU
Deep Metallic Blue / X-Small 196338144315 00VLTV570AFRA--DIBXSSTDHN
Deep Metallic Blue / Small 196338144292 00VLTV570AFRA--DIBSMSTDHN
Deep Metallic Blue / Medium 196338144285 00VLTV570AFRA--DIBMDSTDHN
Deep Metallic Blue / Large 196338144278 00VLTV570AFRA--DIBLGSTDHN
Deep Metallic Blue / X-Large 196338144308 00VLTV570AFRA--DIBXLSTDHN
Firebrick Red / Small 196338144346 00VLTV570AFRA--FBRSMSTDHN
Firebrick Red / Medium 196338144339 00VLTV570AFRA--FBRMDSTDHN 210000005476
Firebrick Red / Large 196338144322 00VLTV570AFRA--FBRLGSTDHN
