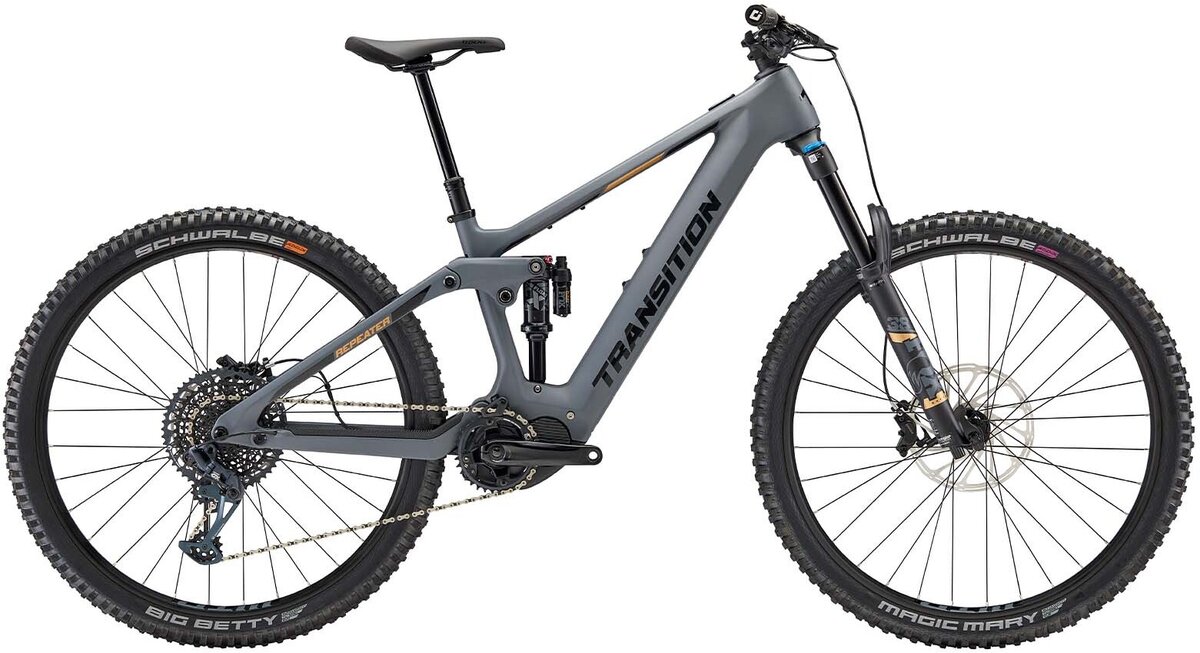

Transition Repeater Carbon GX Mechanical

Transition Repeater Carbon GX Mechanical
  • Color: Gunmetal Grey
  • Color: Mossy Green
$5,899.00
$7,799.00
Color:
Size: Select size
Wheel Size: 29-inch

Details

Buckle up and get ready to charge, the Repeater is down for anything. With 160mm travel, 29 inch wheels, the Shimano EP8 motor system, and a 630w battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.

Sizes:
SMMDLGXL
A. REACH 425 455 480 510
B. STACK 631 631 640 649
C. EFFECTIVE TT LENGTH 559 589 617 650
D. SEAT TUBE LENGTH 375 400 440 470
E. EFFECTIVE ST ANGLE 78.4° 77.9° 77.4° 77.1°
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE 600 660 720 780
ACTUAL ST ANGLE 72.5° 72.5° 72.5° 72.5°
SEAT TUBE OFFSET AT BB 65 65 65 65
F. HEAD TUBE LENGTH 110 110 120 130
G. HEAD TUBE ANGLE 64° 64° 64° 64°
H. CHAINSTAY LENGTH 455 455 455 455
I. WHEELBASE 1221 1251 1280 1315
J. BOTTOM BRACKET DROP 30 30 30 30
K. ESTIMATED BB HEIGHT 340 340 340 340
L. STAND OVER HEIGHT 705 715 720 725
M. FORK OFFSET 44 44 44 44

Part Numbers

Option UPC MPN Store SKU
Gunmetal Grey / Small / 29-inch 769165684448 01.23.11.4751 210000010851
Gunmetal Grey / Medium / 29-inch 769165684462 01.23.11.4753 210000010849
Gunmetal Grey / Large / 29-inch 769165684486 01.23.11.4755 210000010847
Gunmetal Grey / X-Large / 29-inch 769165684509 01.23.11.4757 210000010853
Mossy Green / Small / 29-inch 769165684431 01.23.11.4750 210000010852
Mossy Green / Medium / 29-inch 769165684455 01.23.11.4752 210000010850
Mossy Green / Large / 29-inch 769165684479 01.23.11.4754 210000010848
Mossy Green / X-Large / 29-inch 769165684493 01.23.11.4756 210000010854
