Details
The Hard Hitting Powerhouse
Tackle all the technical terrain you can handle.

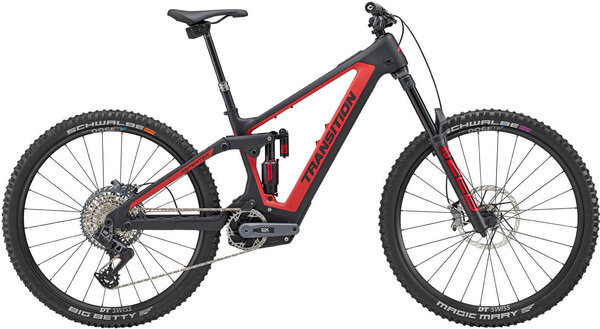

The Repeater Powertrain takes your eMTB experience to a whole new level. This system harmoniously integrates the most complicated moving parts on an eMTB to create a simple, worry-free, and exhilarating ride. With 170mm travel front and rear, user tuneable motor and shifting modes, and wheel size options, the Repeater PT is a groundbreaking eMTB designed to fulfill all of your powered riding dreams. Utilizing the 90nm Eagle Powertrain Motor by Brose, SRAM 720wh battery, SRAM T-Type AXS Transmission, and the SRAM Powertrain brain, the Repeater PT marks a giant leap in the integration of motor and drivetrain, allowing you to give your full attention to enjoying the ride while auto shift handles the rest.
WHY WE LOVE IT
The goal with the Repeater Powertrain is to create the best riding experience possible. That starts with evolving the existing Repeater geometry to create a bike that gives you more confidence and control while utilizing a system that works naturally as an extension of the rider. With Powertrain, the motor, drivetrain and controls all work together, which not only unifies the complicated systems at play on an eMTB, but also unlocks new features that riders can utilize and customize to their preferences.
Right out of the box you'll notice how clean the frame and cockpit are. With only brake cables to manage, just two AXS pod controllers, and a small top tube screen, the Repeater brings a refreshingly simplified approach to your eMTB. The familiar controls of AXS pods allow you to access every feature easily and ergonomically. With the majority of the components working wirelessly, this translates into a much tidier and quieter frame. Coupled with the SRAM Powertrain motor that remains quiet in even the roughest terrain, your focus can remain on the trail and the experience you set out for.
The Eagle Powertrain Brain behind the whole system unlocks many new features to create a bike that simply allows you to ride to the best of your ability with maximum enjoyment. Features such as auto shift and coast shift become just another tool in your toolbox available at your fingertips. These modes have us ascending smoother and descending safer and with more confidence. Whether you are trying to clean a techy climb or get a pedal stroke out of a turn, knowing you're in the right gear gives you confidence in each pedal stroke. It's less about having a fully automatic system, and more about the system assisting you when you need it most.
As riders ourselves, we understand that the ride experience is only a portion of the buying decision process, and that warranty, customer service and support down the road are extremely important. We cover the frame for life, while support for the Powertrain system, drivetrain and suspension are all covered by SRAM, another industry leader in customer service. No matter where you are, we got your back.
SM | MD | LG | XL | |
---|---|---|---|---|
A. REACH | 425 | 455 | 480 | 510 |
B. STACK | 630 | 635 | 643 | 652 |
C. EFFECTIVE TT LENGTH | 551 | 584 | 615 | 654 |
D. SEAT TUBE LENGTH | 380 | 400 | 440 | 470 |
E. EFFECTIVE ST ANGLE | 79.2° | 78.5° | 78.2° | 77.5° |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 |
ACTUAL ST ANGLE | 72° | 72° | 72° | 72° |
SEAT TUBE OFFSET AT BB | 79 | 79 | 79 | 79 |
F. HEAD TUBE LENGTH | 110 | 115 | 125 | 135 |
G. HEAD TUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
H. CHAINSTAY LENGTH | 455 | 455 | 455 | 455 |
I. WHEELBASE | 1230 | 1262 | 1292 | 1326 |
J. BOTTOM BRACKET DROP | 25 | 25 | 25 | 25 |
K. ESTIMATED BB HEIGHT | 345 | 345 | 345 | 345 |
L. STAND OVER HEIGHT | 710 | 720 | 730 | 740 |
M. FORK OFFSET | 44 | 44 | 44 | 44 |
Specs
Frame | Repeater PT Carbon 170mm |
---|---|
Fork | Rockshox ZEB Select (170mm) |
Rear Shock | Rockshox Vivid Select+ (205x65mm) |
Wheels | 29" |
Rims | DT Swiss H 1900 Spline |
Hubs | DT Swiss Hybrid 370 |
Spokes | DT Swiss Hybrid 1 |
Tires |
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4) Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4) |
Crankset | SRAM GX Eagle E-MTB (160mm) |
Chainrings | SRAM XX T-Type Direct Mount 34t |
Shifters | SRAM POD Bridge MMX |
Rear Derailleur | SRAM GX AXS Eagle Transmission |
Cassette/Freewheel | SRAM XS 1275 T-Type (10-52t) |
Chain | SRAM GX Eagle Transmission |
Brakes | SRAM Code Bronze Stealth |
Rotors | SRAM HS2 (220mm) |
Handlebars | ANVL Mandrel Alloy SM(800x20) MD/LG(800x30) XL(800x40) |
Tape/Grips | ODI Elite Flow Lock-On |
Stem | ANVL Swage (40mm) |
Headset | FSA NO.55R/44 |
Seatpost | Rockshox Reverb AXS SM(150mm) MD/LG/XL(170mm) |
Saddle | SDG Bel Air 3 |
Accessories & Extras | OneUp Components EDC Lite Tool, SRAM Eagle Powertrain Charger, SRAM AXS Battery Charger, Tubeless Valves & Sealant |
Motor | SRAM Eagle Powertrain (90nm) |
Battery | SRAM Eagle Powertrain Full-Size (720wh) |
Controller/Display | SRAM Eagle Powertrain AXS Bridge |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Bonfire Red / Small / 29-inch | 769165686121 | 01.24.11.4781 | 210000010688 |
Bonfire Red / Medium / 29-inch | 769165686145 | 01.24.11.4783 | 210000010686 |
Bonfire Red / Large / 29-inch | 769165686169 | 01.24.11.4785 | 210000010684 |
Bonfire Red / X-Large / 29-inch | 769165686183 | 01.24.11.4787 | 210000010690 |
Graphite Grey / Small / 29-inch | 769165686114 | 01.24.11.4780 | 210000010689 |
Graphite Grey / Medium / 29-inch | 769165686138 | 01.24.11.4782 | 210000010687 |
Graphite Grey / Large / 29-inch | 769165686152 | 01.24.11.4784 | 210000010685 |
Graphite Grey / X-Large / 29-inch | 769165686176 | 01.24.11.4786 | 210000010691 |
