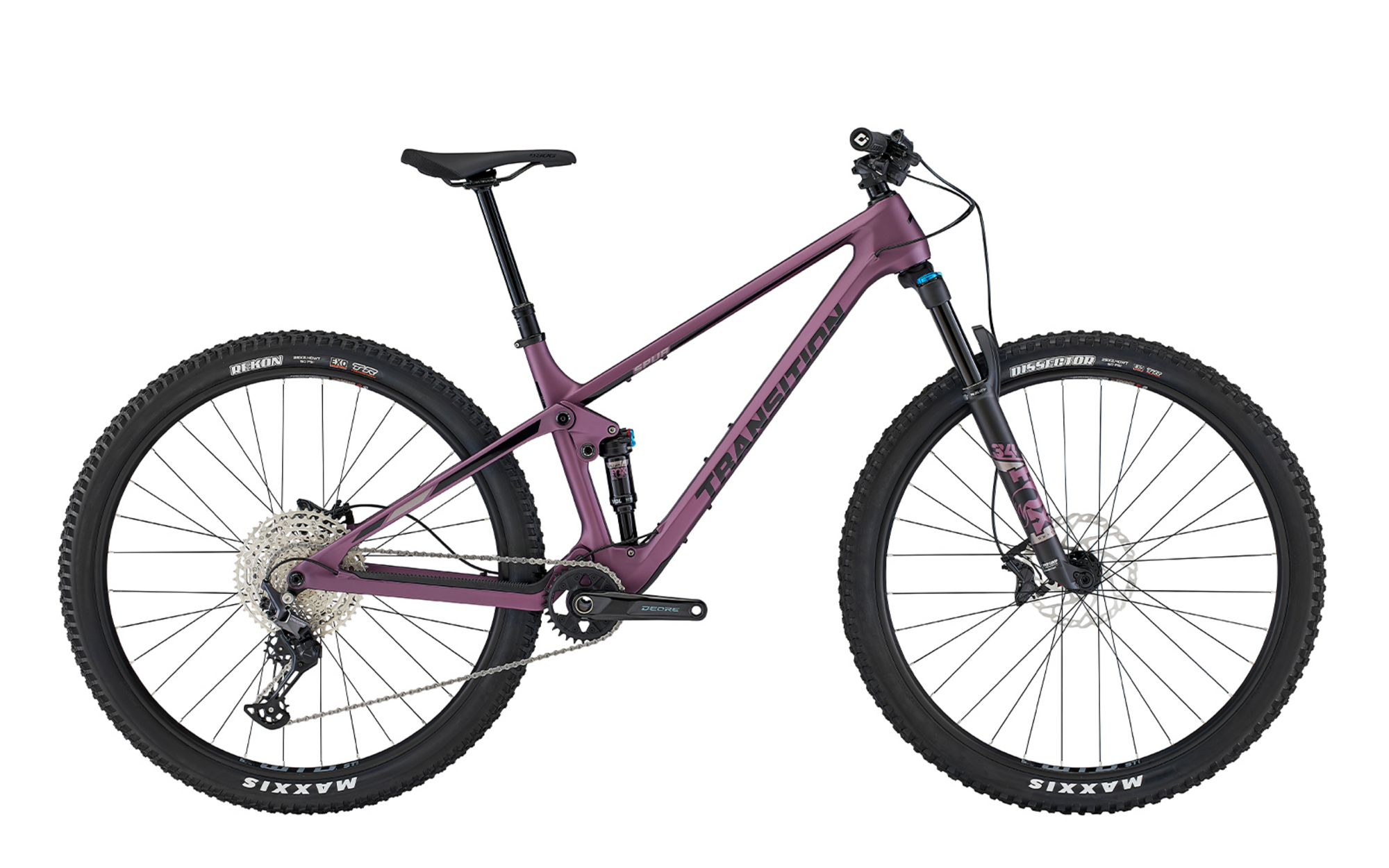

Transition Spur Deore

Transition Spur Deore
  • Color: Blackberry
  • Color: Hazy Grey
$4,799.00
Color:
Size: Select size
Wheel Size: 29-inch

Details

THE ALL-COUNTRY BIKE
Effortlessly explore, seek, and pursue the mountain in ways you never imagined.

The Spur provides a sense of connection to the trail as if it were an extension of your own body. Allowing you to be fast and efficient with an anti-gravity feel and laser-pointer precision. It begs you to climb more, go farther, and descend anything you may encounter along the way. You're rewarded with free speed as every pump and pedal stroke propels you forward while our SBG Geometry makes sure you're composed for every root, rock or switchback. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster.

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGE
REACH (mm)425 455480510
STACK (mm)600 610619632
EFFECTIVE TT LENGTH (mm)569 602630664
SEAT TUBE LENGTH (mm)380 410460500
EFFECTIVE ST ANGLE 76.7° 76.2°75.9°75.6°
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE600 660720780
ACTUAL ST ANGLE72° 72°72°72°
SEAT TUBE OFFSET AT BB (mm)51 515151
HEAD TUBE LENGTH (mm)100 110120135
HEAD TUBE ANGLE66.0° 66.0°66.0°66.0°
CHAINSTAY LENGTH (mm)435 435435435
WHEELBASE (mm)1156 119012191255
BOTTOM BRACKET DROP (mm)40 404040
ESTIMATED BB HEIGHT (mm)335 335335335
STAND OVER HEIGHT (mm)662 667670677
FORK OFFSET (mm)44 444444
Sizes:
FRAME SIZERIDER HEIGHT (cm)RIDER HEIGHT (in)
SMALL153 - 170 5'0" - 5'7"
MEDIUM163 - 183 5'4" - 6'0"
LARGE173 - 190 5'8" - 6'3"
X-LARGE183 - 200 6'0" - 6'7"

Specs

Pedals Sold Separately
Fork Fox Float 34 Rhythm
Hubs Pillar Double Butted
Rims WTB ST i27
Stem RaceFace Aeffect R (40mm)
Chain Shimano Deore M6100
Frame Spur Carbon 120mm
Tires Front: Maxxis Dissector 3C EXO (2.4); Rear: Maxxis Rekon 3C EXO (2.4)
Brakes Shimano Deore M6120 4 Piston
Rotors Shimano RT66 (180mm)
Saddle SDG Bel Air 3
Spokes Pillar Double Butted
Headset FSA No.57E
Crankset Shimano Deore M6100
Seatpost OneUp Dropper Post SM(150mm) MD(180mm) LG(210mm) XL(240mm)"
Shifters Shimano Deore M6100 iSpec EV
Handlebars RaceFace Aeffect R SM/MD/LG/XL(780x20mm)
Rear Shock Fox DPS Performance (190x45mm)
Tape/Grips ODI Elite Flow Lock-On
Rear Derailleur Shimano Deore M6100 SGS 12sp
Cassette/Freewheel Shimano Deore M6100 (10-51t)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blackberry / Small / 29-inch 769165686367 01.25.11.4471 210000010664
Blackberry / Medium / 29-inch 769165686381 01.25.11.4473 210000010662
Blackberry / Large / 29-inch 769165686404 01.25.11.4475 210000010660
Blackberry / X-Large / 29-inch 769165686428 01.25.11.4477 210000010666
Hazy Grey / Small / 29-inch 769165686350 01.25.11.4470 210000010665
Hazy Grey / Medium / 29-inch 769165686374 01.25.11.4472 210000010663
Hazy Grey / Large / 29-inch 769165686398 01.25.11.4474 210000010661
Hazy Grey / X-Large / 29-inch 769165686411 01.25.11.4476 210000010667
