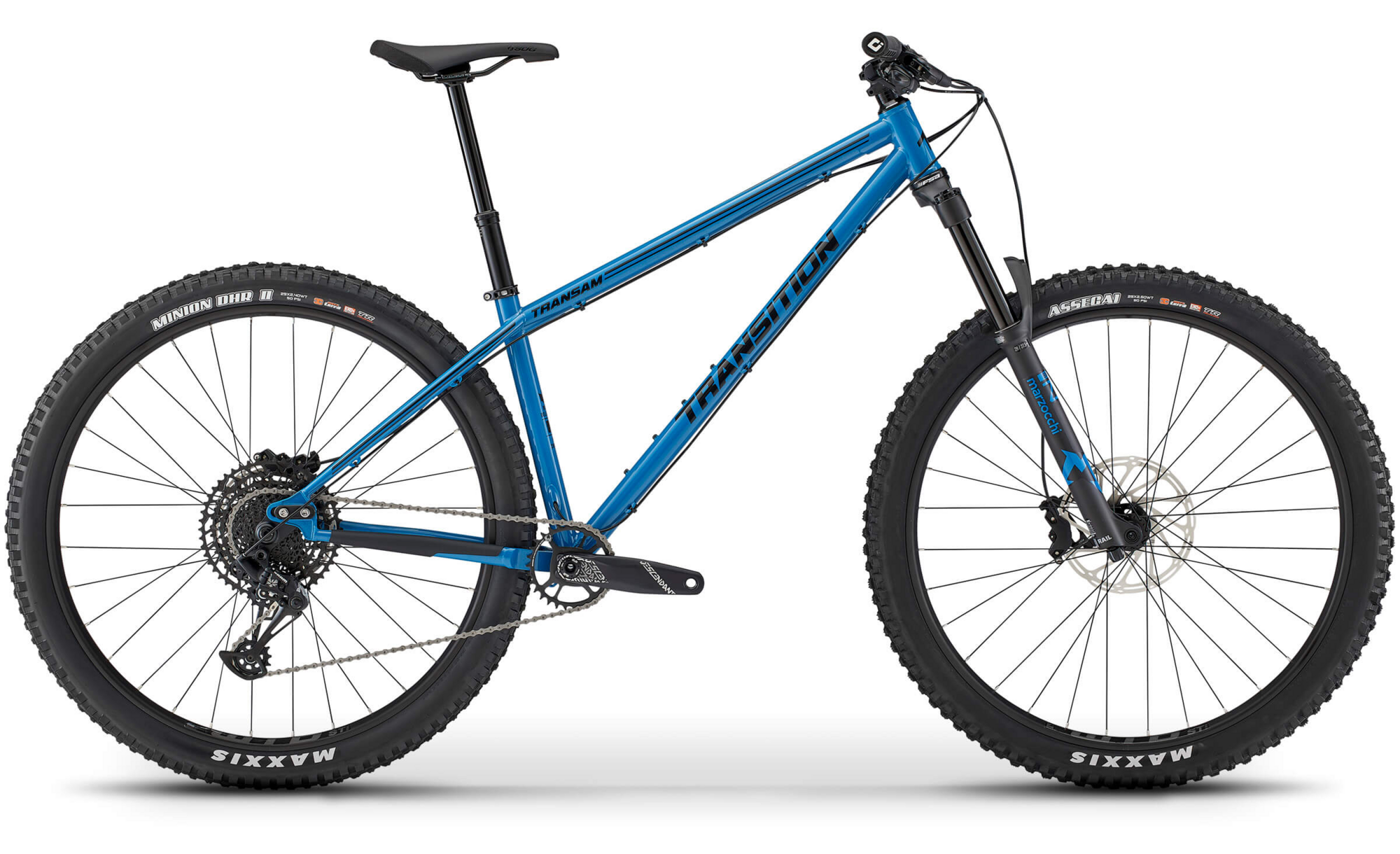

Transition TransAM

Transition TransAM
  • Color: Cascade Blue
  • Color: Chrome
$2,599.00 - $2,699.00
Color:
Size: Select size
Wheel Size: 29-inch

Details

The Passionate Pioneer
It will steel your heart.

The classic TransAM returns! After a seven-year hiatus, the reliable trail-shredding hardtail is back in the lineup for a limited time. Now with modern geometry, dual 29-inch wheels, a capable build spec or frameset options, and two classic color schemes, this will be one to hang on to and pass down for many generations. The updated geo encourages hard-charging but rewards thoughtful line choice. It orchestrates a fast-paced ballet through the landscape of your choosing. The new TransAM is ready for the core rider looking to get back to their roots.

SIMPLE IS FUN
For the rider who loves refined simplicity with the feeling of the wind in their face as they rip beautiful ribbons of terra firma in both directions, we give you the TransAM. The TransAM brings a feeling of nostalgia and reminds its rider of that first taste of freedom when they were young.

For those that watch The Wizard of Oz while listening to the dark side of the moon. For the Off-Road Cyclist. For the person who doesn't always have a plan but knows that whatever lies ahead will be a most excellent adventure. The TransAM pays homage to the free spirits of yesteryear who found rolling through the mountains on two wheels to be the best way to experience life.

LESS IS MORE
Tech keeps getting more complicated, the list of features gets longer, and the number of batteries keeps increasing. While we too are a bunch of bike nerds, excited about the latest and greatest, at our core we are mountain bikers who simply care about good dirt and good company. The new TransAM has no batteries, no motor, no apps, just a Chromoly frame that'll last a lifetime. In contrast to the times, we wanted to resurrect a bike that was clean and simple. With just enough updates and features like adjustable sliding dropouts, a UDH, and options for different wheel sizes, you can customize your bike to fit your style. Get the complete or the frame, either way, get out there and leave the fuss behind.

Sizes:
SMMDLGXL
A.REACH 430 460 485 510
B.STACK 641 641 646 655
C.EFFECTIVE TT LENGTH 584 614 640 667
D.SEAT TUBE LENGTH 370 400 430 460
E.EFFECTIVE ST ANGLE 76.5° 76.5° 76.5° 76.5°
F.HEAD TUBE LENGTH 105 105 110 120
G.HEAD TUBE ANGLE 64.0° 64.0° 64.0° 64.0°
H.CHAINSTAY LENGTH 425-437 425-437 425-437 425-437
I.WHEELBASE
(Based on 425mm Chainstay Setting)
1187 1219 1246 1276
J.BOTTOM BRACKET DROP 50 50 50 50
K.ESTIMATED BB HEIGHT 320 320 320 320
L.STAND OVER HEIGHT 662 667 670 677
M.FORK OFFSET 44 44 44 44
N.SEAT POST INSERTION 250 280 320 350

Specs

Fork Marzocchi Z2 (150mm)
Hubs Novatech D791SB/D902SB
Rims WTB ST i30
Stem RaceFace Aeffect R (40mm)
Chain SRAM NX Eagle
Frame TransAM Chromoly Steel
Tires Front: Maxxis Assegai 3C EXO+ (2.5)
Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
Brakes SRAM DB8
Rotors SRAM Centerline (200/180mm)
Saddle SDG Bel Air 3
Spokes Pillar Double Butted
Headset FSA No.10/7B/44
Crankset SRAM Descendent 6k DUB (170mm x 30t)
Seatpost OneUp Dropper Post SM(150mm) MD(180mm) LG/XL(210mm)
Shifters SRAM NX Eagle MMX
Handlebars RaceFace Chester 35 SM/MD(780x20), LG/XL(780x35)
Tape/Grips ODI Elite Flow Lock-On
Rear Derailleur SRAM NX Eagle
Accessories & Extras Tubeless Valves & Sealant
Cassette/Freewheel SRAM PG 1230 (11-50t)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Cascade Blue / Small / 29-inch 769165684523 01.24.11.1711 210000010886
Cascade Blue / X-Large / 29-inch 769165684585 01.24.11.1717 210000010888
Cascade Blue / Medium / 29-inch 769165684547 01.24.11.1713 210000010884
Chrome / Large / 29-inch 769165684554 01.24.11.1714 210000010883
Chrome / X-Large / 29-inch 769165684578 01.24.11.1716 210000010889
Chrome / Medium / 29-inch 769165684530 01.24.11.1712 210000010885
Chrome / Small / 29-inch 769165684516 01.24.11.1710 210000010887
Cascade Blue / Large / 29-inch 769165684561 01.24.11.1715 210000010882
