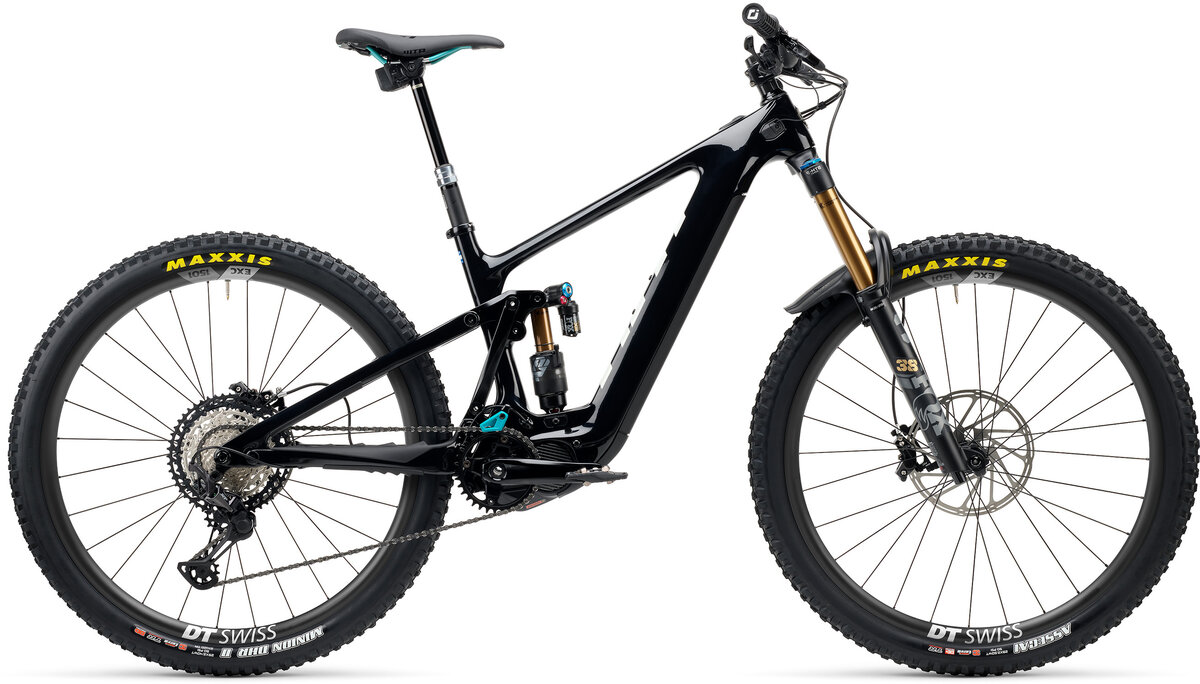

Yeti Cycles 160E T1 DT Swiss EXC 1501 Carbon Wheelset

Yeti Cycles 160E T1 DT Swiss EXC 1501 Carbon Wheelset
  • Color: Black
  • Color: Rhino
  • Color: Turquoise
$14,800.00
Color:
Size: Select size
Please select options Unavailable

Details

We don't party until the race is over. So we took our time to design an e-MTB the way a Yeti e-MTB has to be designed: ready to toe the line at EWS-E races. Meet the 160E: the world's first race specific e-MTB.

Geometry Chart:
SizeSmallMediumLargeX-Large
Wheel Size (IN) 29 29 29 29
Reach (mm) 428 458 478 503
Top Tube Length [Effective] (mm) 561 592 614 642
Stack (mm) 618 621 626 636
Head Tube Length (mm) 95 98 104 115
Seat Tube Length (mm) 325 356 396 441
Seat Tube Angle [Effective] 77.8° 77.8° 77.8° 77.7°
Seat Tube Angle [Actual] 72.4° 72.4° 72.4° 72.4°
Head Tube Angle 64.3° 64.3° 64.3° 64.3°
BB Height [Estimated] (mm) 351 351 351 351
Front Center (mm) 764 795 818 848
Chainstay Length (mm) 446 446 446 446
Wheelbase (mm) 1210 1241 1264 1294
Standover (mm) 756 756 756 755
Fork [Axle-To-Crown] (mm) 588 588 588 588
Fork Travel (mm) 170 170 170 170
Vertical Fork Travel (mm) 153 153 153 153
Fork Offset (mm) 44 44 44 44

Specs

Frame TURQ series carbon
Fork FOX FACTORY 38 GRIP 2/170MM E-Tune
Rear Shock FOX FACTORY FLOAT X2
Wheels DT SWISS EXC 1501
Tires MAXXIS ASSEGAI 2.5 EXO+ / MAXXIS MINION DHR II 2.4 DD
Crankset SHIMANO EM9000 160MM
Shifters SHIMANO XT
Rear Derailleur SHIMANO XT
Cassette/Freewheel SHIMANO XT 10-51
Chain SHIMANO XT
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 220/SRAM CENTERLINE 220
Handlebars YETI CARBON 35X800MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 110 INTEGRATED
Seatpost SRAM REVERB AXS 31.6MM SM: 150MM, MD-XL: 170MM
Saddle SILVERADO CUSTOM
Motor SHIMANO EP800
Battery SHIMANO 630Wh INTERNAL BATTERY
Controller/Display SHIMANO EM800
Charger SHIMANO E6002

* Subject to change without notice.

Part Numbers

Option MPN
Black / Small B23160ESMPBAX2T0187W0
Black / Medium B23160EMDPBAX2T0187W0
Black / Large B23160ELGPBAX2T0187W0
Black / X-Large B23160EXLPBAX2T0187W0
Rhino / Small B23160ESMPRIX2T0187W0
Rhino / Medium B23160EMDPRIX2T0187W0
Rhino / Large B23160ELGPRIX2T0187W0
Rhino / X-Large B23160EXLPRIX2T0187W0
Turquoise / Small B23160ESMPTUX2T0187W0
Turquoise / Medium B23160EMDPTUX2T0187W0
Turquoise / Large B23160ELGPTUX2T0187W0
Turquoise / X-Large B23160EXLPTUX2T0187W0
