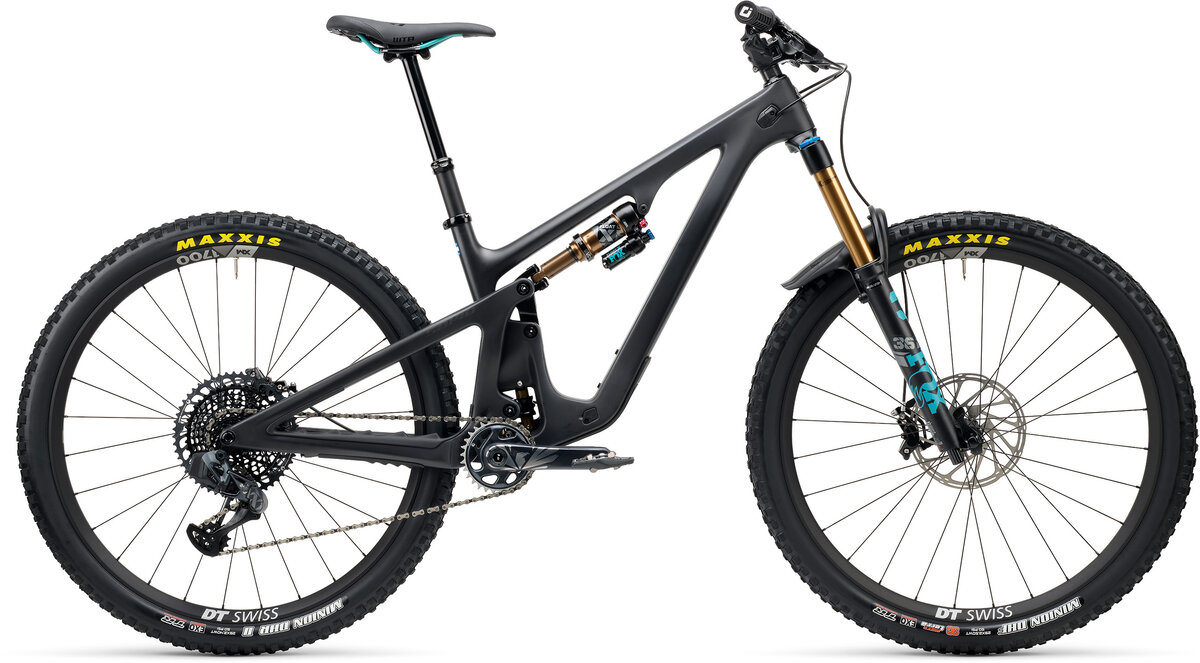

Yeti Cycles SB140 29 LRT3

Yeti Cycles SB140 29 LRT3
  • Color: Raw Carbon
  • Color: Sage
  • Color: Sangria
  • Color: Turquoise
$10,200.00
Color: Raw Carbon
Size: Select size
Please select options Unavailable

Details

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

Geometry Chart:
SizeX-SmallSmallMediumLargeX-Large
Wheel Size (IN) 27.5 27.5 27.5 27.5 27.5
Reach (mm) 401 426 456 476 501
Top Tube Length [Effective] (mm) 539 568 600 623 651
Stack (mm) 585 598 603 613 623
Head Tube Length (mm) 96 110 115 126 137
Seat Tube Length (mm) 355 380 410 450 495
Seat Tube Angle [Effective] (mm) 76.7° 76.6° 76.6° 76.6° 76.5°
Seat Tube Angle [Actual] (mm) 73.1° 73.1° 73.1° 73.1° 73.2°
Head Tube Angle (mm) 64.6° 64.6° 64.6° 64.6° 64.7°
BB Height [Estimated] (mm) 343 343 343 343 343
Front Center (mm) 715 738 778 803 833
Chainstay Length (mm) 433 433 433 433 433
Wheelbase (mm) 1148 1179 1211 1236 1266
Standover (mm) 700 711 713 716 718
Fork [Axle-To-Crown] (mm) 558 558 558 558 558
Fork Travel (mm) 160 160 160 160 160
Vertical Fork Travel (mm) 145 145 145 145 145
Fork Offset (mm) 37 37 37 37 37

Specs

Frame TURQ series carbon
Fork FOX FACTORY 36 GRIP 2/160MM
Rear Shock FOX FACTORY FLOAT X
Wheels DT SWISS XM1700 30MM
Tires MAXXIS MINION DHF 2.5 EXO / MAXXIS MINION DHR II 2.4 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM X1 EAGLE 30T 170MM
Shifters SRAM EAGLE AXS
Rear Derailleur SRAM XX1 EAGLE AXS
Cassette/Freewheel SRAM X01 EAGLE 1295 10-52
Chain SRAM GX EAGLE
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option MPN
Raw Carbon / Small B23149TSMRGDFXTA76600
Raw Carbon / Medium B23149TMDRGDFXTA76600
Raw Carbon / Large B23149TLGRGDFXTA76600
Raw Carbon / X-Large B23149TXLRGDFXTA76600
Raw Carbon / XX-Large B23149TXXRGDFXTA76600
Sage / Small B23149TSMPSGFXTA76600
Sage / Medium B23149TMDPSGFXTA76600
Sage / Large B23149TLGPSGFXTA76600
Sage / X-Large B23149TXLPSGFXTA76600
Sage / XX-Large B23149TXXPSGFXTA76600
Sangria / Small B23149TSMPSAFXTA76600
Sangria / Medium B23149TMDPSAFXTA76600
Sangria / Large B23149TLGPSAFXTA76600
Sangria / X-Large B23149TXLPSAFXTA76600
Sangria / XX-Large B23149TXXPSAFXTA76600
Turquoise / Small B23149TSMPTUFXTA76600
Turquoise / Medium B23149TMDPTUFXTA76600
Turquoise / Large B23149TLGPTUFXTA76600
Turquoise / X-Large B23149TXLPTUFXTA76600
Turquoise / XX-Large B23149TXXPTUFXTA76600
